SFI-300-3/4 | Sight flow indicator | 3/4" body | 4.063" L x 2.750" D x 2.563" H (103 x 70 x 65 mm) | 2.6 lb (1.2 kg). | Dwyer Instruments

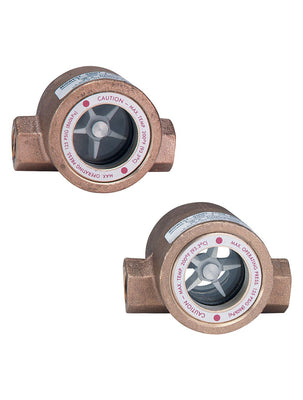

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SFI-300-3/4

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments SFI-300-3/4 Documents

Series SFI-100 & SFI-300 Catalog Page More Info

Overview

Details for SFI-300-3/4

Sensitive, Accurate Flow Measurement: Dwyer Instruments SFI-300-3/4 3/4" NPT DblWindow Brnz FlowIndThe Dwyer Instruments SFI-300-3/4 is a high-precision flow indicator designed to provide accurate and reliable flow measurement in industrial applications. Featuring a 3/4" NPT connection, this flow indicator is ideal for monitoring the flow of liquids and gases.Built to Last: Constructed with durable bronze materials, the SFI-300-3/4 ensures longevity and resistance to corrosion, making it suitable for harsh industrial environments.Double-Window Design: The unique double-window design offers excellent visibility, allowing for easy and precise flow readings from both sides of the indicator.Sensitive and Accurate: The SFI-300-3/4 incorporates a sensitive bi-directional flow element that provides accurate flow readings, even for low flow rates. Its high accuracy makes it ideal for critical applications where precise flow measurement is essential.Versatile Applications: The Dwyer Instruments SFI-300-3/4 is suitable for a wide range of industrial applications, including:Monitoring flow rates in pipelines and process linesVerifying flow performance of pumps and other flow-related equipmentTroubleshooting and diagnosing flow issuesEnsuring optimal flow conditionsShop our HVAC supply store for the best prices and fast shipping on the Dwyer Instruments SFI-300-3/4 Flow Indicator. Upgrade your flow measurement capabilities today!

SERIES SFI-100 & SFI-300 MIDWEST SIGHT FLOW INDICATOR

Inexpensive Protection for Expensive Equipment and Systems

Series 100 and 300 Sight Flow Indicators are manufactured of quality materials and safety tested to assure long, dependable service at economical prices. The 100 and 300 Series offer threaded process connections, viewing windows, and bodies of brass or 316 SS. The 100 type has a single window with a rotating impeller, the 300 type has a double window with a rotating impeller, the 350 type has a double window with no moving indicator, and the 360 type has a double window with a flapper. All the types feature a removable window for easy service and replacement of wearing parts.

California Residents: Click Here for Proposition 65 WARNING.

Specifications

Series: SFI-100 & SFI-300 MIDWEST SIGHT FLOW INDICATOR
Category/Type: Flow
Type: Sight Flow Indicators
Series: SFI-100 & SFI-300 MIDWEST SIGHT FLOW INDICATOR
Service: Compatible gases and liquids.
Wetted Materials: Window: tempered glass; Body: bronze or 316 SS; Gasket: Buna-N; fluoroelastomer or PTFE; Indicator: ABS or 316 SS impeller (100 and 300); 304 SS or 316 SS flapper (360).
Temperature Limit: 200°F (93°C); 120°F (48°C) on W2 option; 170°F (77°C) on I1 option.
Pressure Limit: 125 psig (8.62 bar); 150 psig (10.34 bar) on "MP" Models.
Connections: Threaded.
