SFI-300-2 | Sight flow indicator | 2" body | 5.500" L x 3.688" D x 4.063" H (140 x 93 x 103 mm) | 7.0 lb (3.2 kg). | Dwyer Instruments
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SFI-300-2
Documents and manuals
Dwyer Instruments SFI-300-2 Documents
Overview
Details for SFI-300-2

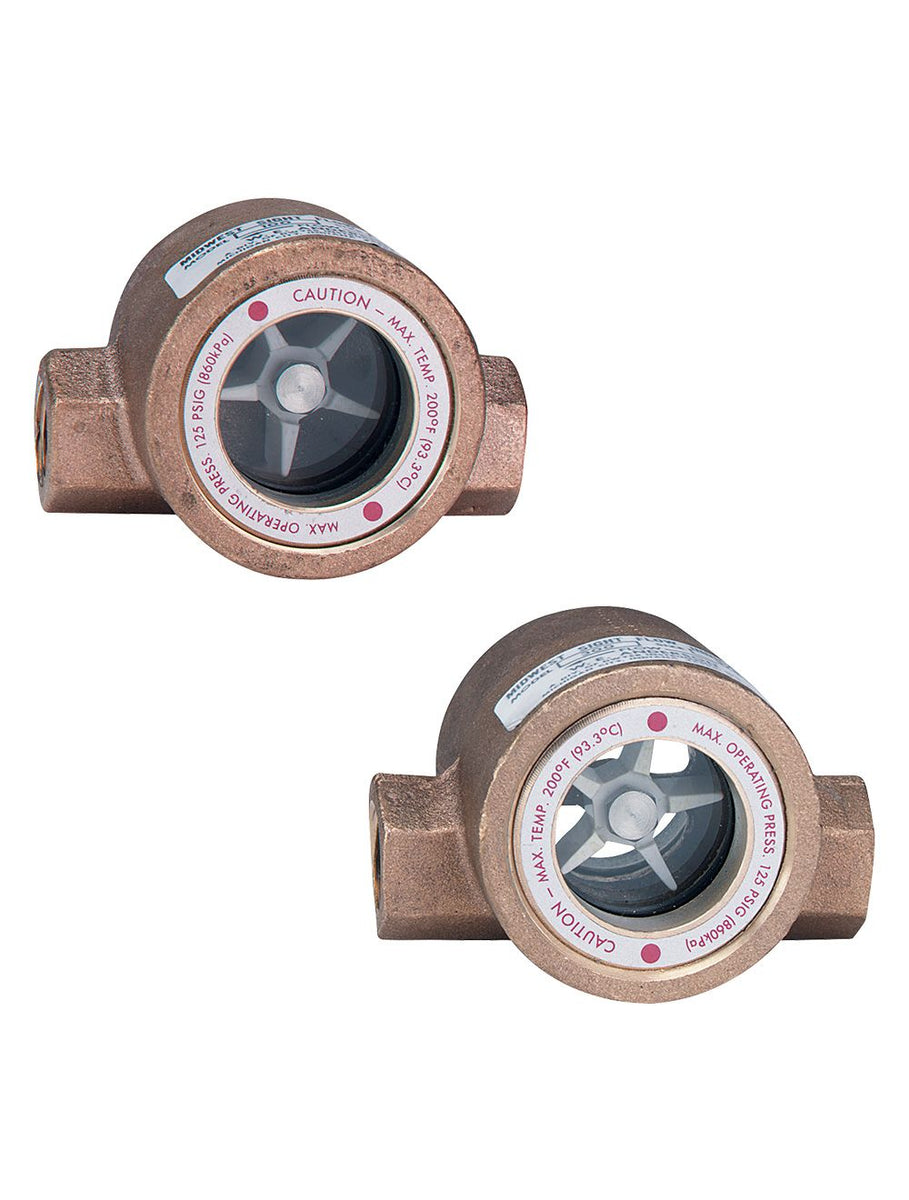

SFI-300-2 2" Dual-Window Bronze Flow Indicator by Dwyer Instruments
The Dwyer Instruments SFI-300-2 Flow Indicator is a durable and reliable device designed for monitoring flow rates in industrial applications. This 2-inch dual-window flow indicator is constructed of bronze for enhanced corrosion resistance and durability in harsh environments.
Key Features:
* 2-inch pipe size
* Dual windows for clear flow visualization
* Bronze construction for corrosion resistance
* Suitable for liquid or gas flow applications
* Easy installation and maintenance
Benefits:
* The bronze construction ensures long-lasting performance even in demanding conditions.
* The dual windows provide a clear and unobstructed view of the flow rate, making it easy to monitor and adjust as needed.
* The flow indicator can be used for both liquid and gas flow applications, offering versatility.
* Its compact design simplifies installation and maintenance, minimizing downtime.
Applications:
The SFI-300-2 flow indicator is ideal for various industrial applications, including:
* Process flow monitoring
* Chemical processing
* Power generation
* Water treatment
Shop our HVAC supply store for the best prices and fast shipping on all your industrial supply needs!
SERIES SFI-100 & SFI-300 MIDWEST SIGHT FLOW INDICATOR
Inexpensive Protection for Expensive Equipment and Systems
Series 100 and 300 Sight Flow Indicators are manufactured of quality materials and safety tested to assure long, dependable service at economical prices. The 100 and 300 Series offer threaded process connections, viewing windows, and bodies of brass or 316 SS. The 100 type has a single window with a rotating impeller, the 300 type has a double window with a rotating impeller, the 350 type has a double window with no moving indicator, and the 360 type has a double window with a flapper. All the types feature a removable window for easy service and replacement of wearing parts.
California Residents: Click Here for Proposition 65 WARNING.
Specifications
- Series
- SFI-100 & SFI-300 MIDWEST SIGHT FLOW INDICATOR
- Category/Type
- Flow
- Type
- Sight Flow Indicators
- Series
- SFI-100 & SFI-300 MIDWEST SIGHT FLOW INDICATOR
- Service
- Compatible gases and liquids.
- Wetted Materials
- Window: tempered glass; Body: bronze or 316 SS; Gasket: Buna-N; fluoroelastomer or PTFE; Indicator: ABS or 316 SS impeller (100 and 300); 304 SS or 316 SS flapper (360).
- Temperature Limit
- 200°F (93°C); 120°F (48°C) on W2 option; 170°F (77°C) on I1 option.
- Pressure Limit
- 125 psig (8.62 bar); 150 psig (10.34 bar) on "MP" Models.
- Connections
- Threaded.
