SFI-300-1 1/2 | Sight flow indicator | 1-1/2" body | 5.500" L x 3.688" D x 4.063" H (140 x 93 x 103 mm) | 7.0 lb (3.2 kg). | Dwyer Instruments

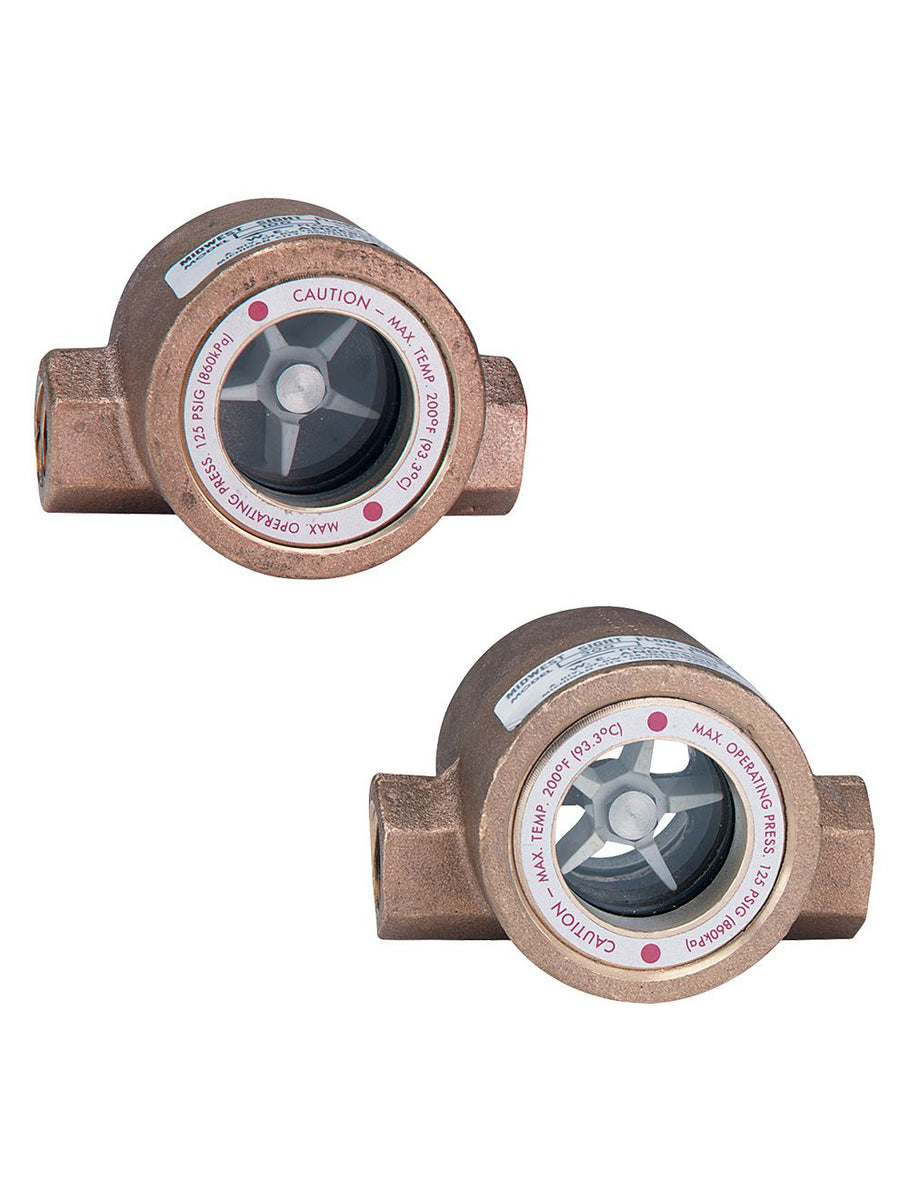

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SFI-300-1 1/2

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments SFI-300-1 1/2 Documents

Series SFI-100 & SFI-300 Catalog Page More Info

Overview

Details for SFI-300-1 1/2

Dwyer Instruments SFI-300-1 1/2" Double Window Bronze Flow Indicator Dwyer Instruments SFI-300-1 is a 1.5" double window bronze flow indicator. It is designed to provide a visual indication of liquid flow in pipes or tubing systems. The SFI-300-1 is made of durable bronze and has a maximum pressure rating of 150 psi. It is easy to install and maintain, and is ideal for use in a variety of industrial applications. Key Features: * 1.5" diameter * Double window design * Bronze construction * Maximum pressure rating of 150 psi * Easy to install and maintain Benefits: * Provides a visual indication of liquid flow * Can be used in a variety of industrial applications * Durable and reliable Applications: * Monitoring flow rates of liquids in pipes or tubing systems * Troubleshooting flow problems * Verifying flow rates of pumps or other flow devices Shop our HVAC supply store for the best prices and fast shipping on Dwyer Instruments flow indicators. We offer a wide selection of flow indicators to meet your specific needs.

SERIES SFI-100 & SFI-300 MIDWEST SIGHT FLOW INDICATOR

Inexpensive Protection for Expensive Equipment and Systems

Series 100 and 300 Sight Flow Indicators are manufactured of quality materials and safety tested to assure long, dependable service at economical prices. The 100 and 300 Series offer threaded process connections, viewing windows, and bodies of brass or 316 SS. The 100 type has a single window with a rotating impeller, the 300 type has a double window with a rotating impeller, the 350 type has a double window with no moving indicator, and the 360 type has a double window with a flapper. All the types feature a removable window for easy service and replacement of wearing parts.

California Residents: Click Here for Proposition 65 WARNING.

Specifications

Series: SFI-100 & SFI-300 MIDWEST SIGHT FLOW INDICATOR
Category/Type: Flow
Type: Sight Flow Indicators
Series: SFI-100 & SFI-300 MIDWEST SIGHT FLOW INDICATOR
Service: Compatible gases and liquids.
Wetted Materials: Window: tempered glass; Body: bronze or 316 SS; Gasket: Buna-N; fluoroelastomer or PTFE; Indicator: ABS or 316 SS impeller (100 and 300); 304 SS or 316 SS flapper (360).
Temperature Limit: 200°F (93°C); 120°F (48°C) on W2 option; 170°F (77°C) on I1 option.
Pressure Limit: 125 psig (8.62 bar); 150 psig (10.34 bar) on "MP" Models.
Connections: Threaded.
