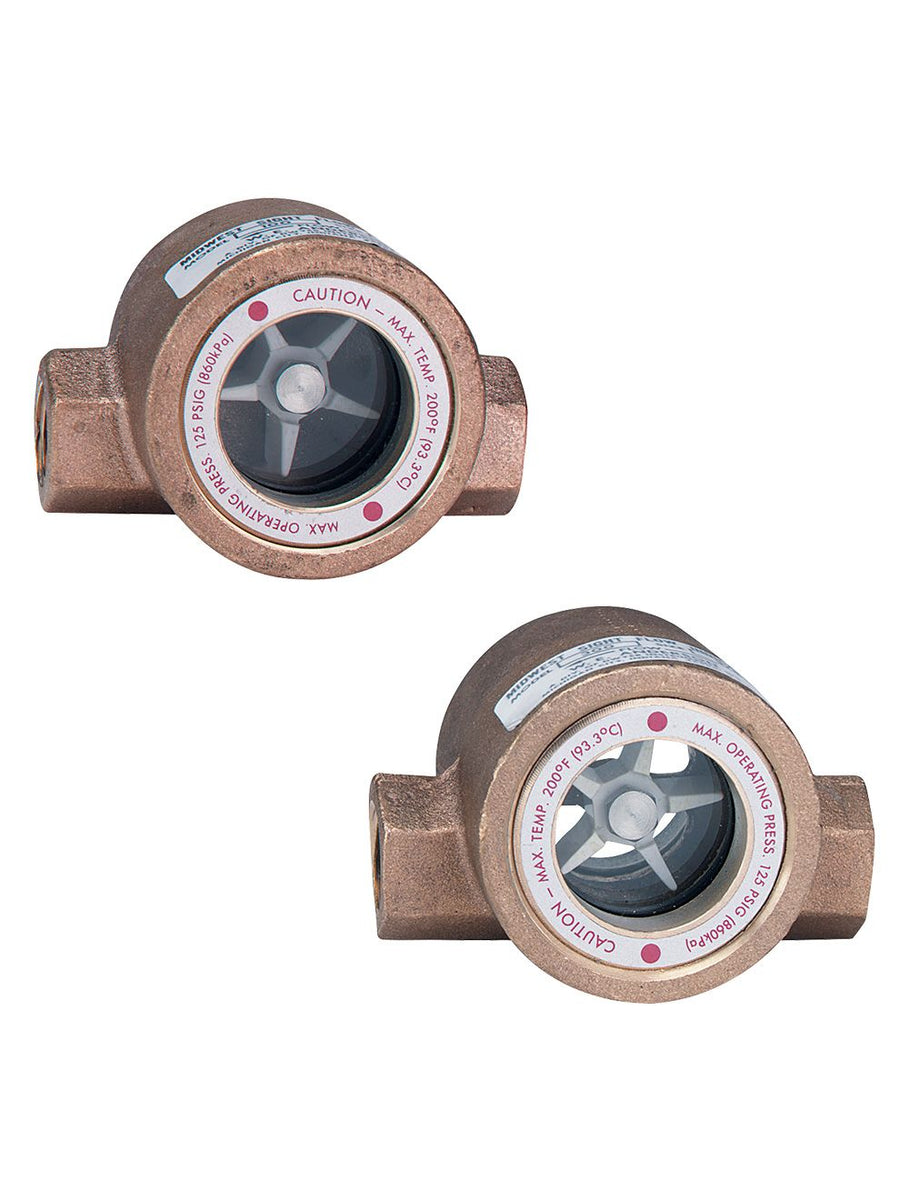

SFI-100-3/8 | Sight flow indicator | 3/8" body | 3.000" L x 1.813" D x 2.125" H (76 x 46 x 54 mm) | 1.1 lb (0.5 kg). | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SFI-100-3/8

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments SFI-100-3/8 Documents

Series SFI-100 & SFI-300 Catalog Page More Info

Overview

Details for SFI-100-3/8

SFI-100-3/8 Dwyer Instruments 3/8" Sight Flow Indicator is a reliable and accurate flow indicator for visually monitoring the flow of fluids in pipes and tubes. This durable sight flow indicator is constructed with a clear acrylic body and tough polycarbonate end pieces, providing excellent visibility and resistance to corrosion and chemicals. The 3/8" diameter allows for use in various applications, and its compact size makes it easy to install in tight spaces. The SFI-100-3/8 offers dependable performance and is suitable for use with liquids and gases. Its internal flapper mechanism clearly indicates flow direction and provides a reliable visual indication of flow presence. Our HVAC supply store offers the SFI-100-3/8 Sight Flow Indicator at competitive prices, along with fast shipping and excellent customer support. Trust Our HVAC supply store, your source for industrial products and solutions.

SERIES SFI-100 & SFI-300 MIDWEST SIGHT FLOW INDICATOR

Inexpensive Protection for Expensive Equipment and Systems

Series 100 and 300 Sight Flow Indicators are manufactured of quality materials and safety tested to assure long, dependable service at economical prices. The 100 and 300 Series offer threaded process connections, viewing windows, and bodies of brass or 316 SS. The 100 type has a single window with a rotating impeller, the 300 type has a double window with a rotating impeller, the 350 type has a double window with no moving indicator, and the 360 type has a double window with a flapper. All the types feature a removable window for easy service and replacement of wearing parts.

California Residents: Click Here for Proposition 65 WARNING.

Specifications

Series: SFI-100 & SFI-300 MIDWEST SIGHT FLOW INDICATOR
Category/Type: Flow
Type: Sight Flow Indicators
Series: SFI-100 & SFI-300 MIDWEST SIGHT FLOW INDICATOR
Service: Compatible gases and liquids.
Wetted Materials: Window: tempered glass; Body: bronze or 316 SS; Gasket: Buna-N; fluoroelastomer or PTFE; Indicator: ABS or 316 SS impeller (100 and 300); 304 SS or 316 SS flapper (360).
Temperature Limit: 200°F (93°C); 120°F (48°C) on W2 option; 170°F (77°C) on I1 option.
Pressure Limit: 125 psig (8.62 bar); 150 psig (10.34 bar) on "MP" Models.
Connections: Threaded.
