SFI-100-1 | Sight flow indicator | 1" body | 4.375" L x 2.563" D x 2.625" H (111 x 65 x 67 mm) | 2.7 lb (1.2 kg). | Dwyer Instruments

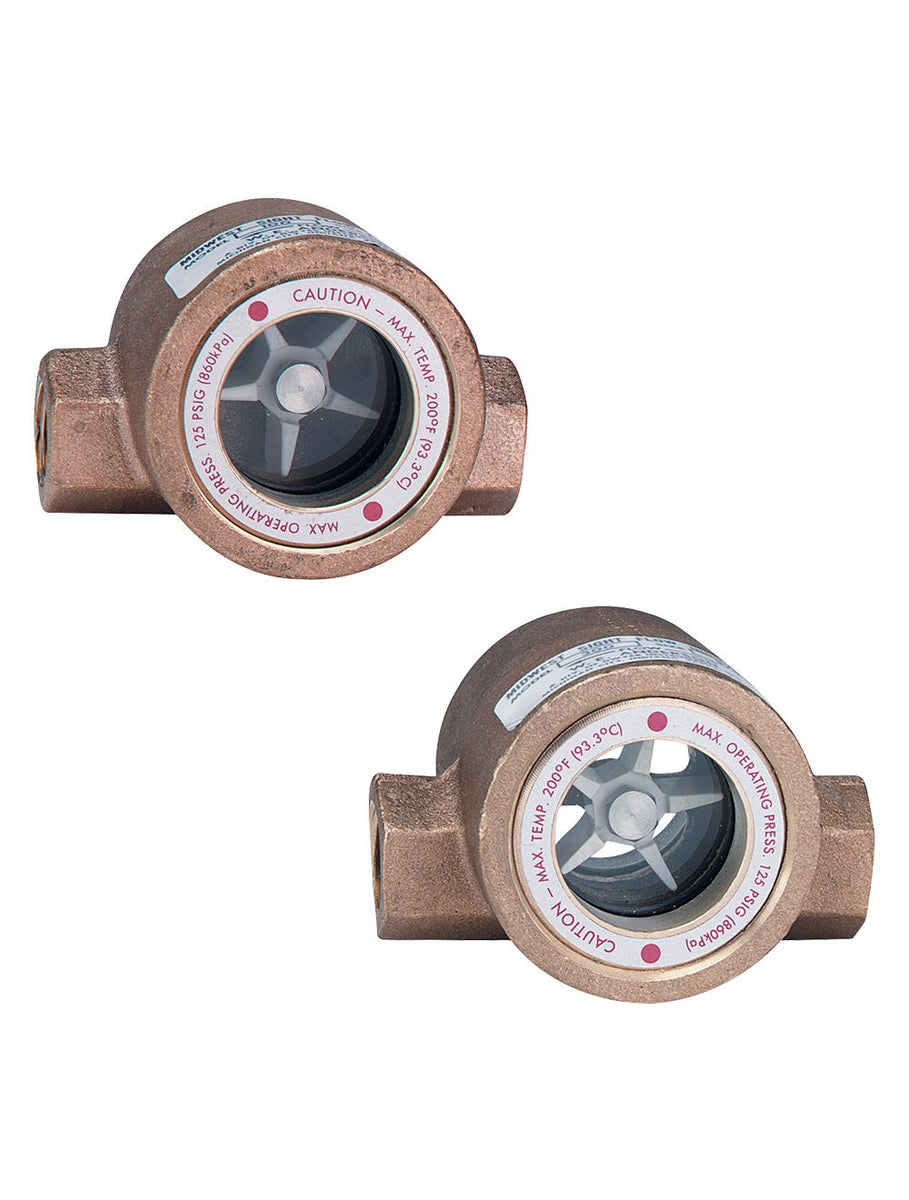

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SFI-100-1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments SFI-100-1 Documents

Series SFI-100 & SFI-300 Catalog Page More Info

Overview

Details for SFI-100-1

Dwyer Instruments SFI-100-1 1" Sight Flow Indicator The Dwyer Instruments SFI-100-1 is a 1" Sight Flow Indicator, designed to provide visual indication of fluid flow in a pipe or tube. It features a clear acrylic body that allows for easy observation of the fluid, and a durable brass construction for long-lasting performance. The SFI-100-1 is ideal for use in a variety of industrial applications, including: - Fluid level monitoring - Flow rate monitoring - Leak detection - Process control Technical Specifications: - Size: 1" - Material: Acrylic body, brass construction - Pressure rating: 150 psi - Temperature rating: 250Â°F - Flow rate range: 0.25 to 20 GPM For reliable monitoring of fluid flow, trust the Dwyer Instruments SFI-100-1 Sight Flow Indicator. With its durable construction, clear visibility, and versatility, it is an essential tool for any industrial engineer or maintenance professional. Our HVAC supply store is your trusted distributor for all your industrial supply needs. We offer a wide range of products from top manufacturers, including Dwyer Instruments. Shop now for the best prices and fast shipping on the SFI-100-1 Sight Flow Indicator and all your other industrial supply needs!

SERIES SFI-100 & SFI-300 MIDWEST SIGHT FLOW INDICATOR

Inexpensive Protection for Expensive Equipment and Systems

Series 100 and 300 Sight Flow Indicators are manufactured of quality materials and safety tested to assure long, dependable service at economical prices. The 100 and 300 Series offer threaded process connections, viewing windows, and bodies of brass or 316 SS. The 100 type has a single window with a rotating impeller, the 300 type has a double window with a rotating impeller, the 350 type has a double window with no moving indicator, and the 360 type has a double window with a flapper. All the types feature a removable window for easy service and replacement of wearing parts.

California Residents: Click Here for Proposition 65 WARNING.

Specifications

Series: SFI-100 & SFI-300 MIDWEST SIGHT FLOW INDICATOR
Category/Type: Flow
Type: Sight Flow Indicators
Series: SFI-100 & SFI-300 MIDWEST SIGHT FLOW INDICATOR
Service: Compatible gases and liquids.
Wetted Materials: Window: tempered glass; Body: bronze or 316 SS; Gasket: Buna-N; fluoroelastomer or PTFE; Indicator: ABS or 316 SS impeller (100 and 300); 304 SS or 316 SS flapper (360).
Temperature Limit: 200°F (93°C); 120°F (48°C) on W2 option; 170°F (77°C) on I1 option.
Pressure Limit: 125 psig (8.62 bar); 150 psig (10.34 bar) on "MP" Models.
Connections: Threaded.
