SFI-100-1/4 | Sight flow indicator | 1/4" body | 3.000" L x 1.813" D x 2.125" H (76 x 46 x 54 mm) | 1.1 lb (0.5 kg). | Dwyer Instruments

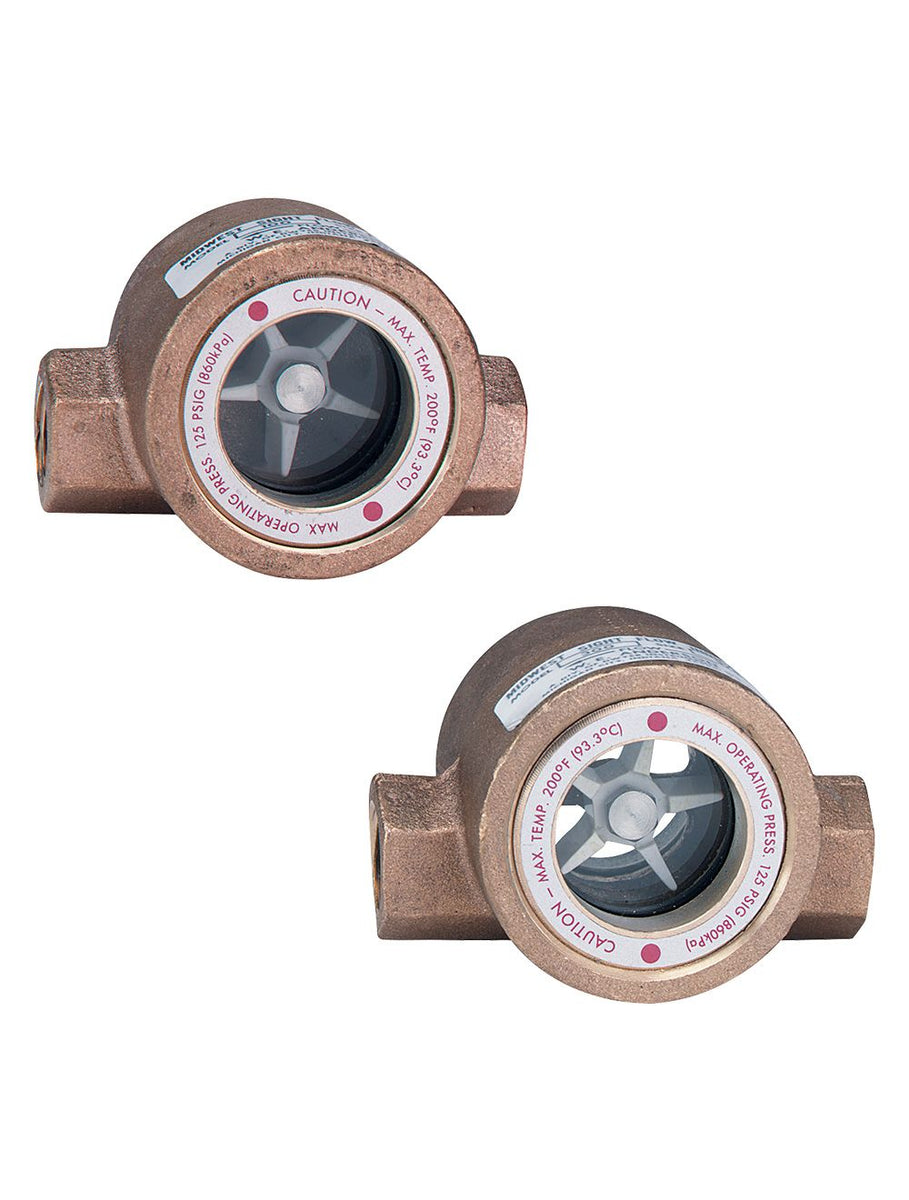

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SFI-100-1/4

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments SFI-100-1/4 Documents

Series SFI-100 & SFI-300 Catalog Page More Info

Overview

Details for SFI-100-1/4

Dwyer Instruments SFI-100-1/4 Sight Flow Indicator The Dwyer Instruments SFI-100-1/4 is a 1/4" sight flow indicator (SFI) designed to provide visual monitoring of fluid flow in pipelines and process systems. Fabricated from durable materials, this SFI can withstand high pressures and temperatures, making it suitable for use in various industrial applications. Key Features: - 1/4" NPT male connections for easy installation - Clear acrylic construction offers excellent visibility of fluid flow - Visual indication of flow rate and direction - Compact design for space-saving installation - Durable construction for long service life Benefits: - Enables visual confirmation of fluid flow - Aids troubleshooting and maintenance of process systems - Contributes to safety by providing instant flow status - Compact size minimizes the required installation space Applications: - Monitoring fluid flow in pipelines - Process industries, including chemical, petrochemical, and pharmaceutical - Water treatment and distribution systems - Food and beverage production - Industrial equipment maintenance Order your Dwyer Instruments SFI-100-1/4 Sight Flow Indicator today from our HVAC supply store and experience the benefits of reliable fluid flow monitoring in your industrial processes!

SERIES SFI-100 & SFI-300 MIDWEST SIGHT FLOW INDICATOR

Inexpensive Protection for Expensive Equipment and Systems

Series 100 and 300 Sight Flow Indicators are manufactured of quality materials and safety tested to assure long, dependable service at economical prices. The 100 and 300 Series offer threaded process connections, viewing windows, and bodies of brass or 316 SS. The 100 type has a single window with a rotating impeller, the 300 type has a double window with a rotating impeller, the 350 type has a double window with no moving indicator, and the 360 type has a double window with a flapper. All the types feature a removable window for easy service and replacement of wearing parts.

California Residents: Click Here for Proposition 65 WARNING.

Specifications

Series: SFI-100 & SFI-300 MIDWEST SIGHT FLOW INDICATOR
Category/Type: Flow
Type: Sight Flow Indicators
Series: SFI-100 & SFI-300 MIDWEST SIGHT FLOW INDICATOR
Service: Compatible gases and liquids.
Wetted Materials: Window: tempered glass; Body: bronze or 316 SS; Gasket: Buna-N; fluoroelastomer or PTFE; Indicator: ABS or 316 SS impeller (100 and 300); 304 SS or 316 SS flapper (360).
Temperature Limit: 200°F (93°C); 120°F (48°C) on W2 option; 170°F (77°C) on I1 option.
Pressure Limit: 125 psig (8.62 bar); 150 psig (10.34 bar) on "MP" Models.
Connections: Threaded.
