SE8350U5B00 | LWV FCU BN RH PIR SLV SLV | Schneider Electric (Viconics)

Schneider Electric (Viconics) | SE8350U5B00

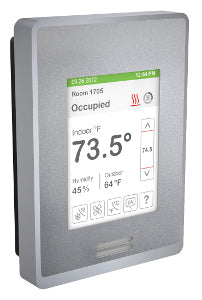

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SE8350U5B00

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Viconics) SE8350U5B00 Documents

Datasheet Installation Instructions

Overview

Details for SE8350U5B00

LowVoltFCU BAC HUM PIR Silver from Schneider Electric (Viconics) is a sophisticated product that provides a combination of functionality and intelligence for monitoring and controlling HVAC systems. Here's a summary of its features and benefits: - Intelligent BACnet connectivity allows for remote monitoring and control, ensuring efficient energy management and building automation. - Built-in humidity and temperature sensors enable precise control of indoor environmental conditions, leading to improved comfort and reduced energy consumption. - Passive infrared (PIR) occupancy sensor detects human presence, automatically adjusting fan speed and temperature to optimize energy usage and comfort levels. - Silver antimicrobial coating on the control panel and other surfaces inhibits the growth of microbes, promoting hygiene in demanding healthcare and commercial environments. Our HVAC supply store is your trusted source for SE8350U5B00 and other Schneider Electric products. We offer the best prices, fast delivery, and expert support to meet your industrial and commercial needs. Contact us today to learn more and place your order!

Specifications

Product name: SE8000 Series
device short name: SE8300
Product or component type: Room controller
device application: Low voltage fan coil
Net weight: 340 g
AWG gauge: AWG 24...AWG 18
Targeted region: North America.
Height: 120 mm
Width: 86 mm
Temperature resolution: 0.1 °C
Humidity measurement drift: Less than 1 % yearly
directives: 2014/30/EU - electromagnetic compatibility
2014/35/EU - low voltage directive
2014/53/EU - radio equipment directive
[In] rated current: 4 A
Depth: 25 mm
Ambient air temperature for operation: 0…50 °C
Market segment: Lodging/hotel
Small commercial
Buildings
Healthcare
Non-critical buildings
Office
Residential
School
Housing colour: Silver
Ambient air temperature for storage: -30…50 °C
Measurement accuracy: Temperature: +/- 0.5 °C,
Humidity: +/- 5 %, 20...80 % RH (non-condensing)
Humidity: +/- 10 %, 10...20 % (non-condensing)
Humidity: +/- 10 %, 80...90 % (non-condensing)
Information displayed: Temperature: - 40...122 °F
Network frequency: 50 Hz
60 Hz
communication port protocol: BACnet MS/TP
Modbus RTU
Input voltage: 0...10 V DC
Temperature setting range: 12…37.5 °C cooling
4.5…32 °C heating
Calibration certificate: 1 pt
Output voltage: 24 V AC for relay output
0...10 V DC for analog output
Relative humidity: 0…95 %
Output current: 1 A relay output
3 A relay output (inrush)
0.3 A universal output
1.5 A universal output (inrush)
Input type: 2 x dry contact
5 x analog
Sensor type: 10 kOhm T2 NTC thermistor temperature
Space RH sensor humidity
Bulk polymer humidity
Output type: 5 xrelay output
4 xuniversal
[Us] rated supply voltage: 24 V AC 50/60 Hz +/- 15 %
Standards: EN/IEC 60730-1
FCC part 15 Subpart B
ICES-003
ETSI EN 300 328
ETSI EN 301 489-1:v1.9.2
FCC part 15 Subpart C
UL 60730-2-9
ETSI EN 301 489-17:v2.2.1, 2012
Humidity setting range: 30…95 %
Range: EcoStruxure Building Expert
Economizer: Yes
Humidity control: Yes
PIR cover: Yes
Scheduling: No
Surface finish: Matt
Surface treatment: Untreated
Function available: Fan control
HVAC control
Available with CO2/RH/T
Brightness sensor
Changes can be made directly over display
Code lock function
Easily configurable
Firmware update by USB
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 4.7 cm
Package 1 Width: 10.6 cm
Package 1 Length: 15.2 cm
Package 1 Weight: 253 g
