SBSV-S5F1 | 2-way 316SS solenoid valve | 3/4" | 7.28-188.5 psi | FKM seal | 110 VAC | Dwyer Instruments

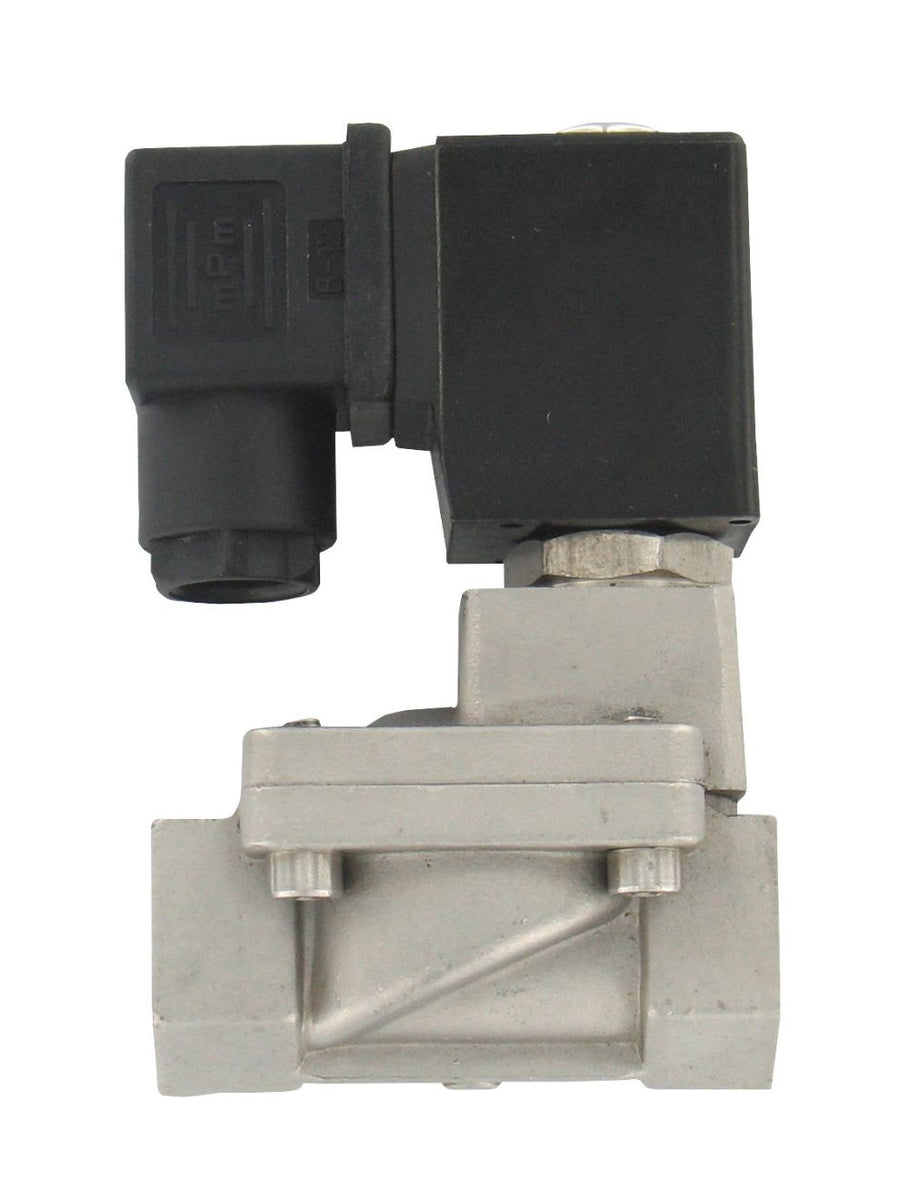

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SBSV-S5F1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments SBSV-S5F1 Documents

Instruction Manual Series SBSV-S Catalog Page More Info

Overview

Details for SBSV-S5F1

SBSV-S5F1 2-Way 316SS Solenoid Valve Dwyer Instruments' SBSV-S5F1 solenoid valve is designed for industrial applications requiring reliable and precise flow control. Manufactured from durable 316 stainless steel, this valve offers excellent corrosion resistance and longevity. With its 3/4" NPT port size and 110 VAC operating voltage, the SBSV-S5F1 is suitable for a wide range of liquids and gases. Its 2-way design allows for easy integration into fluid systems, providing efficient flow control with minimal pressure drop. This valve is ideal for applications in chemical processing, wastewater treatment, and other industrial environments where accurate flow control and durability are essential. Its compact design makes it easy to install and maintain, minimizing downtime and maintenance costs. Our HVAC supply store offers the best prices and fast shipping on the SBSV-S5F1 solenoid valve. Our commitment to customer satisfaction and industry-leading expertise ensures you get the right products for your industrial needs.

Series SBSV-S SS Solenoid Valves – 2-Way Guided NC

Compact Design, Immune to Mounting Orientation

The Series SBSV-S Solenoid Valve is compact, general-service, two-way guide type solenoid valves for air, gas, water and other liquid applications. They are available in SS with a normally closed design and can be oriented in any position. The solenoid enclosure provides protection against dust, while also protecting against seepage of oil and non-corrosive coolants. The Series SBSVS valves come assembled with a fluoroelastomer seal, having a maximum process temperature of 248°F (120°C). The series offers a wide range of valve sizes and flow ranges, with connection sizes from 1/8" to 2" NPT and orifices from 3 mm to 50 mm.

Product Applications

Wide variety of applications, suitable air, gas, water and other liquids

Can be oriented in any position
Compact design
Field replaceable coils

Specifications

Series: SBSV-S SS Solenoid Valves – 2-Way Guided NC
Category/Type: Valves
Type: Valves
Valve Type: Solenoid
Series: SBSV-S SS Solenoid Valves – 2-Way Guided NC
Service: Compatible gases and liquids.
Line Size: 1/8 to 2" NPT.
End Connections: Female NPT.
Operating Pressure: >1/8 to 1/4": 0 psi (0 bar) to 188.5 psi (13 bar);3/8 to 2": 7.3 psi (0.5 bar) to 188.5 psi (13 bar).
Pressure Limit: 246.6 psi (17 bar).
Wetted Material: Body: 316 SS; Spring; 304 SS; Seal: Fluoroelastomer.
Temperature Limits: >Process: 176°F (80°C);Ambient: 32 to 149°F (0 to 65°C).
Power Requirements: Standard: 110 VAC; Optional: 220 VAC; 24 VDC; 24 VAC consult factory. See Series SRC Solenoid Coils.
Power Consumption: See table on catalog page.
Enclosure Rating: NEMA 13 (IP54).
Electrical Connection: DIN connection.
Other Materials: Nylon.
Mounting Orientation: Any position; best if solenoid vertically abovevalve.
Weight: See table on catalog page.
Type of Operation: NC.
Agency Approvals: CE.
