Overview
Details for S2-41
Shop now for the S2-41 Strap-On Temperature Sensor from our HVAC supply store! The S2-41 is a 100k platinum resistance temperature detector (RTD) that provides accurate and reliable temperature measurement in various applications. Manufactured by Dwyer Instruments, this sensor features a rugged design for extended durability.
Key Features:
* Platinum RTD construction for precise temperature sensing
* Durable design for industrial applications
* Measures up to 200°C (392°F)
* Compatible with most temperature controllers and meters
* Easy installation with included mounting bracket
* 100k platinum RTD element
* Temperature range: -70 to 200°C (-94 to 392°F)
* Accuracy: ±0.2°C at 0°C
* Response time: <2 seconds
Benefits:
* Ideal for measuring temperatures in HVAC systems, industrial machinery, and more
* Provides accurate and stable temperature readings
* Fast response time for quick temperature changes
* Easy to install and maintain
* Backed by Dwyer Instruments' reputation for quality and reliability
Shop our HVAC supply store for the best prices and fast shipping on the S2-41 Strap-On Temperature Sensor and all your other industrial supply needs!

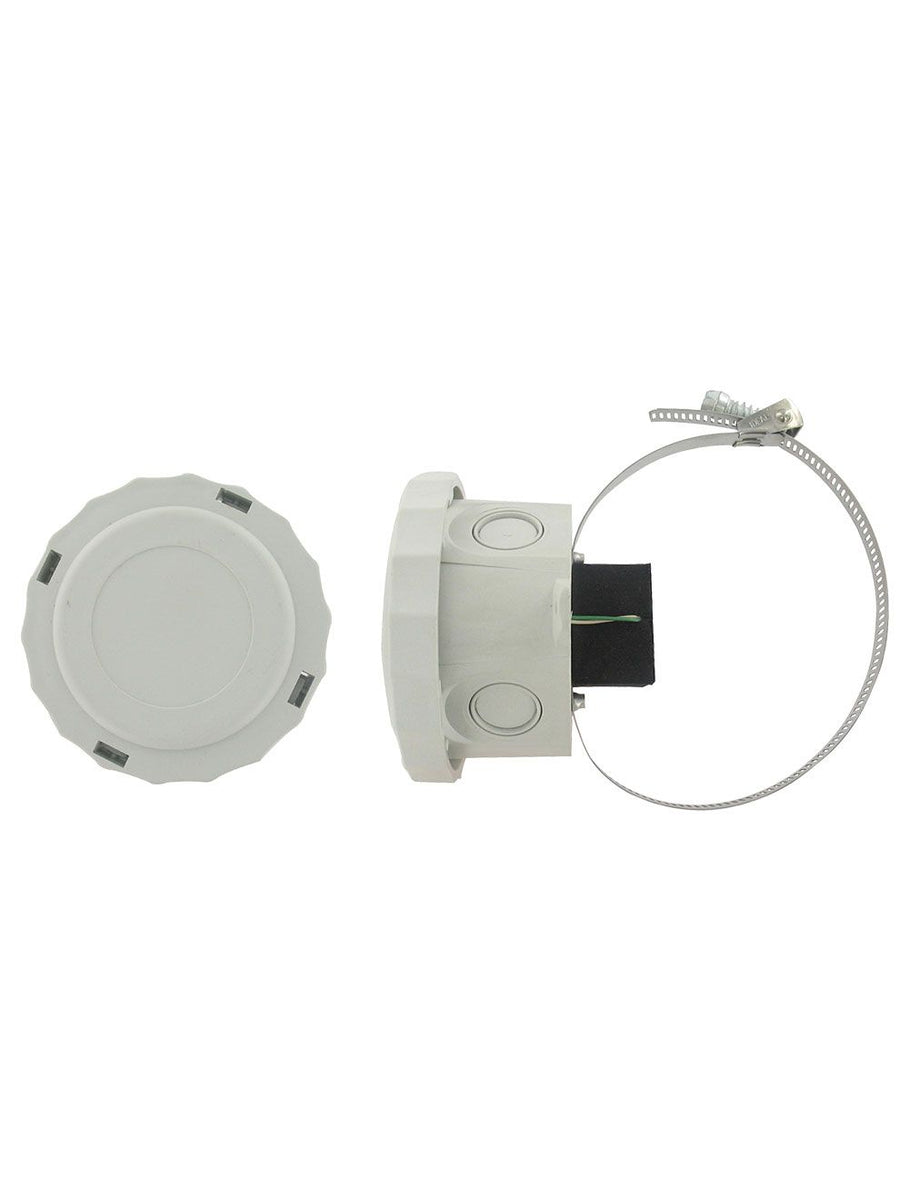

Series S2-4 Weatherproof Surface Temperature Assembly
Strap-On Design, Twist off Housing Cover
The Series S2-4 Weatherproof Surface Temperature Assembly is ideal for monitoring the temperature of distribution lines when it is not possible to penetrate the pipe. The strap-on connection quickly wraps around a pipe and can be securely tightened using a flat head screw driver. The twist-off housing cover reduces installation time. The housing has multiple knockout conduit holes which allows the installer to bring conduit to any side of the housing. The Series S2-4 can be ordered with a choice of 11 output options that allow it to communicate to any standard building control system.
Specifications
- Series
- S2-4 Weatherproof Surface Temperature Assembly
- Category/Type
- Temperature
- Type
- Sensors
- Series
- S2-4 Weatherproof Surface Temperature Assembly
- Accuracy
- Platinum RTD: ±0.6% @ 32°F (0°C); Nickel RTD: ±0.5°F @ 32°F (0°C); Balco RTD: ±0.1% @ 32°F (0°C); Thermistors: ±0.36°F from 32 to 158°F (0 to 70°C).
- Operating Temperature
- -32 to 240°F (-35.5 to 115.5 °C).
- Probe Material
- Copper conductor.
- Mounting
- Strap-on to pipe. (2"-5" pipe sizes)
- Enclosure Rating
- NEMA 4X (IP65).
