RSV1D | Pilot solenoid valve | 110 VAC | DIN electrical connections | Cv of .33. | Dwyer Instruments

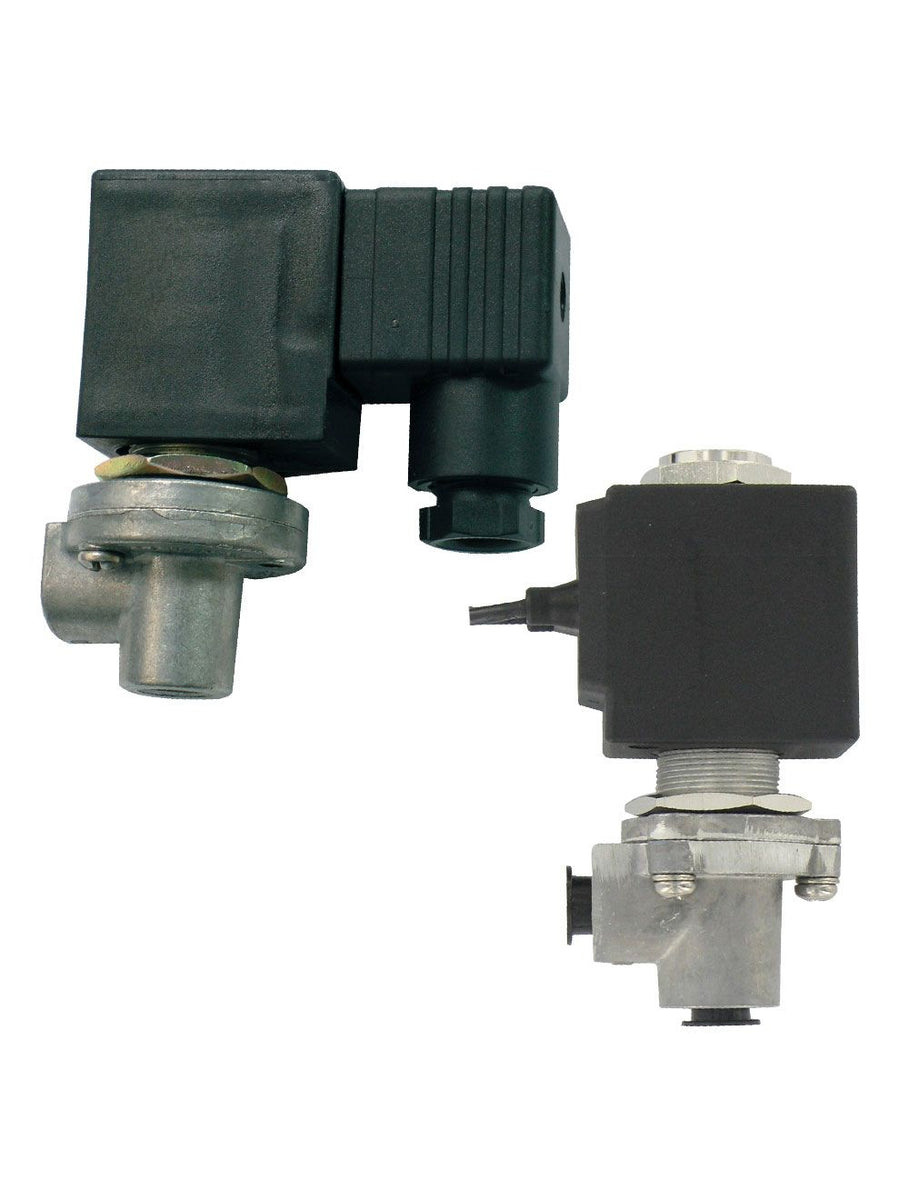

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RSV1D

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments RSV1D Documents

Instruction Manual Series RSV Catalog Page More Info

Overview

Details for RSV1D

The Dwyer Instruments RSV1D 110VAC DIN PILOT SOLENOID VLV is a reliable and efficient solenoid valve designed for industrial applications. This high-quality valve features a 110VAC power supply, making it suitable for a wide range of electrical systems. With its durable construction and reliable performance, the Dwyer Instruments RSV1D is built to withstand demanding industrial environments. Key Features: * 110VAC power supply for versatile operation * DIN rail mountable design for easy installation * Robust construction ensures durability and longevity * Suitable for a variety of industrial applications Benefits: * Easy integration into existing electrical systems * Space-saving design for efficient use of space * Reliable performance for uninterrupted operation * Ideal for demanding industrial environments Shop our HVAC supply store today for the best prices and fast shipping on the Dwyer Instruments RSV1D 110VAC DIN PILOT SOLENOID VLV.

Series RSV Pilot Solenoid Valve

For Use with Remote Valves

The Series RSV Pilot Solenoid Valve is used to operate the Series RDCV remote type diaphragm valve. The RSV can drive all size diaphragm valves. Consult factory for mounting of RSV valves with our DCT timer boards together in one enclosure all pre-wired.

Product Applications

For use with RDCV remote valve

Filtered and oil-free
Weatherproof enclosure package available
Can be mounted with DCT timer boards in one enclosure, consult factory

Specifications

Series: RSV Pilot Solenoid Valve
Category/Type: Valves
Type: Valves
Valve Type: Solenoid
Series: RSV Pilot Solenoid Valve
Service: Compatible gases; filtered and oil free.
Wetted Materials: Body: aluminum; Core and spring: 304 SS; Seals: NBR.
Pressure Limits: Minimum of 4.4 psi (0.3 bar); maximum of 124.7 psi (8.6 bar).
Temperature Limits: Ambient: -4 to 122°F (-20 to 50°C); Operating: -4 to 185°F (-20 to 85°C).
Power Requirements: 110 VAC; 220 VAC; or 24 VDC.
Power Consumption: 2 W; inrush: 17 VA; holding: 14.5 VA.
Enclosure Rating: NEMA 4X (IP65).
Electrical Connection: DIN connection or wire leads; 18 AWG; 22" (55 cm) long.
Process Connection: 1/8" female NPT.
Mounting Orientation: Any position.
Weight: 0.60 lb (0.27 kg).
Pneumatic Tube Length: Maximum of 9.8 ft (3 m).
Agency Approval: CE.
