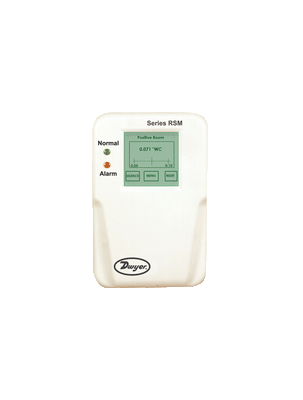

RSM-6-A | Room status monitor | range ±2.5" w.c. | excitation 24 VAC. | Dwyer Instruments
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to RSM-6-A
Documents and manuals
Dwyer Instruments RSM-6-A Documents
Overview
Details for RSM-6-A
Dwyer Instruments RSM-6-A: Versatile and Accurate 24VAC/4-20mA or 0-5/0-10VDC Signal Conditioner
The Dwyer Instruments RSM-6-A signal conditioner is an indispensable tool for industrial engineers and maintenance professionals. This versatile device converts 24VAC or 4-20mA signals to 0-5 or 0-10VDC signals, providing accurate measurements and control over a wide range of applications.
Key Features and Benefits:
* High Accuracy: Delivers precise signal conversion with an accuracy of ±0.05% of full scale.
* Wide Voltage Range: Accepts input voltages from 24VAC/12-30VDC, providing flexibility in different electrical systems.
* Universal Input Signal: Accommodates both AC and DC input signals, ensuring compatibility with various sensor outputs.
* Multiple Output Ranges: Converts input signals to a desired output range of 0-5 or 0-10VDC, enabling compatibility with different devices and systems.
* Rugged Construction: Housed in a durable enclosure, the RSM-6-A withstands harsh industrial environments.
Applications:
* Instrumentation and Control Loops: Monitor and adjust process variables in industrial applications.
* Data Acquisition Systems: Integrate with data acquisition systems to collect and analyze analog signals.
* Machine Control and Automation: Control the operation of industrial machinery and automated processes.
* Signal Isolation: Isolate input signals from output signals to prevent electrical interference.
Invest in the Dwyer Instruments RSM-6-A signal conditioner for reliable and precise signal conversion in demanding industrial environments. Trust our HVAC supply store for competitive prices and fast shipping on all your industrial supply needs!

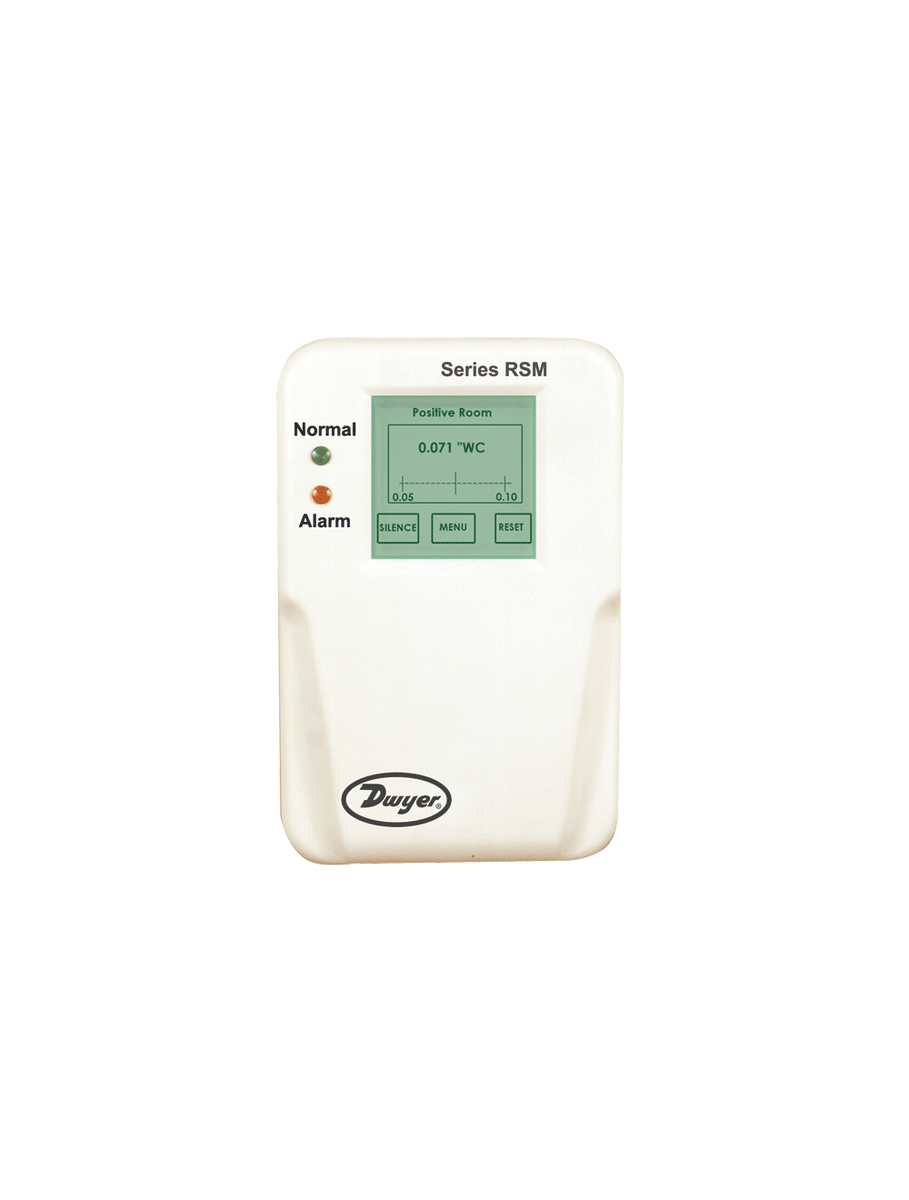

SERIES RSM ROOM STATUS MONITOR
For Sensing Low Pressure Using High Accuracy
Series RSM Room Status Monitor is designed for critical low differential pressure applications that require stringent pressure monitoring and alarming. The Series RSM can be configured to monitor positive or negative pressure in protected environments and hospital isolation rooms per CDC guidelines. The RSM is a complete system with a graphic user interface which enables access to pressure, security, calibration, and alarm setup. The RSM has a NEMA 1 (IP20) rated fire retardant plastic for indoor applications.
Product Applications
- Hospital Isolation Wards
- Pharmaceutical
- Manufacturing
- Clean Rooms
- Research Labs
- Animal Facilities
- Accurately monitor protective environments for negative or positive pressureensuring safety and reducing risk of catastrophic events
- Audible and visual alarm provides immediate local alerts allowing corrective actionto be taken quicker to eliminate the problem from becoming widespread
- Password protected set up menu helps to insure no errors by untrained personnel
- Optional BACnet communication from devices provides integration into buildingcontrol system for automated control and centralized monitoring and alarming
Specifications
- Series
- RSM ROOM STATUS MONITOR
- freeship
- Category/Type
- Pressure
- Type
- Room Status Monitors
- Series
- RSM ROOM STATUS MONITOR
- Service
- Air or nonconductive; nonexplosive gases.
- Accuracy
- ±0.5% FS.
- Temperature Limits
- 32 to 120°F (0 to 50°C).
- Humidity Limits
- 5 to 95% relative humidity (non-condensing).
- Thermal Effects
- ±0.03% FS/ °F (± 0.05% FS/ °C).
- Pressure Limits
- ±15 in w.c. (±3.7 kPa).
- Supply Voltage
- Order Code A (24 VAC): 18-32 VAC; 50-60 Hz. Order Code B (120 VAC): 85-265 VAC; 50-60 Hz. Main supply voltage fluctuations up to 10%.
- Power Consumption (voltage output)
- 5 W.
- Output Signal
- Selectable 4-20 mA (2-wire); 0-5 VDC (3-wire); or 0-10 VDC (3-wire).
- Switch Type
- SPST.
- Loop Resistance (4-20 mA output)
- 0-510 Ω.
- Electrical Connection
- Removable terminal block.
- Process Connections
- Barbed fittings for 3/16" ID tubing.
- Enclosure Rating
- NEMA 1 (IP20) rated for indoor applications.
- Housing
- Fire retardant plastic.
- Mounting
- Mount to standard double gang metal electrical box using 4x4" plaster ring adapter.
- Dimensions
- 8" H x 5.4" W x 1.8" D (20.3 H x 13.7 W x 4.1 D cm).
- Weight
- 1.5 lb (680 g).
- Communications
- BACnet MSTP ASC optional.
- Agency Approval
- CE; CSA (RSM only).
