RSM-4-A | Room status monitor | range ±0.5" w.c. | excitation 24 VAC. | Dwyer Instruments

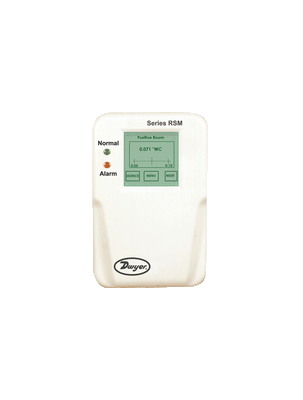

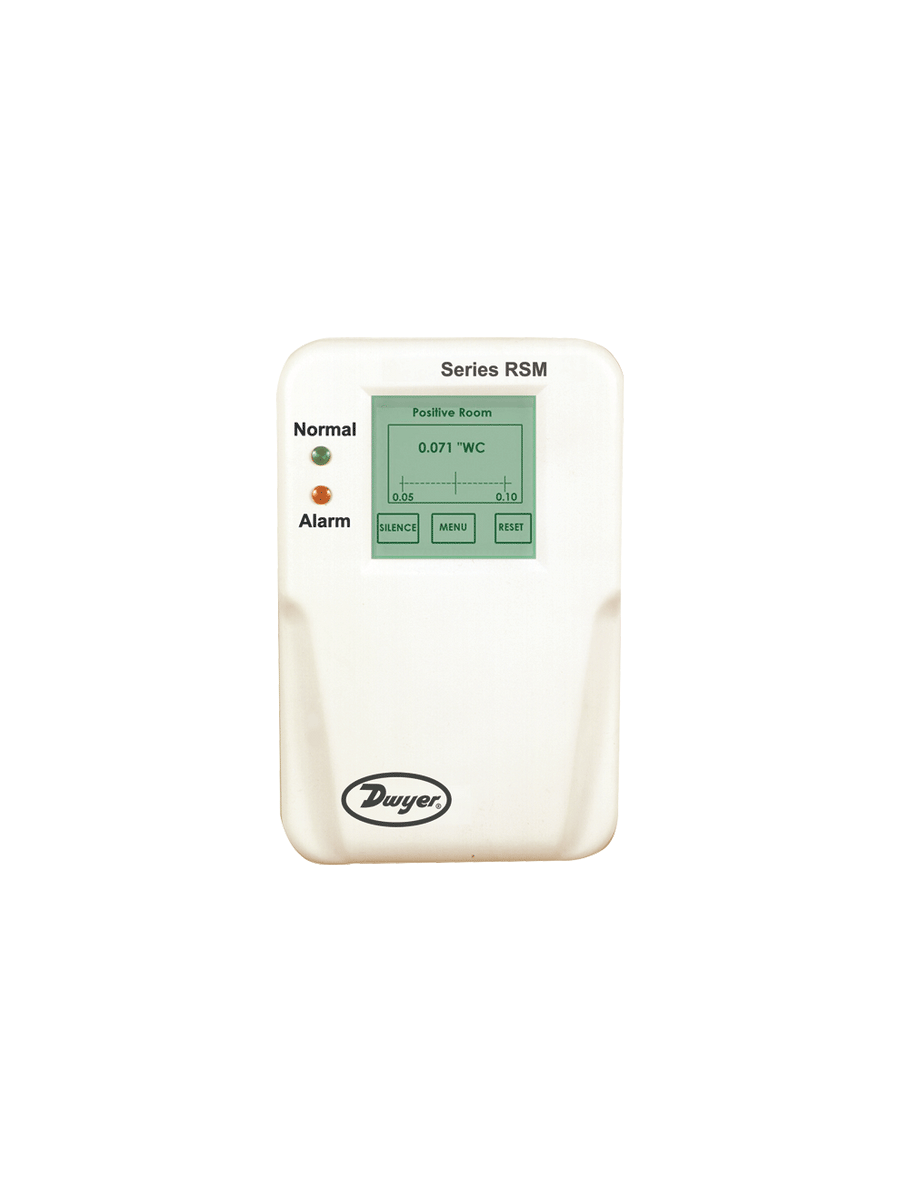

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RSM-4-A

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments RSM-4-A Documents

Instruction Manual Series RSM Catalog Page More Info

Overview

Details for RSM-4-A

RSM-4-A Room Status Monitor: An Essential Tool for Industrial Engineers and Maintenance Professionals Dwyer Instruments' RSM-4-A Room Status Monitor is an indispensable tool for optimizing environmental conditions in critical areas. This compact and versatile device accurately measures pressure, humidity, and temperature, providing real-time insights into room status. With its +/-0.5" WC pressure measurement range, the RSM-4-A effectively detects even subtle pressure variations. Its humidity and temperature sensors ensure accurate monitoring of these parameters within a 0 to 100% RH and -40 to 158Â°F (-40 to 70Â°C) range respectively. The monitor's high accuracy and reliability make it an ideal choice for maintaining optimal conditions in server rooms, cleanrooms, warehouses, and other controlled environments. Its compact size and easy-to-read display allow for convenient placement and monitoring. Enhance your environmental control with the RSM-4-A Room Status Monitor, available at our HVAC supply store for competitive prices and fast shipping.

SERIES RSM ROOM STATUS MONITOR

For Sensing Low Pressure Using High Accuracy

Series RSM Room Status Monitor is designed for critical low differential pressure applications that require stringent pressure monitoring and alarming. The Series RSM can be configured to monitor positive or negative pressure in protected environments and hospital isolation rooms per CDC guidelines. The RSM is a complete system with a graphic user interface which enables access to pressure, security, calibration, and alarm setup. The RSM has a NEMA 1 (IP20) rated fire retardant plastic for indoor applications.

Product Applications

Hospital Isolation Wards
Pharmaceutical
Manufacturing
Clean Rooms
Research Labs
Animal Facilities

Accurately monitor protective environments for negative or positive pressureensuring safety and reducing risk of catastrophic events
Audible and visual alarm provides immediate local alerts allowing corrective actionto be taken quicker to eliminate the problem from becoming widespread
Password protected set up menu helps to insure no errors by untrained personnel
Optional BACnet communication from devices provides integration into buildingcontrol system for automated control and centralized monitoring and alarming

Specifications

Series: RSM ROOM STATUS MONITOR
freeship
Category/Type: Pressure
Type: Room Status Monitors
Series: RSM ROOM STATUS MONITOR
Service: Air or nonconductive; nonexplosive gases.
Accuracy: ±0.5% FS.
Temperature Limits: 32 to 120°F (0 to 50°C).
Humidity Limits: 5 to 95% relative humidity (non-condensing).
Thermal Effects: ±0.03% FS/ °F (± 0.05% FS/ °C).
Pressure Limits: ±15 in w.c. (±3.7 kPa).
Supply Voltage: Order Code A (24 VAC): 18-32 VAC; 50-60 Hz. Order Code B (120 VAC): 85-265 VAC; 50-60 Hz. Main supply voltage fluctuations up to 10%.
Power Consumption (voltage output): 5 W.
Output Signal: Selectable 4-20 mA (2-wire); 0-5 VDC (3-wire); or 0-10 VDC (3-wire).
Switch Type: SPST.
Loop Resistance (4-20 mA output): 0-510 Ω.
Electrical Connection: Removable terminal block.
Process Connections: Barbed fittings for 3/16" ID tubing.
Enclosure Rating: NEMA 1 (IP20) rated for indoor applications.
Housing: Fire retardant plastic.
Mounting: Mount to standard double gang metal electrical box using 4x4" plaster ring adapter.
Dimensions: 8" H x 5.4" W x 1.8" D (20.3 H x 13.7 W x 4.1 D cm).
Weight: 1.5 lb (680 g).
Communications: BACnet MSTP ASC optional.
Agency Approval: CE; CSA (RSM only).
