RSM-1-B | Room status monitor | range ±0.05" w.c. | excitation 120 VAC. | Dwyer Instruments

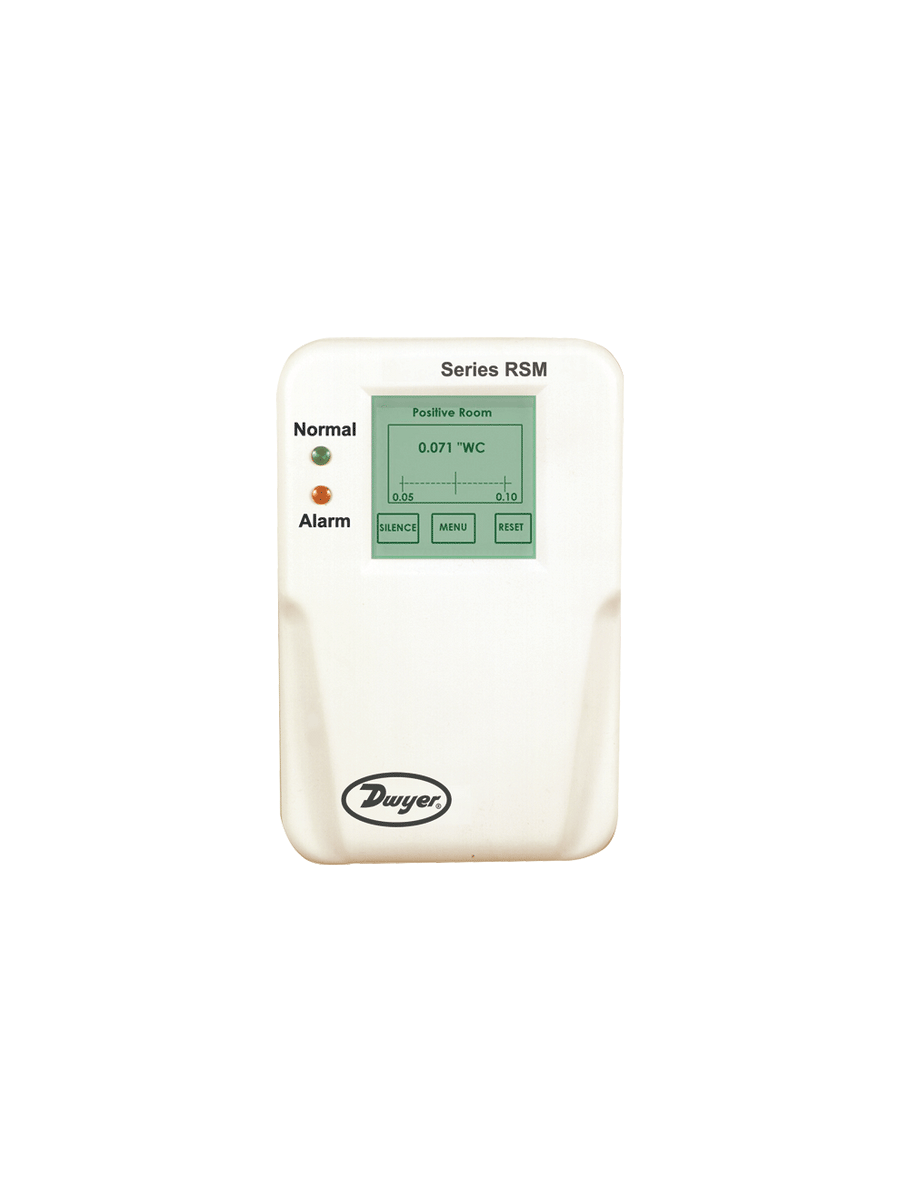

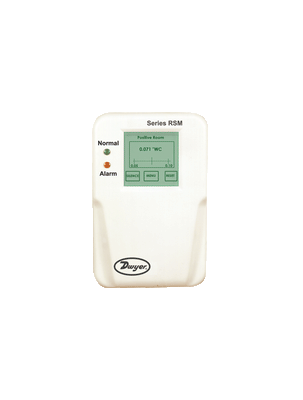

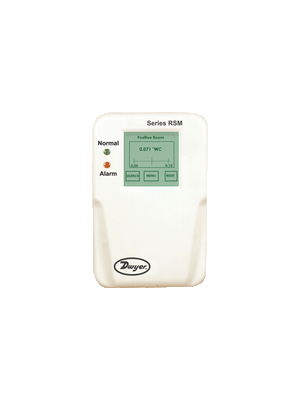

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RSM-1-B

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments RSM-1-B Documents

Instruction Manual Series RSM Catalog Page More Info

Overview

Details for RSM-1-B

Dwyer Instruments RSM-1-B RoomStatusMonitor The Dwyer Instruments RSM-1-B RoomStatusMonitor is a precise device designed to monitor room pressure with exceptional accuracy of +/-0.05"wc. Its compact and reliable design makes it ideal for maintaining optimal environmental conditions in critical applications, such as healthcare facilities, data centers, and cleanrooms. The RSM-1-B utilizes a highly sensitive sensor to measure air pressure with precision. Its digital display provides real-time readings, allowing users to monitor pressure changes and ensure that critical environments meet specific requirements. Applications: * Monitoring room pressure in healthcare facilities to prevent the spread of airborne contaminants * Maintaining optimal pressure levels in data centers to protect sensitive equipment from overheating * Controlling pressure in cleanrooms to prevent cross-contamination and ensure product quality Benefits: * Precise pressure monitoring with +/-0.05"wc accuracy * Compact and reliable design for convenient installation * Digital display for easy readability of pressure readings * Supports most room pressure sensor ranges (requires optional cable) * Meets ASHRAE 170 and VDI 3803 standards Our HVAC supply store: Your Trusted Partner Choose Our HVAC supply store for the best prices on the Dwyer Instruments RSM-1-B RoomStatusMonitor. With our fast shipping and commitment to customer satisfaction, we're the ideal partner for your industrial supply needs. Order today and experience the difference!

SERIES RSM ROOM STATUS MONITOR

For Sensing Low Pressure Using High Accuracy

Series RSM Room Status Monitor is designed for critical low differential pressure applications that require stringent pressure monitoring and alarming. The Series RSM can be configured to monitor positive or negative pressure in protected environments and hospital isolation rooms per CDC guidelines. The RSM is a complete system with a graphic user interface which enables access to pressure, security, calibration, and alarm setup. The RSM has a NEMA 1 (IP20) rated fire retardant plastic for indoor applications.

Product Applications

Hospital Isolation Wards
Pharmaceutical
Manufacturing
Clean Rooms
Research Labs
Animal Facilities

Accurately monitor protective environments for negative or positive pressureensuring safety and reducing risk of catastrophic events
Audible and visual alarm provides immediate local alerts allowing corrective actionto be taken quicker to eliminate the problem from becoming widespread
Password protected set up menu helps to insure no errors by untrained personnel
Optional BACnet communication from devices provides integration into buildingcontrol system for automated control and centralized monitoring and alarming

Specifications

Series: RSM ROOM STATUS MONITOR
freeship
Category/Type: Pressure
Type: Room Status Monitors
Series: RSM ROOM STATUS MONITOR
Service: Air or nonconductive; nonexplosive gases.
Accuracy: ±0.5% FS.
Temperature Limits: 32 to 120°F (0 to 50°C).
Humidity Limits: 5 to 95% relative humidity (non-condensing).
Thermal Effects: ±0.03% FS/ °F (± 0.05% FS/ °C).
Pressure Limits: ±15 in w.c. (±3.7 kPa).
Supply Voltage: Order Code A (24 VAC): 18-32 VAC; 50-60 Hz. Order Code B (120 VAC): 85-265 VAC; 50-60 Hz. Main supply voltage fluctuations up to 10%.
Power Consumption (voltage output): 5 W.
Output Signal: Selectable 4-20 mA (2-wire); 0-5 VDC (3-wire); or 0-10 VDC (3-wire).
Switch Type: SPST.
Loop Resistance (4-20 mA output): 0-510 Ω.
Electrical Connection: Removable terminal block.
Process Connections: Barbed fittings for 3/16" ID tubing.
Enclosure Rating: NEMA 1 (IP20) rated for indoor applications.
Housing: Fire retardant plastic.
Mounting: Mount to standard double gang metal electrical box using 4x4" plaster ring adapter.
Dimensions: 8" H x 5.4" W x 1.8" D (20.3 H x 13.7 W x 4.1 D cm).
Weight: 1.5 lb (680 g).
Communications: BACnet MSTP ASC optional.
Agency Approval: CE; CSA (RSM only).
