RMV-3-3 | Dial type flowmeter | 0-20 GPM water | 1" female NPT. | Dwyer Instruments

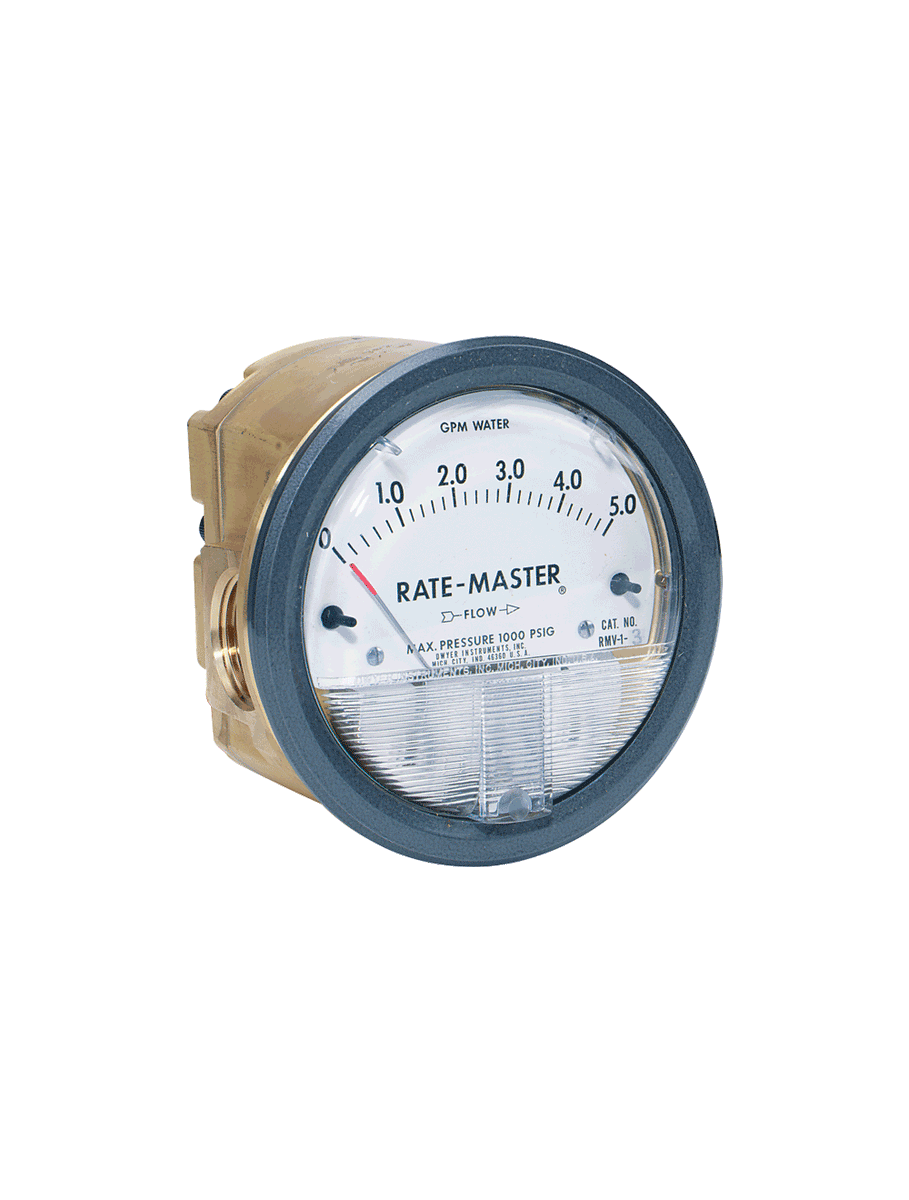

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RMV-3-3

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments RMV-3-3 Documents

Service Manual Series RMV Catalog Page More Info

Overview

Details for RMV-3-3

Dwyer Instruments RMV-3-3: 0/20 GPM 1" NPT Dial Flow Meter The Dwyer Instruments RMV-3-3 Dial Flow Meter is an economical choice for general-purpose flow measurement of liquids compatible with brass or stainless steel. It features a 1" FPT connection size and a flow rate range of 0-20 GPM. The large, easy-to-read dial provides clear flow rate readings, while the rugged construction withstands demanding industrial environments. Key Features: - 0-20 GPM flow rate range - 1" FPT connection size - Brass or stainless steel construction - Large, easy-to-read dial Benefits: - Economical general-purpose flow measurement solution - Suitable for a wide range of liquids - Withstands demanding industrial environments Applications: - Water flow monitoring - Chemical flow measurement - Industrial process control Choose Dwyer Instruments RMV-3-3 Dial Flow Meter for reliable and affordable flow measurement. Shop our HVAC supply store today for the best prices and rapid shipping on the RMV-3-3 and other Dwyer Instruments products!

Series RMV Rate-Master® Dial-Type Flowmeters

Brass Body, Three Ranges to 20 GPM Water, Shatterproof Construction

The Series RMV Rate-Master® Flowmeters measure higher water flow rates with ±2% of full scale accuracy at an affordable price. Stocked models are fitted with 1" female NPT inlet and outlet; 3/4" and 1/2" sizes are also available. Install in line, supported by piping or flush panel mount with complete hardware package included.

NIST CALIBRATION available in Product Configurator.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Monitor coolant flow through ingot heaters, high-amp switchgear, resistance welders, heat exchangers, compressors, scrubbers.
Monitor water consumption to different processes and operations for more efficient operation.
Calculate required fill or drain times for tanks, water towers.

Rugged forged brass housing yields great compatibility and strength, allowing theunit to withstand system pressures to 1000 psig (68.9 bar)
Shatter proof construction, unlike glass tube variable area flowmeters, yields longoperation life

Specifications

Series: RMV Rate-Master® Dial-Type Flowmeters
freeship
Category/Type: Flow
Type: Flowmeters
Series: RMV Rate-Master® Dial-Type Flowmeters
Service: Compatible liquids.
Wetted Materials: Brass; copper; 302 SS; sintered barium ferrite.
Temperature Limits: 20 to 200°F (-6.7 to 93°C).
Pressure Limits: 1000 psig (68.9 bar).
Pressure Drop: 0 to 5 GPM: 3.2 psid; 0 to 10 GPM: 5.3 psid; 0 to 20 GPM: 10.4 psid.
Accuracy: ±2% of FS.
Size: Diameter dial face 4" (101.6 mm).
Process Connections: See specific model number on Catalog page.
Maximum Flow: 1.5 x full scale reading.
Weight: 9 lb (4.08 kg).
