RMV-2-3 | Dial type flowmeter | 0-10 GPM water | 1" female NPT. | Dwyer Instruments

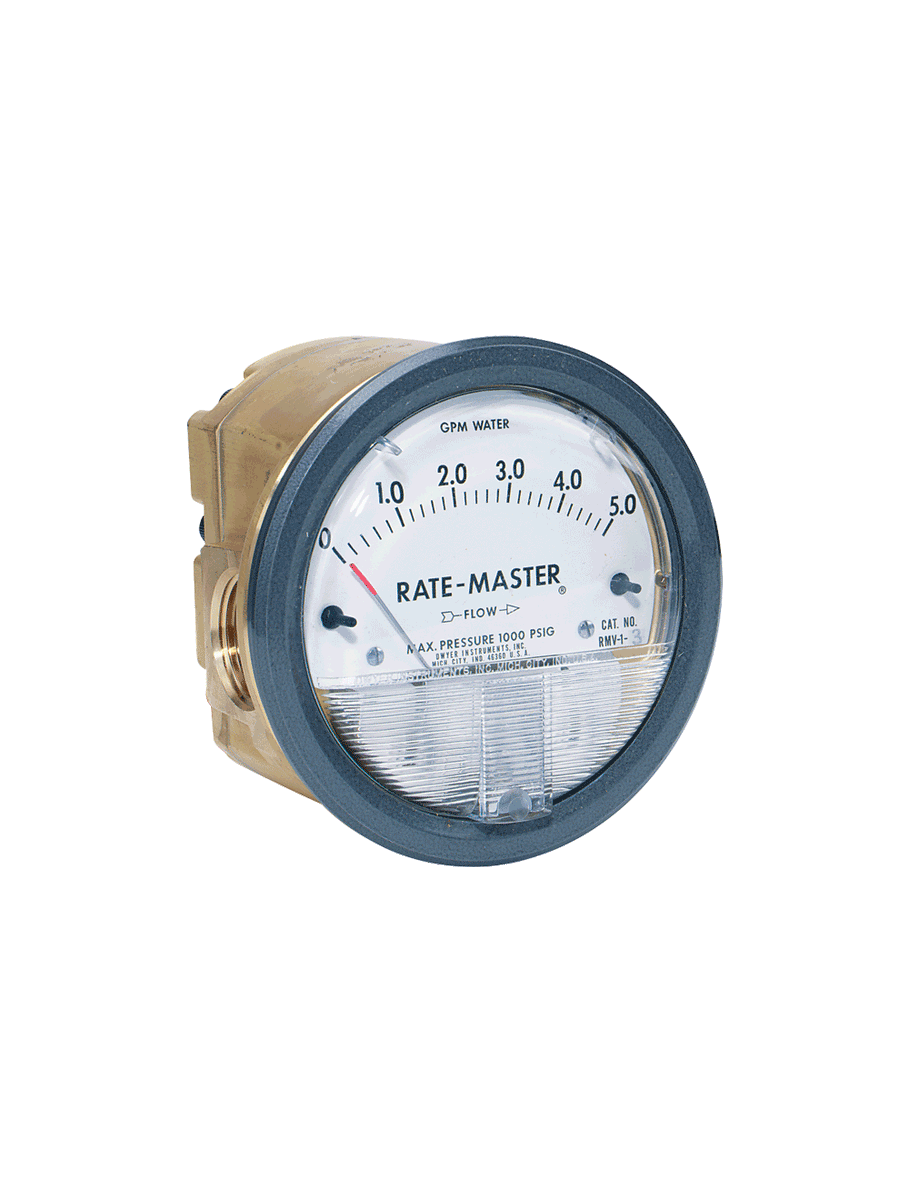

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RMV-2-3

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments RMV-2-3 Documents

Service Manual Series RMV Catalog Page More Info

Overview

Details for RMV-2-3

The Dwyer Instruments RMV-2-3 is a 0/10 GPM 1" FPT dial flow meter designed to provide accurate and reliable flow measurement for liquids. Crafted from durable materials, the RMV-2-3 features a rugged construction with a brass body and a polycarbonate dial face, ensuring longevity in demanding industrial environments. Its 1" female pipe thread (FPT) connections simplify installation, making it compatible with standard piping systems. The dial flow meter operates on a mechanical principle, utilizing a rotating paddle wheel to measure flow rate. The paddle rotates proportionally to the flow velocity, displaying the flow rate on a clear and easy-to-read dial. The RMV-2-3 offers high accuracy (Â±3%) and repeatability, ensuring consistent and precise measurements. Its compact design and lightweight construction allow for easy installation in confined spaces. The flow meter is suitable for use in various applications, including flow measurement of water, chemicals, and other non-corrosive liquids. With its precise measurements and durable construction, the Dwyer Instruments RMV-2-3 is an ideal choice for accurate and reliable flow measurement. Our HVAC supply store offers the best prices and fast shipping for your products, so order yours today!

Series RMV Rate-Master® Dial-Type Flowmeters

Brass Body, Three Ranges to 20 GPM Water, Shatterproof Construction

The Series RMV Rate-Master® Flowmeters measure higher water flow rates with ±2% of full scale accuracy at an affordable price. Stocked models are fitted with 1" female NPT inlet and outlet; 3/4" and 1/2" sizes are also available. Install in line, supported by piping or flush panel mount with complete hardware package included.

NIST CALIBRATION available in Product Configurator.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Monitor coolant flow through ingot heaters, high-amp switchgear, resistance welders, heat exchangers, compressors, scrubbers.
Monitor water consumption to different processes and operations for more efficient operation.
Calculate required fill or drain times for tanks, water towers.

Rugged forged brass housing yields great compatibility and strength, allowing theunit to withstand system pressures to 1000 psig (68.9 bar)
Shatter proof construction, unlike glass tube variable area flowmeters, yields longoperation life

Specifications

Series: RMV Rate-Master® Dial-Type Flowmeters
freeship
Category/Type: Flow
Type: Flowmeters
Series: RMV Rate-Master® Dial-Type Flowmeters
Service: Compatible liquids.
Wetted Materials: Brass; copper; 302 SS; sintered barium ferrite.
Temperature Limits: 20 to 200°F (-6.7 to 93°C).
Pressure Limits: 1000 psig (68.9 bar).
Pressure Drop: 0 to 5 GPM: 3.2 psid; 0 to 10 GPM: 5.3 psid; 0 to 20 GPM: 10.4 psid.
Accuracy: ±2% of FS.
Size: Diameter dial face 4" (101.6 mm).
Process Connections: See specific model number on Catalog page.
Maximum Flow: 1.5 x full scale reading.
Weight: 9 lb (4.08 kg).
