RMC-135-SSV | Flowmeter | range 8-90 GPH water. | Dwyer Instruments

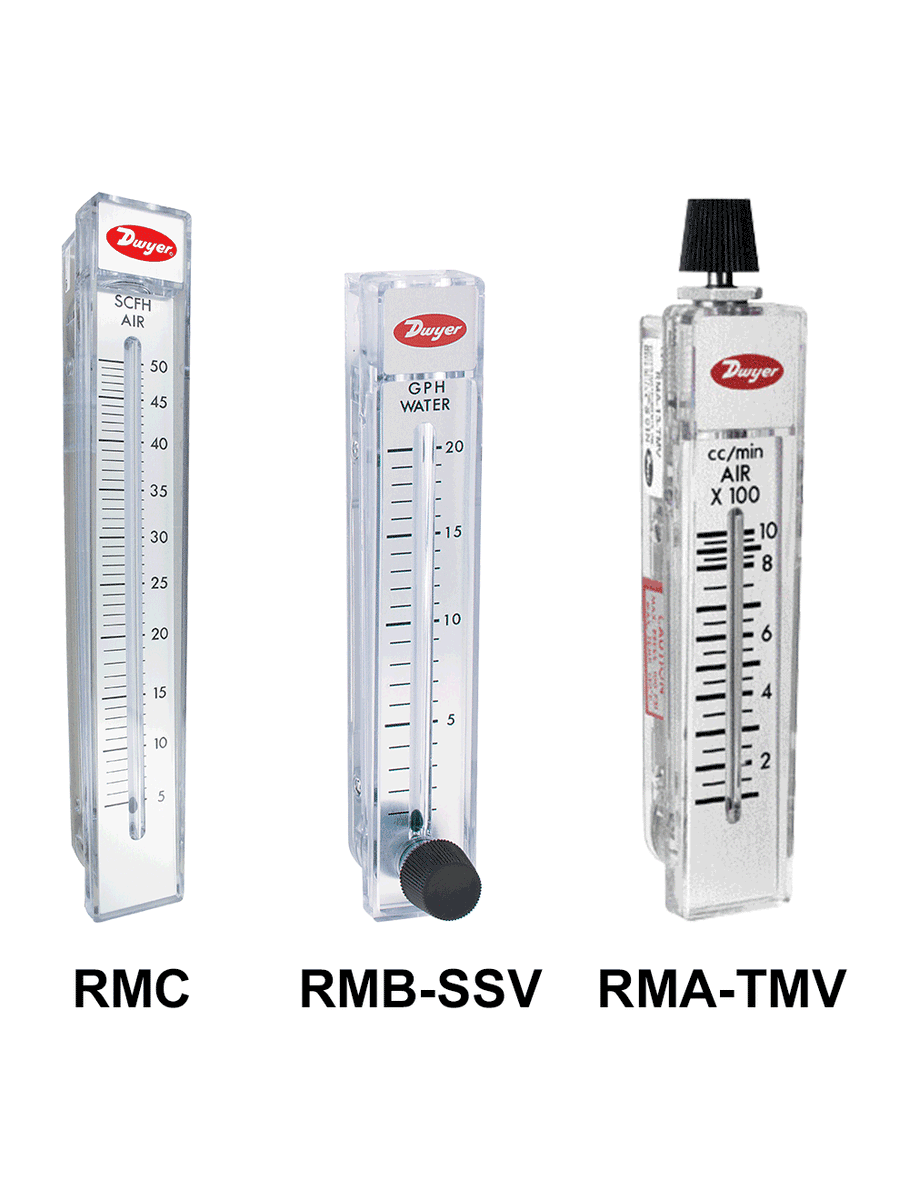

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RMC-135-SSV

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments RMC-135-SSV Documents

Instruction Manual - RKA Instruction Manual - RM Series RM Catalog Page RM More Info

Overview

Details for RMC-135-SSV

Dwyer Instruments RMC-135-SSV Flowmeter: Precision Measurement for Industrial ApplicationsThis Dwyer Instruments RMC-135-SSV flowmeter provides precise and dependable flow measurement for a range of industrial applications. Engineered for accurate and efficient performance, this flowmeter is ideal for measuring the flow rate of liquids and gases in various systems.Key Features:High Accuracy: Delivers highly accurate flow readings with excellent repeatability and linearity.Stainless Steel Construction: The flowmeter body and valve are constructed from durable stainless steel for enhanced corrosion resistance and longevity.Versatile Installation: Designed for versatility, it can be mounted in multiple orientations to accommodate various piping configurations.Easy Readability: The clear and easy-to-read scale provides quick and convenient flow rate monitoring.Applications:The RMC-135-SSV flowmeter is widely used in industrial settings for precise flow measurement, including:Chemical processing plantsPetrochemical facilitiesPower plantsWater and wastewater treatment systemsHVAC systemsWith its precision, reliability, and versatility, the Dwyer Instruments RMC-135-SSV flowmeter is an indispensable tool for industrial engineers and maintenance professionals seeking accurate and efficient flow measurement solutions.Our HVAC supply store - Your Trusted Source for Industrial SuppliesOur HVAC supply store is your one-stop shop for high-quality industrial products. As an authorized distributor of Dwyer Instruments, we offer the RMC-135-SSV flowmeter at the most competitive prices along with fast and reliable shipping. Order now and elevate your flow measurement operations with the exceptional performance of the Dwyer Instruments RMC-135-SSV flowmeter!

Series RM Rate-Master® Polycarbonate Flowmeter

2", 5" or 10" Scale, Interchangeable Bodies*

The Series RM Rate-Master® Flowmeters are a line of general use, direct reading precision flowmeters suitable for both gas and liquid applications. This Series consists of 2" (51 mm), 5" (127 mm) and 10" (254 mm) scales that can be panel or surface mounted with optional precision metering valves. Within a given Series, the Rate-Master® flowmeter bodies can be instantly interchanged, allowing the piping to remain undisturbed, interchangeability of the ranges, and easy cleaning.

NOTE: Effective immediately, the brass valve (-BV) option has been discontinued and the stainless steel valve (-SSV) is the suggested replacement.

NIST CALIBRATION available in Product Configurator.

DID YOU KNOW that you can add YOUR logo to our Rate-Master® flowmeter, call customer service for details.

California Residents: Click Here for Proposition 65 WARNING.

*The Rate-Master® flowmeter bodies can be instantly interchanged within the same series scale size, allowing the piping to remain undisturbed, interchangeability of the ranges, and easy cleaning.

Product Applications

Medical equipment
Air samplers
Gas analyzers
Pollution monitors
Chemical injectors
Cabinet purging

Eliminate the need for troublesome conversions with direct reading scales
Reduce installation damage and cost due to stainless steel backbone that absorbs piping torque
Long operation life with durable, shatter-proof polycarbonate body
High repeatability enabled by precision injection molding around a precision tapered pin
Increased reading accuracy with special integral flow guides that stabilize float movement
Save time with instantaneous flow reading from scale graduations on both sides of the indicating tube

Specifications

Series: RM Rate-Master® Polycarbonate Flowmeter
Category/Type: Flow
Type: Flowmeters
Series: RM Rate-Master® Polycarbonate Flowmeter
Service: Compatible gases and liquids.
Wetted Materials: Body: Polycarbonate; O-ring: Neoprene and Buna-N;Metal parts: SS; Float: SS; black glass;aluminum; K monel; tungsten carbide depending on range.
Temperature Limit: 130°F (54°C).
Pressure Limit: 100 psi (6.9 bar).
Accuracy: RMA: 4%; RMB: 3%; RMC: 2% of FS.
Process Connection: RMA: 1/8"; RMB: 1/4"; RMC: 1/2" female NPT.
Weight: RMA: 4 oz (113.4 g); RMB: 13 oz (368.5 g); RMC: 39 oz(1105.6 g).
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
CAUTION: Dwyer® Rate-Master® flowmeters are designed to provide satisfactorylong term service when used with air; water; or other compatible media.Refer to factory for information on questionable gases or liquids. Causticsolutions; anti-freeze (ethylene glycol) and aromatic solvents shoulddefinitely not be used.
