RMB-55-SSV | Flowmeter | range 40-400 SCFH air. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RMB-55-SSV

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments RMB-55-SSV Documents

Instruction Manual - RKA Instruction Manual - RM Series RM Catalog Page RM More Info

Overview

Details for RMB-55-SSV

Dwyer Instruments RMB-55-SSV Flowmeter: Precise and Reliable Flow Measurement The Dwyer Instruments RMB-55-SSV Flowmeter is a highly accurate and versatile flowmeter designed for a wide range of industrial applications. Featuring a robust stainless-steel construction and a Bourdon tube sensor, this flowmeter provides reliable and precise flow measurement even in demanding conditions. Key Features: â€¢ Accurate flow measurement with Â±2% full scale accuracy â€¢ Versatile mounting options for ease of installation â€¢ Wide flow range to accommodate various flow rates â€¢ Stainless steel construction ensures durability and corrosion resistance â€¢ Bourdon tube sensor for precise and stable measurements Applications: The Dwyer Instruments RMB-55-SSV Flowmeter is ideal for monitoring flow rates in various industrial applications, including: â€¢ Air and gas flow measurement in pipelines and ducts â€¢ Liquid flow measurement in closed systems â€¢ Monitoring flow rates in water treatment plants â€¢ Measuring flow rates in HVAC systems Our HVAC supply store offers competitive prices and fast shipping on the Dwyer Instruments RMB-55-SSV Flowmeter. Contact us today for a quote!

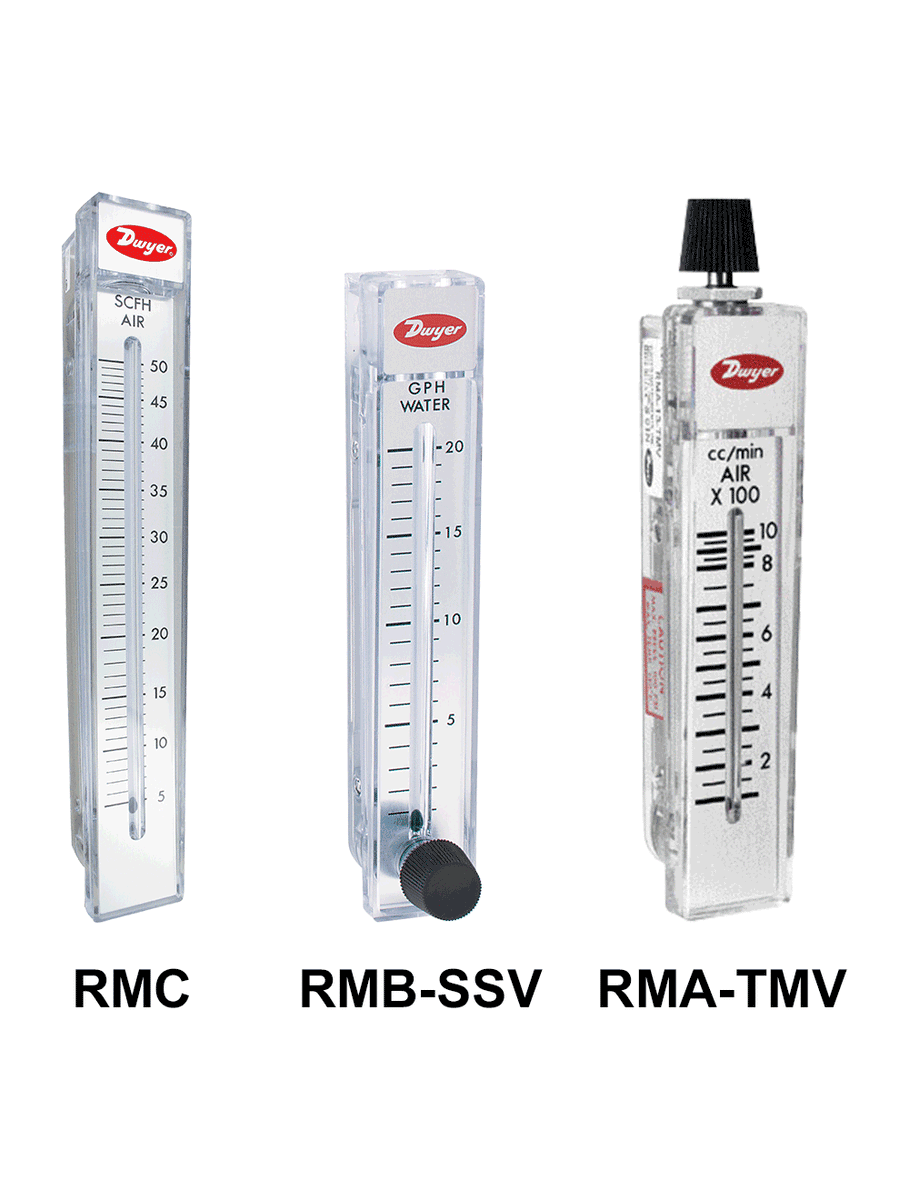

Series RM Rate-Master® Polycarbonate Flowmeter

2", 5" or 10" Scale, Interchangeable Bodies*

The Series RM Rate-Master® Flowmeters are a line of general use, direct reading precision flowmeters suitable for both gas and liquid applications. This Series consists of 2" (51 mm), 5" (127 mm) and 10" (254 mm) scales that can be panel or surface mounted with optional precision metering valves. Within a given Series, the Rate-Master® flowmeter bodies can be instantly interchanged, allowing the piping to remain undisturbed, interchangeability of the ranges, and easy cleaning.

NOTE: Effective immediately, the brass valve (-BV) option has been discontinued and the stainless steel valve (-SSV) is the suggested replacement.

NIST CALIBRATION available in Product Configurator.

DID YOU KNOW that you can add YOUR logo to our Rate-Master® flowmeter, call customer service for details.

California Residents: Click Here for Proposition 65 WARNING.

*The Rate-Master® flowmeter bodies can be instantly interchanged within the same series scale size, allowing the piping to remain undisturbed, interchangeability of the ranges, and easy cleaning.

Product Applications

Medical equipment
Air samplers
Gas analyzers
Pollution monitors
Chemical injectors
Cabinet purging

Eliminate the need for troublesome conversions with direct reading scales
Reduce installation damage and cost due to stainless steel backbone that absorbs piping torque
Long operation life with durable, shatter-proof polycarbonate body
High repeatability enabled by precision injection molding around a precision tapered pin
Increased reading accuracy with special integral flow guides that stabilize float movement
Save time with instantaneous flow reading from scale graduations on both sides of the indicating tube

Specifications

Series: RM Rate-Master® Polycarbonate Flowmeter
Category/Type: Flow
Type: Flowmeters
Series: RM Rate-Master® Polycarbonate Flowmeter
Service: Compatible gases and liquids.
Wetted Materials: Body: Polycarbonate; O-ring: Neoprene and Buna-N;Metal parts: SS; Float: SS; black glass;aluminum; K monel; tungsten carbide depending on range.
Temperature Limit: 130°F (54°C).
Pressure Limit: 100 psi (6.9 bar).
Accuracy: RMA: 4%; RMB: 3%; RMC: 2% of FS.
Process Connection: RMA: 1/8"; RMB: 1/4"; RMC: 1/2" female NPT.
Weight: RMA: 4 oz (113.4 g); RMB: 13 oz (368.5 g); RMC: 39 oz(1105.6 g).
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
CAUTION: Dwyer® Rate-Master® flowmeters are designed to provide satisfactorylong term service when used with air; water; or other compatible media.Refer to factory for information on questionable gases or liquids. Causticsolutions; anti-freeze (ethylene glycol) and aromatic solvents shoulddefinitely not be used.
