RMB-50-SSV | Flowmeter | range 1-10 SCFH air. | Dwyer Instruments

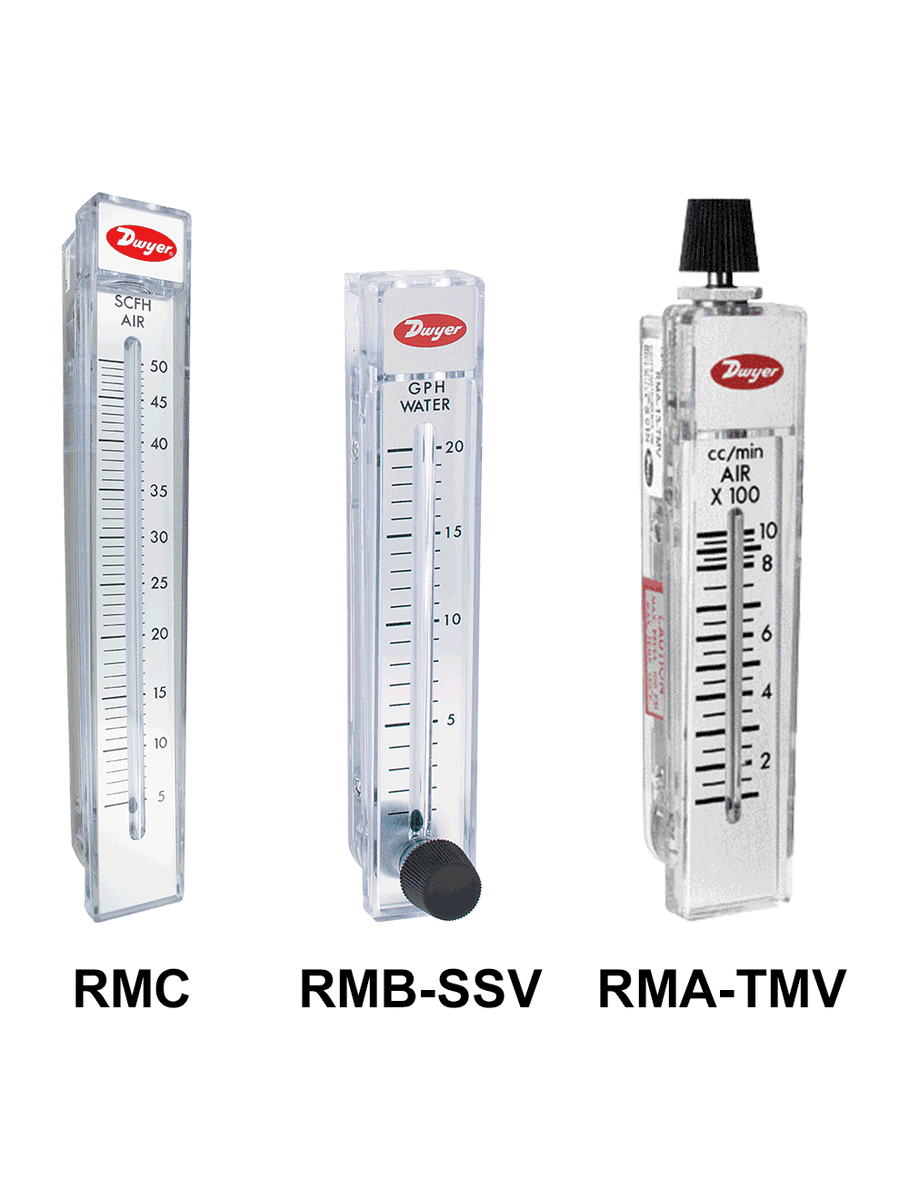

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RMB-50-SSV

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments RMB-50-SSV Documents

Instruction Manual - RKA Instruction Manual - RM Series RM Catalog Page RM More Info

Overview

Details for RMB-50-SSV

Dwyer Instruments RMB-50-SSV Flowmeter: Precise Measurement and Control The Dwyer RMB-50-SSV is a highly accurate 1-10 SCFH flowmeter designed with a 5" scale and a stainless-steel valve for precise measurement and control of gas flow. This flowmeter is commonly used in industrial and laboratory settings to measure the flow rate of various gases, including air, nitrogen, and oxygen. Its key features include: - 1-10 SCFH flow range - 5" scale for easy reading - Stainless-steel valve for durability and corrosion resistance - Compact design for easy installation and use - NPT threads for secure connections The RMB-50-SSV flowmeter is a versatile tool for monitoring and adjusting gas flow in a variety of applications, including: - Gas leak detection - Process control - Laboratory analysis - HVAC systems - Pneumatic testing - Industrial manufacturing our HVAC supply store offers the Dwyer RMB-50-SSV flowmeter at competitive prices with fast shipping. Contact us today to place your order and experience the benefits of this precision flow measurement device!

Series RM Rate-Master® Polycarbonate Flowmeter

2", 5" or 10" Scale, Interchangeable Bodies*

The Series RM Rate-Master® Flowmeters are a line of general use, direct reading precision flowmeters suitable for both gas and liquid applications. This Series consists of 2" (51 mm), 5" (127 mm) and 10" (254 mm) scales that can be panel or surface mounted with optional precision metering valves. Within a given Series, the Rate-Master® flowmeter bodies can be instantly interchanged, allowing the piping to remain undisturbed, interchangeability of the ranges, and easy cleaning.

NOTE: Effective immediately, the brass valve (-BV) option has been discontinued and the stainless steel valve (-SSV) is the suggested replacement.

NIST CALIBRATION available in Product Configurator.

DID YOU KNOW that you can add YOUR logo to our Rate-Master® flowmeter, call customer service for details.

California Residents: Click Here for Proposition 65 WARNING.

*The Rate-Master® flowmeter bodies can be instantly interchanged within the same series scale size, allowing the piping to remain undisturbed, interchangeability of the ranges, and easy cleaning.

Product Applications

Medical equipment
Air samplers
Gas analyzers
Pollution monitors
Chemical injectors
Cabinet purging

Eliminate the need for troublesome conversions with direct reading scales
Reduce installation damage and cost due to stainless steel backbone that absorbs piping torque
Long operation life with durable, shatter-proof polycarbonate body
High repeatability enabled by precision injection molding around a precision tapered pin
Increased reading accuracy with special integral flow guides that stabilize float movement
Save time with instantaneous flow reading from scale graduations on both sides of the indicating tube

Specifications

Series: RM Rate-Master® Polycarbonate Flowmeter
Category/Type: Flow
Type: Flowmeters
Series: RM Rate-Master® Polycarbonate Flowmeter
Service: Compatible gases and liquids.
Wetted Materials: Body: Polycarbonate; O-ring: Neoprene and Buna-N;Metal parts: SS; Float: SS; black glass;aluminum; K monel; tungsten carbide depending on range.
Temperature Limit: 130°F (54°C).
Pressure Limit: 100 psi (6.9 bar).
Accuracy: RMA: 4%; RMB: 3%; RMC: 2% of FS.
Process Connection: RMA: 1/8"; RMB: 1/4"; RMC: 1/2" female NPT.
Weight: RMA: 4 oz (113.4 g); RMB: 13 oz (368.5 g); RMC: 39 oz(1105.6 g).
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU (RoHS II).
CAUTION: Dwyer® Rate-Master® flowmeters are designed to provide satisfactorylong term service when used with air; water; or other compatible media.Refer to factory for information on questionable gases or liquids. Causticsolutions; anti-freeze (ethylene glycol) and aromatic solvents shoulddefinitely not be used.
