RHU-R008 | Humidity Transmitter | 8' cable | current output. | Dwyer Instruments
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to RHU-R008
Documents and manuals
Dwyer Instruments RHU-R008 Documents
Overview
Details for RHU-R008

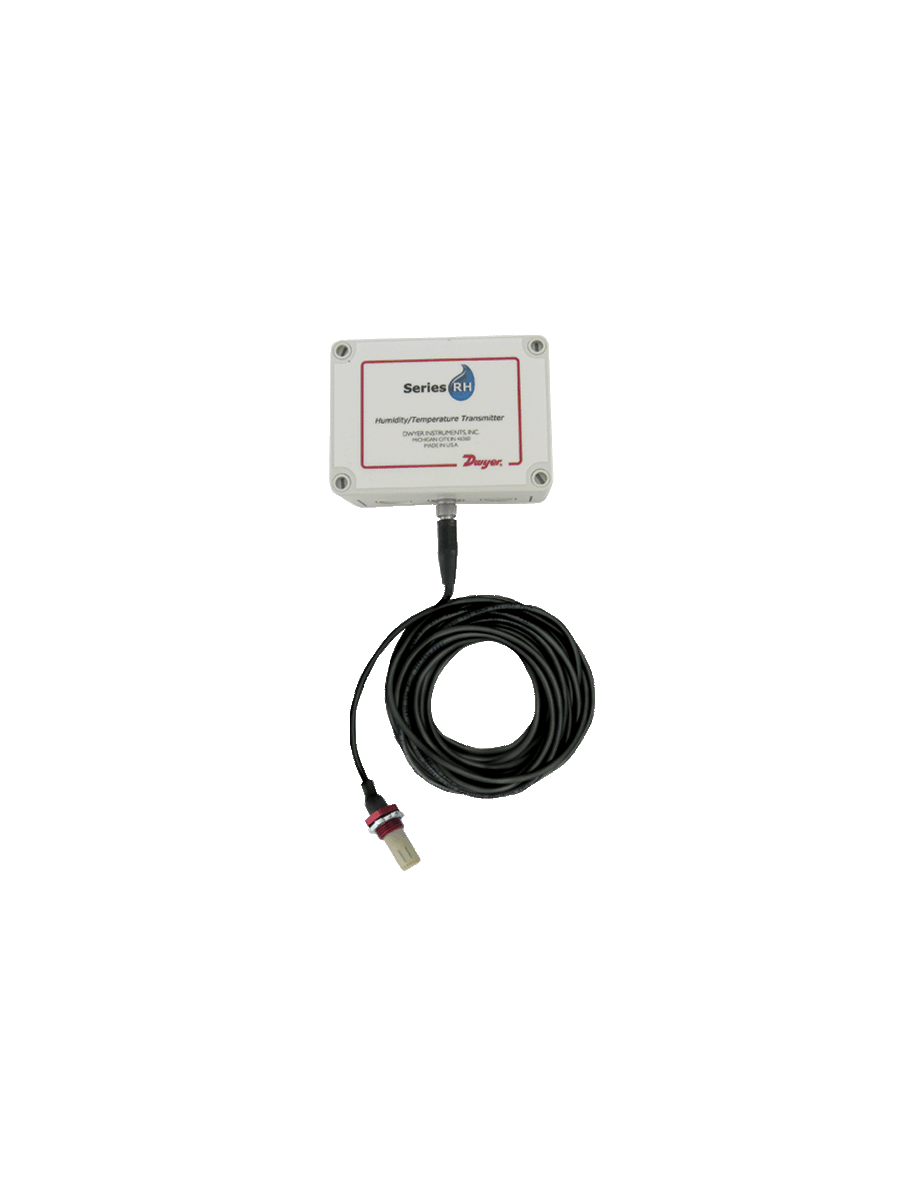

Dwyer Instruments RHU-R008 Humidity Transmitter
Dwyer Instruments' RHU-R008 Humidity Transmitter delivers precise humidity measurements for demanding industrial applications. Its rugged construction ensures reliable operation in harsh environments, while its 4-20 mA or 0-10 V DC output signal provides easy integration with various control systems. With a measurement range of 0-100% RH and an accuracy of ±3% RH, this transmitter offers unmatched precision for critical humidity monitoring.
The Dwyer Instruments RHU-R008 Humidity Transmitter is specifically designed for industrial applications where accurate humidity measurement is crucial. Its wide temperature range of -20°F to 140°F and humidity range of 0-100% RH make it ideal for monitoring environments such as warehouses, manufacturing floors, and data centers. Its compact size and easy-to-install design allow for quick and convenient deployment.
This transmitter is also highly versatile, with multiple output options and a configurable response delay. Its 4-20 mA or 0-10 V DC output signal allows for compatibility with a wide range of instrumentation and control systems. Additionally, the adjustable response delay enables customization of the transmitter's response time, ensuring optimal performance for specific applications.
At our HVAC supply store, we offer the best prices and fast shipping on the Dwyer Instruments RHU-R008 Humidity Transmitter. Trust our expertise for your industrial supply needs and experience the precision and reliability of Dwyer Instruments products. Shop now!
Series RH-R Humidity/Temperature Transmitter
Remote Mount, Field Replaceable Sensor Filter, Up to 16' Cable
The Series RH-R Humidity Transmitter is the ideal transmitter for those applications where space is limited. The compact sensor is protected by a removable filter. It can be mounted up to 16 feet away from the weatherproof base. The Series RH-R is ideal for environmental chambers, rubber bladder burst detection and air handler applications.
Product Applications
- Process system monitoring
- Environmental chambers
- Air economizers
- Cable lengths from 4 to 16´
- Remote housing allows for flexibility sensing where space may be limited
Specifications
- Series
- RH-R Humidity/Temperature Transmitter
- Category/Type
- Air Quality
- Type
- Humidity / Temperature Transmitters
- Series
- RH-R Humidity/Temperature Transmitter
- Service
- Dry clean air.
- Relative Humidity Range
- 0 to 100% RH.
- Temperature Range
- -40 to 140°F (-40 to 60°C).
- Accuracy
- ±2% @ 10 to 90%.
- Temperature Limits
- -40 to 140°F (-40 to 60°C).
- Storage Temperature
- -40 to 176°F (-40 to 80°C).
- Compensated Temperature Range
- -4 to 140°F (-20 to 60°C).
- Power Requirements
- 10 to 35 VDC.
- Output Signal
- 4 to 20 mA loop powered.
- Response Time
- Less than 15 s.
- Electrical Connections
- Terminal block.
- Conduit Connection
- 1/2" NPT.
- Process Connection
- 1/2 NPSM.
- Drift
- Less than 1%/year.
- RH Sensor
- Capacitance polymer.
- Cable Length
- Up to 16'.
- Housing Material
- Polycarbonate; aluminum enclosure.
- Enclosure Rating
- NEMA 4X (IP66).
