RHP-3O10 | OSA 3% RH transmitter with 4-20 mA RH output. | Dwyer Instruments

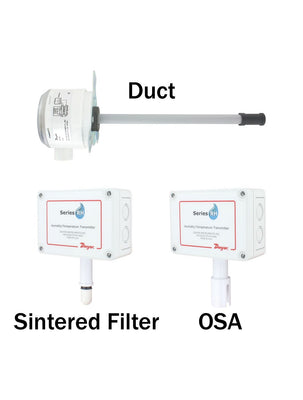

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RHP-3O10

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments RHP-3O10 Documents

Instruction Manual Series RHP Catalog Page RHP Dwyer slideshow More Info

Overview

Details for RHP-3O10

RHP-3O10 Dwyer Instruments: Precision Pressure Transmitter for Demanding Industrial Applications The RHP-3O10 from Dwyer Instruments is a rugged and reliable pressure transmitter designed to provide accurate and stable pressure readings in demanding industrial environments. Key features include: * High accuracy: Â±0.5% of span, providing precise and reliable measurements * Wide pressure range: 0-100 psi, allowing for versatility in various applications * 4-20mA output: Industry-standard output for easy integration with control systems * NEMA 4 enclosure: Protects against dust, moisture, and corrosion, ensuring long-lasting performance Benefits: * Enhanced process control: Accurate pressure readings enable precise control of processes, leading to improved efficiency and reduced downtime * Reliable performance: Robust construction and high-quality components ensure reliability in harsh conditions * Easy installation and maintenance: Standard output and mounting options allow for quick and cost-effective installation and maintenance Applications: The RHP-3O10 is ideal for a wide range of industrial applications, including: * Process control * Fluid power * Environmental monitoring * HVAC systems Our HVAC supply store offers the best prices and fast shipping for the RHP-3O10 Dwyer Instruments pressure transmitter. Upgrade your industrial processes today with this high-performance pressure measurement solution!

SERIES RHP HUMIDITY/TEMPERATURE TRANSMITTER

Passive Temperature Outputs, Sintered Filter Options

The Series RHP Temperature and Humidity Transmitter combine the voltage or current humidity transmitter output with a passive temperature thermistor or RTD output. Featuring polymer capacitance humidity sensors, models are available in 2%, 3% or 5% accuracies. Duct mounted transmitters are available with an optional two-line alpha numeric LCD display.

For models with resistive thermistors or RTD outputs, please click here for temperature to resistance lookup tables.

NIST CALIBRATION available in Product Configurator.

Product Applications

Air economizers
Outdoor temperature and relative humidity reference
Pool room humidity monitoring

2%, 3%, or 5% accuracy models
Optional LCD display on duct mount models
Radiation shield option for outdoor installation in direct sunlight

Specifications

Series: RHP HUMIDITY/TEMPERATURE TRANSMITTER
Category/Type: Air Quality
Type: Humidity / Temperature Transmitters
Series: RHP HUMIDITY/TEMPERATURE TRANSMITTER
Relative Humidity Range: 0 to 100% RH.
Temperature Range: -40 to 140°F (-40 to 60°C).
Accuracy; RH: RHP-2XXX ±2% 10 to 90% RH @ 25°C;RHP-3XXX ±3% 20 to 80% RH @ 25°C;RHP-5XXX ±5% 20 to 80% RH @ 25°C.
Accuracy; Thermistor Temp Sensor: ±0.2°C @ 25°C (±0.36°F @ 77°F).
Accuracy; RTD Temp Sensor: DIN Class B; ±0.3°C @ 0°C (±0.54°F @ 32°F).
Accuracy; Solid State Band Gap: ±0.9°F @ 77°F (±0.5°C @ 25°C).
Hysteresis: ±1%.
Repeatability: ±0.1% typical.
Temperature Limits: -40 to 140°F (-40 to 60°C).
Storage Temperature: -40 to 176°F (-40 to 80°C).
Compensated Temperature Range: -4 to 140°F (-20 to 60°C).
Power Requirements: 4-20 mA loop powered models: 10-35 VDC; 0-5/10 V outputmodels: 15-35 VDC or 15-29 VAC.
Output Signal (Model Dependent): 4-20 mA; 0-5/10V @ 5 mA max.
Response Time: 15 s.
Electrical Connections: Removable screw terminal block.
Conduit Connection: Duct Mount: 1/2" NPS; OSA: 1/2" (22.3 mm).
Drift: <1% RH/year.
RH Sensor: Capacitance polymer.
Temperature Sensor: >Types 1; 2; 3: Solid state band gap;Curves A;B;C; Thermistor; Curves D;E; Platinum RTD DIN 385. (See R-T Lookup Table).
Enclosure Material: Duct mount sensor tube: PVC-UL 94 V-0; Duct mount sensorcap: Polycarbonate ABS blend-greater than UL 94 V-0; Duct mount electronicshousing and cover: Makrolon® polycarbonate-UL 94V-HB; OSA: Polycarbonate.
Enclosure Rating: Duct mount: NEMA 4X (IP66) for housing only; OSA: NEMA 4X (IP66).
Display: Duct Mount only; optional 2-line alpha numeric; 8 characters/line.
Display Resolution: RH: 0.1%; 0.1°F (0.1°C).
Weight: Duct Mount: .616 lb (.3 kg) OSA: 1 lb (.45 kg).
Agency Approvals: CE.
