RHP-2N44 | North American Wall Mount Humidity / Temperature Transmitter with 2% accuracy and universal current / voltage output for RH and Temperature | Dwyer Instruments

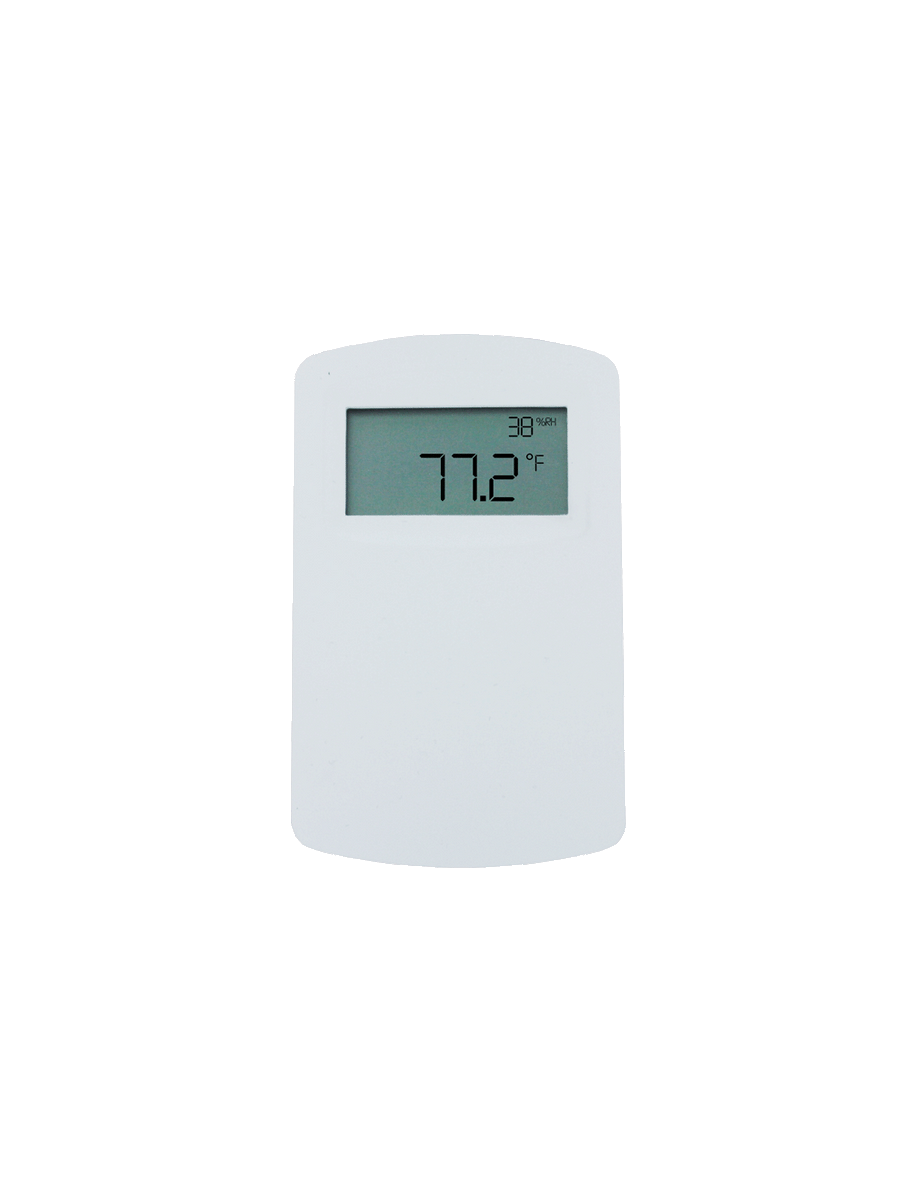

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RHP-2N44

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments RHP-2N44 Documents

Instruction Manual Series RHP-E/N Catalog Page RHP-E/N Dwyer slideshow More Info

Overview

Details for RHP-2N44

Dwyer Instruments RHP-2N44 Humidity/Temperature Transmitter The Dwyer Instruments RHP-2N44 is a precise and reliable humidity and temperature transmitter designed for industrial applications. This device offers accurate and stable measurements of both relative humidity and temperature, making it an ideal solution for monitoring and controlling environmental conditions in various environments. The RHP-2N44 features a compact design with a rugged construction, ensuring durability and longevity. Its advanced sensor technology provides fast response times and high accuracy, delivering reliable data for critical applications. The transmitter's wide measurement range of 0 to 100% RH and -22 to 140Â°F (-30 to 60Â°C) covers a diverse range of environmental conditions. With configurable analog outputs, the RHP-2N44 provides flexibility for integration with control systems, data loggers, or other measurement devices. Its user-friendly interface allows for easy setup and calibration, ensuring quick deployment and reliable operation. The transmitter is powered by a standard 24 VDC power supply, making it suitable for most industrial environments. Key Features: * Accurate and stable measurements of humidity and temperature * Wide measurement range (0 to 100% RH, -22 to 140Â°F) * Rugged construction for durability in harsh environments * Fast response times for real-time monitoring * Configurable analog outputs for easy integration * User-friendly interface for quick setup and calibration * 24 VDC power supply for versatile deployment Applications: * HVAC systems * Environmental monitoring * Industrial processes * Data centers * Museums and archives * Greenhouses and agricultural facilities Shop our HVAC supply store for the best prices and fast shipping on the Dwyer Instruments RHP-2N44 Humidity/Temperature Transmitter. Trust us for reliable products and exceptional service to meet all your industrial supply needs.

Series RHP-E/N Wall Mount Humidity/Temperature/Dew Point Transmitter

Optional LCD Display

The Series RHP-E/N Wall Mount Humidity/Temperature/Dew Point Transmitteris the most versatile room transmitter on the market. The stylish housing is well vented to provide air flow across the sensor to improve measurement accuracy. The humidity and the dew point are measured using a capacitive polymer sensorthat completely recovers from 100% saturation. The humidity and dew point canhave either a current or voltage output, while the optional temperature output canbe a current, voltage, RTD or thermistor. For models with current or voltage for thetemperature output, the temperature range is field selectable.

For models with resistive thermistors or RTD outputs, please click here for temperature to resistance lookup tables.

Product Applications

Air economizers
Room comfort monitoring
Greenhouse monitoring

Field selectable relative humidity or dew point output
Universal analog outputs
Integral or service tool LCD display options
Two housing designs to match North American and European aesthetics

Specifications

Series: RHP-E/N Wall Mount Humidity/Temperature/Dew Point Transmitter
Category/Type: Air Quality
Type: Humidity / Temperature Transmitters
Series: RHP-E/N Wall Mount Humidity/Temperature/Dew Point Transmitter
Relative Humidity Range: 0 to 100% RH.
Temperature Range: -40 to 140°F (-40 to 60°C) for thermistor and RTD sensors.-20 to 140°F (-28.9 to 60°C) for solid state band gap temperature sensors.
Dew Point Temperature Range: -20 to 140°F (-28.9 to 60°C); 0 to 100°F(-17.8 to 37.8°C); 40 to 90°F (4.4 to 32.3°C); -4 to 140°F (-20 to 60°C) field selectableranges.
Accuracy: RH: Model RHP-2XXX ±2% 10 to 90% RH @ 25°C; Model RHP-3XXX ±3% 20 to80% RH @ 25°C; Model RHP-5XXX ±5% 20 to 80% RH @ 25°C;Thermistor temperature sensor: ±0.36°F @ 77°F (±0.2°C @ 25°C);RTD temperature sensor: DIN Class B; ±0.54°F @ 32°F (±0.3°C @ 0°C);Solid state band gap temperature sensor: ±0.9°F @ 77°F (±0.3°C @ 25°C).
Hysteresis: ±.8%.
Repeatability: ±0.1% typical.
Temperature Limits: Operating: -40 to 140°F (-40 to 60°C);Storage: -40 to 176°F (-40 to 80°C).
Compensated Temperature Range: -4 to 140°F (-20 to 60°C).
Power Requirements: 4-20 mA loop powered outputs: 10-35 VDC; 0-5/10Voutputs: 15-35 VDC or 15-29 VAC.
Output Signals: 4-20 mA loop powered outputs: 4-20 mA; 2 channels for humidity/solid state temperature sensor models (loop powered on RH). Switch selectableRH/dew point. Switch selectable normal or reverse output; 0-5/10V outputs: 5mA max.; 2 channels for humidity/solid state temperature sensor models. Switchselectable 0-10 V/2-10 V or 0-5 V/1-5 V output. Switch selectable RH/dew point.Switch selectable normal or reverse output.
Solid State Band Gap Temp Sensor Output Ranges: Switch selectable; -20 to 140°F (-28.9 to 60°C); 0 to 100°F (-17.8 to 37.8°C); 40 to 90°F (4.4 to32.3°C); -4 to 140°F (-20 to 60°C).
Response Time: 8 s.
Electrical Connections: Screw terminal block.
Drift: <.25% RH/year.
RH Sensor: Capacitance polymer.
Enclosure Material: Polycarbonate.
Enclosure Rating: IP20.
Display: Optional LCD; Switch selectable %RH or dew point; °F/°C.
Display Resolution: RH: 1%; Temperature: 0.1°F (0.1°C); Dew Point: 1°F (1°C).
Weight: 4.4 oz (125 g).
Agency Approvals: CE.
