RHP-2N40 | North American Wall Mount Humidity Transmitter with 2% accuracy and universal current / voltage output for RH | Dwyer Instruments

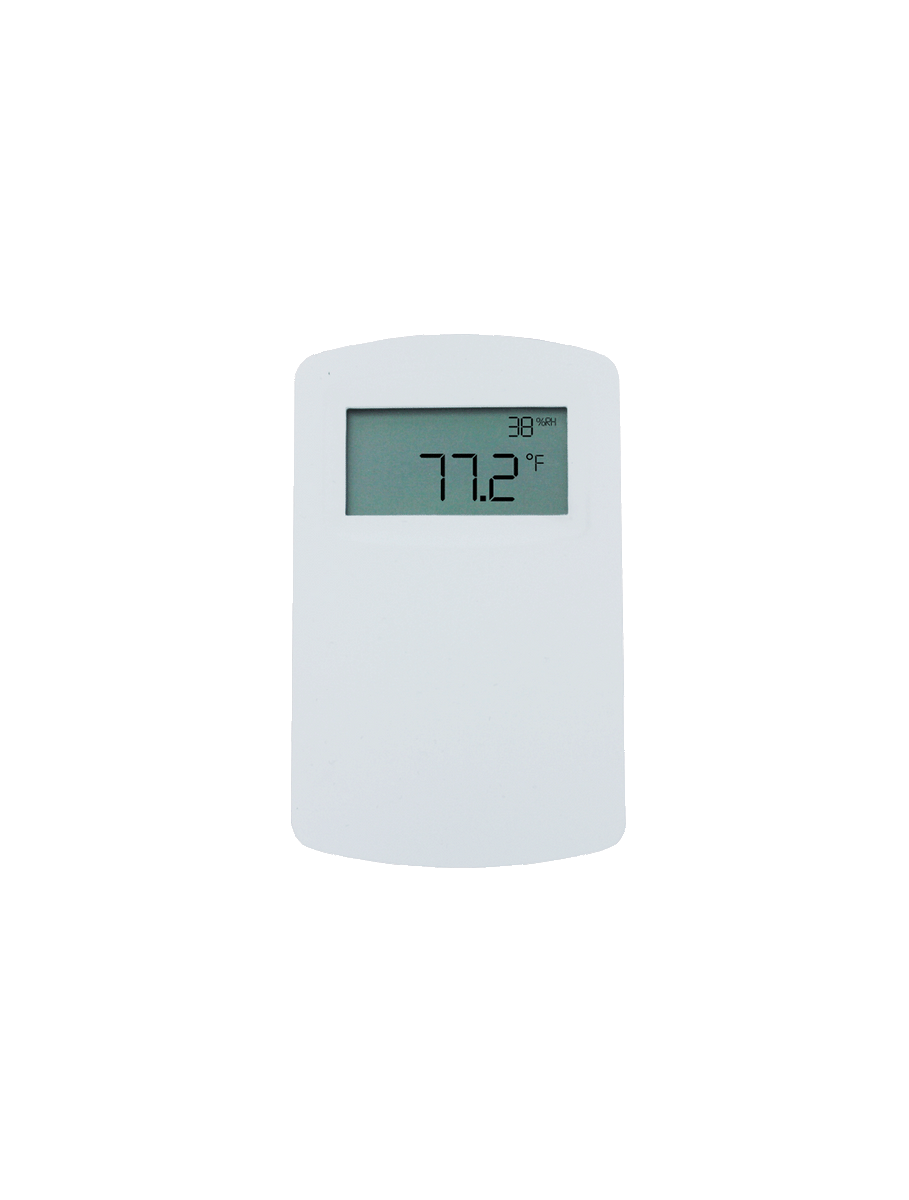

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RHP-2N40

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments RHP-2N40 Documents

Instruction Manual Series RHP-E/N Catalog Page RHP-E/N Dwyer slideshow More Info

Overview

Details for RHP-2N40

Dwyer Instruments RHP-2N40 Relative Humidity Transmitter: Accurate Monitoring for Industrial Environments The Dwyer Instruments RHP-2N40 is a high-precision humidity transmitter designed to provide reliable and accurate relative humidity measurements in industrial environments. With its 2% accuracy, it offers exceptional performance for critical applications where precise humidity control is essential. This transmitter features a universal current/voltage output, enabling easy integration into various control systems. It operates over a wide humidity range, providing accurate readings even in challenging conditions. Its rugged construction, with a NEMA 4 enclosure rating, ensures reliable operation in harsh industrial settings. The RHP-2N40 is simple to install, with built-in mounting flanges for quick and easy integration into your existing infrastructure. Key Features: * High accuracy of 2% * Universal current/voltage output for seamless integration * Wide humidity measurement range * Durable construction for demanding industrial environments * Easy installation with built-in mounting flanges Applications: * Industrial process control * HVAC systems * Environmental monitoring * Warehousing and storage facilities Upgrade your humidity monitoring system today with the Dwyer Instruments RHP-2N40 Relative Humidity Transmitter. Our HVAC supply store offers competitive prices and fast shipping to meet your project deadlines. Contact us today to learn more!

Series RHP-E/N Wall Mount Humidity/Temperature/Dew Point Transmitter

Optional LCD Display

The Series RHP-E/N Wall Mount Humidity/Temperature/Dew Point Transmitteris the most versatile room transmitter on the market. The stylish housing is well vented to provide air flow across the sensor to improve measurement accuracy. The humidity and the dew point are measured using a capacitive polymer sensorthat completely recovers from 100% saturation. The humidity and dew point canhave either a current or voltage output, while the optional temperature output canbe a current, voltage, RTD or thermistor. For models with current or voltage for thetemperature output, the temperature range is field selectable.

For models with resistive thermistors or RTD outputs, please click here for temperature to resistance lookup tables.

Product Applications

Air economizers
Room comfort monitoring
Greenhouse monitoring

Field selectable relative humidity or dew point output
Universal analog outputs
Integral or service tool LCD display options
Two housing designs to match North American and European aesthetics

Specifications

Series: RHP-E/N Wall Mount Humidity/Temperature/Dew Point Transmitter
Relative Humidity Range: 0 to 100% RH.
Temperature Range: -40 to 140°F (-40 to 60°C) for thermistor and RTD sensors.-20 to 140°F (-28.9 to 60°C) for solid state band gap temperature sensors.
Dew Point Temperature Range: -20 to 140°F (-28.9 to 60°C); 0 to 100°F(-17.8 to 37.8°C); 40 to 90°F (4.4 to 32.3°C); -4 to 140°F (-20 to 60°C) field selectableranges.
Accuracy: RH: Model RHP-2XXX ±2% 10 to 90% RH @ 25°C; Model RHP-3XXX ±3% 20 to80% RH @ 25°C; Model RHP-5XXX ±5% 20 to 80% RH @ 25°C;Thermistor temperature sensor: ±0.36°F @ 77°F (±0.2°C @ 25°C);RTD temperature sensor: DIN Class B; ±0.54°F @ 32°F (±0.3°C @ 0°C);Solid state band gap temperature sensor: ±0.9°F @ 77°F (±0.3°C @ 25°C).
Hysteresis: ±.8%.
Repeatability: ±0.1% typical.
Temperature Limits: Operating: -40 to 140°F (-40 to 60°C);Storage: -40 to 176°F (-40 to 80°C).
Compensated Temperature Range: -4 to 140°F (-20 to 60°C).
Power Requirements: 4-20 mA loop powered outputs: 10-35 VDC; 0-5/10Voutputs: 15-35 VDC or 15-29 VAC.
Output Signals: 4-20 mA loop powered outputs: 4-20 mA; 2 channels for humidity/solid state temperature sensor models (loop powered on RH). Switch selectableRH/dew point. Switch selectable normal or reverse output; 0-5/10V outputs: 5mA max.; 2 channels for humidity/solid state temperature sensor models. Switchselectable 0-10 V/2-10 V or 0-5 V/1-5 V output. Switch selectable RH/dew point.Switch selectable normal or reverse output.
Solid State Band Gap Temp Sensor Output Ranges: Switch selectable; -20 to 140°F (-28.9 to 60°C); 0 to 100°F (-17.8 to 37.8°C); 40 to 90°F (4.4 to32.3°C); -4 to 140°F (-20 to 60°C).
Response Time: 8 s.
Electrical Connections: Screw terminal block.
Drift: <.25% RH/year.
RH Sensor: Capacitance polymer.
Enclosure Material: Polycarbonate.
Enclosure Rating: IP20.
Display: Optional LCD; Switch selectable %RH or dew point; °F/°C.
Display Resolution: RH: 1%; Temperature: 0.1°F (0.1°C); Dew Point: 1°F (1°C).
Weight: 4.4 oz (125 g).
Agency Approvals: CE.
