RHP-2D1A | Duct mount 2% RH/temperature transmitter with 4-20 mA RH output and 10K Curve A passive temperature output. | Dwyer Instruments

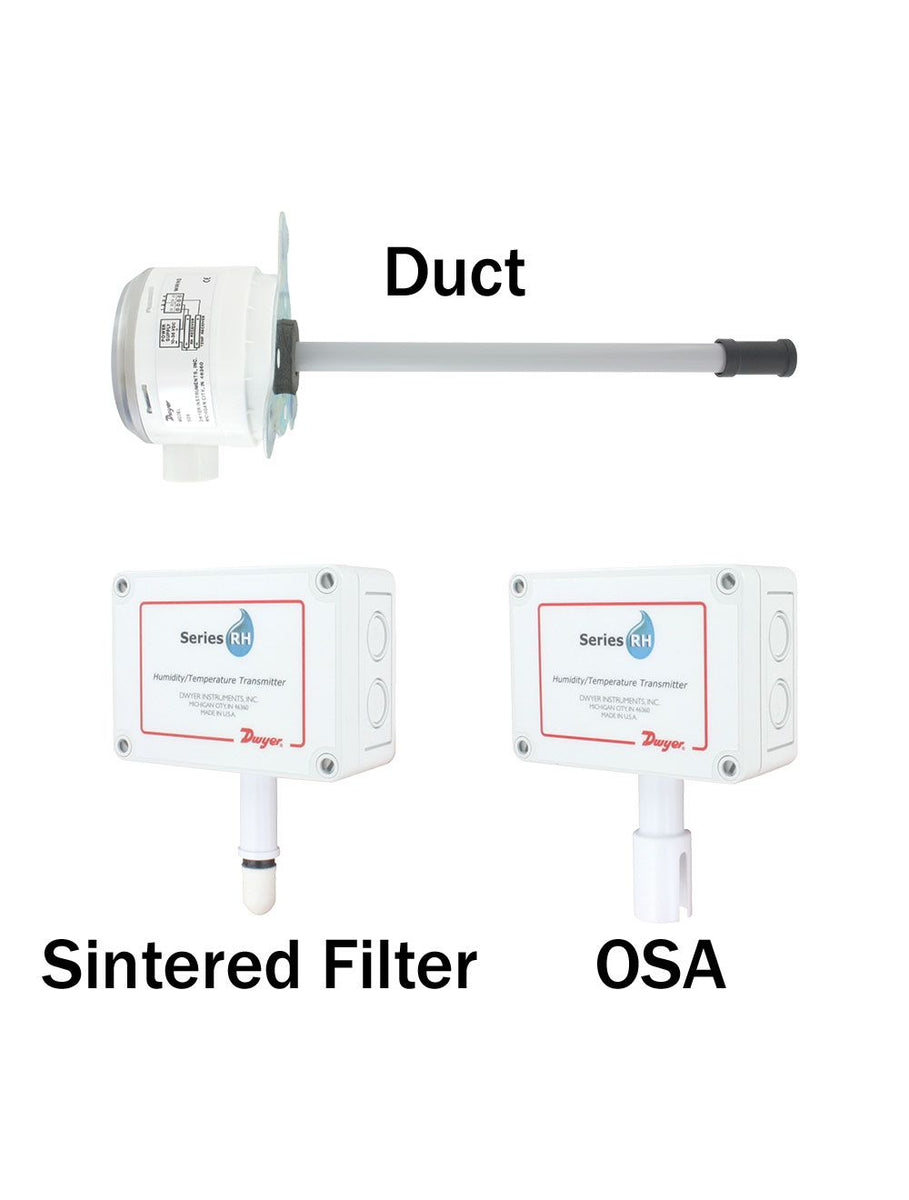

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RHP-2D1A

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments RHP-2D1A Documents

Instruction Manual Series RHP Catalog Page RHP Dwyer slideshow More Info

Overview

Details for RHP-2D1A

Temperature/Humidity Sensor: RHP-2D1A by Dwyer Instruments Monitor critical environmental conditions with the RHP-2D1A Temperature/Humidity Sensor from Dwyer Instruments. This sensor delivers accurate and reliable readings of temperature and relative humidity, making it indispensable for industrial and commercial environments. Its compact size and IP65-rated housing ensure durability in challenging conditions, while its 4-20 mA output enables seamless integration with control systems. The sensor leverages the highly accurate Dwyer Series RHT digital humidity and temperature probe for exceptional precision. With its high stability and exceptional measurement range (-4Â°F to 122Â°F for temperature, 0 to 100% for humidity), the RHP-2D1A provides dependable data for critical environmental monitoring applications. Key Features and Benefits: * Accurate and reliable temperature and humidity measurements * Compact and durable IP65-rated housing * 4-20 mA output for easy integration with control systems * High stability and exceptional measurement range Call our HVAC supply store for the RHP-2D1A Temperature/Humidity Sensor. Our expert sales team is ready to assist you with product selection, pricing, and fast shipping!

SERIES RHP HUMIDITY/TEMPERATURE TRANSMITTER

Passive Temperature Outputs, Sintered Filter Options

The Series RHP Temperature and Humidity Transmitter combine the voltage or current humidity transmitter output with a passive temperature thermistor or RTD output. Featuring polymer capacitance humidity sensors, models are available in 2%, 3% or 5% accuracies. Duct mounted transmitters are available with an optional two-line alpha numeric LCD display.

For models with resistive thermistors or RTD outputs, please click here for temperature to resistance lookup tables.

NIST CALIBRATION available in Product Configurator.

Product Applications

Air economizers
Outdoor temperature and relative humidity reference
Pool room humidity monitoring

2%, 3%, or 5% accuracy models
Optional LCD display on duct mount models
Radiation shield option for outdoor installation in direct sunlight

Specifications

Series: RHP HUMIDITY/TEMPERATURE TRANSMITTER
Category/Type: Air Quality
Type: Humidity / Temperature Transmitters
Series: RHP HUMIDITY/TEMPERATURE TRANSMITTER
Relative Humidity Range: 0 to 100% RH.
Temperature Range: -40 to 140°F (-40 to 60°C).
Accuracy; RH: RHP-2XXX ±2% 10 to 90% RH @ 25°C;RHP-3XXX ±3% 20 to 80% RH @ 25°C;RHP-5XXX ±5% 20 to 80% RH @ 25°C.
Accuracy; Thermistor Temp Sensor: ±0.2°C @ 25°C (±0.36°F @ 77°F).
Accuracy; RTD Temp Sensor: DIN Class B; ±0.3°C @ 0°C (±0.54°F @ 32°F).
Accuracy; Solid State Band Gap: ±0.9°F @ 77°F (±0.5°C @ 25°C).
Hysteresis: ±1%.
Repeatability: ±0.1% typical.
Temperature Limits: -40 to 140°F (-40 to 60°C).
Storage Temperature: -40 to 176°F (-40 to 80°C).
Compensated Temperature Range: -4 to 140°F (-20 to 60°C).
Power Requirements: 4-20 mA loop powered models: 10-35 VDC; 0-5/10 V outputmodels: 15-35 VDC or 15-29 VAC.
Output Signal (Model Dependent): 4-20 mA; 0-5/10V @ 5 mA max.
Response Time: 15 s.
Electrical Connections: Removable screw terminal block.
Conduit Connection: Duct Mount: 1/2" NPS; OSA: 1/2" (22.3 mm).
Drift: <1% RH/year.
RH Sensor: Capacitance polymer.
Temperature Sensor: >Types 1; 2; 3: Solid state band gap;Curves A;B;C; Thermistor; Curves D;E; Platinum RTD DIN 385. (See R-T Lookup Table).
Enclosure Material: Duct mount sensor tube: PVC-UL 94 V-0; Duct mount sensorcap: Polycarbonate ABS blend-greater than UL 94 V-0; Duct mount electronicshousing and cover: Makrolon® polycarbonate-UL 94V-HB; OSA: Polycarbonate.
Enclosure Rating: Duct mount: NEMA 4X (IP66) for housing only; OSA: NEMA 4X (IP66).
Display: Duct Mount only; optional 2-line alpha numeric; 8 characters/line.
Display Resolution: RH: 0.1%; 0.1°F (0.1°C).
Weight: Duct Mount: .616 lb (.3 kg) OSA: 1 lb (.45 kg).
Agency Approvals: CE.
