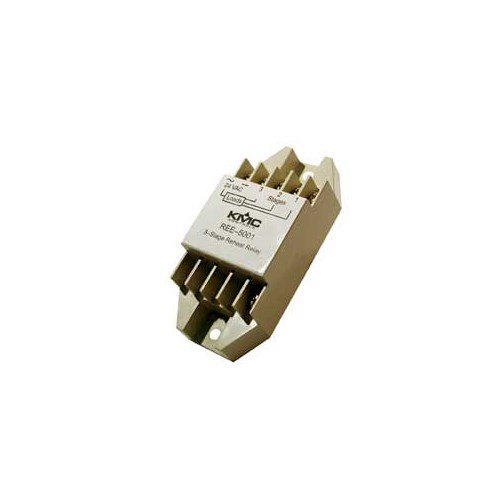

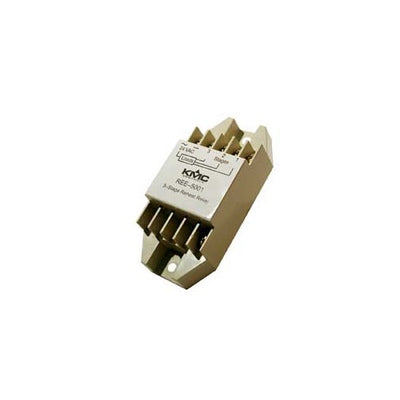

REE-5001 | Relay: Reheat, 0-10VDC Input | KMC Controls

REE-5001 Relay from KMC Controls: The REE-5001 relay is a highly reliable and efficient three-stage reheat relay, designed to meet the demanding requirements of industrial applications. Its compact and robust construction makes it suitable for use in space-constrained environments. The relay's three-stage design provides precise control of temperature and humidity levels, while its durable construction ensures long-lasting performance. This KMC Controls relay is a cost-effective solution for a wide range of industrial applications, including HVAC systems, manufacturing processes, and more. Our HVAC supply store offers the best prices and fast shipping on all KMC Controls products, including the REE-5001 relay. Contact us today to learn more about this product and how it can benefit your operation!

These triac relay modules are designed primarily for use with VAV terminal units in HVAC systems. When used in conjunction with reverse acting outputs of the CTE-5100 series room thermostats, up to three stages of heating or cooling may be controlled.

The REE-5001 is most typically used with CTE-5104 thermostats, but it can also be used with the RA outputs of the CTE-5102 and CTE-5103.

The REE-5501 (with isolated outputs) is most typically used with BAC-5841-16 and BAC-5842-16 VAV Advanced Application Controllers to control a fan and two stages of heating or cooling (see the documents for those controllers for more information).

Each output circuit is capable of handling contactors of up to 10 VA @ 24 VAC. The three circuits are calibrated to actuate at equally spaced intervals across the thermostat’s proportional band.

By using the REE-5001/5501, heating or cooling requirements may be actuated in three separate steps, providing precise temperature control.
