RCC-1109 | Relay: Diverting, Bracket | KMC Controls

The RCC-1109 from KMC Controls is a diverting relay with bracket designed to operate within a pressure range of 3-23 PSI. This highly specialized relay is commonly used in industrial applications where precise control of pneumatic or hydraulic systems is essential. Its rugged construction ensures zuverlässige Leistung in demanding environments, and its compact design allows for easy installation in confined spaces. Key Features: - Pressure range: 3-23 PSI - Compact design for easy installation - Precise control of pneumatic or hydraulic systems - Rugged construction for demanding environments Applications: The RCC-1109 diverting relay is ideally suited for various industrial applications, including: - Pneumatic and hydraulic systems - Process control - Robotics - Manufacturing Shop our HVAC supply store today for the best prices and fast shipping on the RCC-1109 diverting relay!

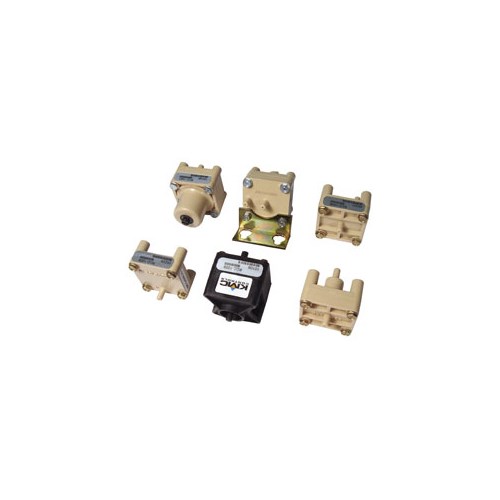

• RCC-1001/1012/1101/1112 Reversing Relays (pilot capacity) are designed for reversing a proportional signal from a controlling device. Factory adjusted to decrease branch line pressure as the input pressure increases. Comes with a bias adjustment and two factory calibration points (8 and 9 psi).
• RCC-1006/1106 Low Pressure Selector Relays are designed to control a final device based on the lower of two pneumatic input signals.
• RCC-1008/1108 High Pressure Selector Relays are designed to select the greater of two pneumatic signals as the control signal for a final device. These signals must be supplied by “relieving” type devices such as thermostats and receiver-controllers.
• RCC-1009/1109 Adjustable Diverting/Switching Relays are SPDT devices. They divert one signal to either of two branch circuits or select one of two inputs and transmit it to another control device. They can also be used to feed or exhaust a circuit.
• RCC-1102 Averaging Relay is designed for applications that do not require large amounts of output air volume. Suitable for room or zone applications such as VAV terminals. Use where the output signal to the controlled device must be the average of two source signals.
