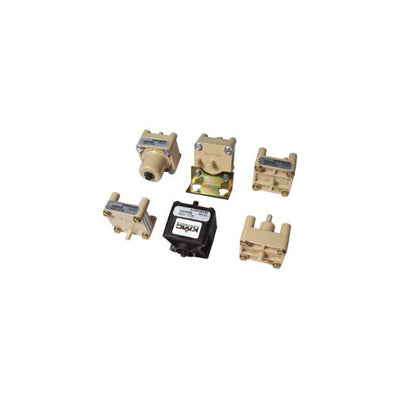

RCC-1102 | Relay: Averaging, Bracket | KMC Controls

RCC-1102 Averaging Relay with Mounting Bracket KMC Controls' RCC-1102 is a valuable addition to any industrial or maintenance setting, providing reliable and precise averaging relay functionality. Designed with a rugged construction and high-quality materials, this relay ensures durability and longevity even in demanding environments. The RCC-1102 features a mounting bracket, simplifying installation and offering flexibility in placement. Its purpose is to average multiple analog signals, providing a single, stable output signal that represents the average value. This averaging function eliminates noise and fluctuations in input signals, resulting in improved control and accuracy. Key Specifications: * Mounting bracket for easy installation * Accuracy: ±0.05% * Input Range: 0 to 5 VDC or 4 to 20 mA * Output Range: 0 to 5 VDC or 4 to 20 mA * Input Resistance: 1 kΩ * Output Impedance: 0 Ω Applications: * Industrial process control systems * Data acquisition and monitoring * Signal conditioning and filtering * Automation and robotics Our HVAC supply store offers competitive pricing and fast shipping on the RCC-1102 Averaging Relay. Contact us today to enhance your industrial operations with this reliable and value-added solution.

• RCC-1001/1012/1101/1112 Reversing Relays (pilot capacity) are designed for reversing a proportional signal from a controlling device. Factory adjusted to decrease branch line pressure as the input pressure increases. Comes with a bias adjustment and two factory calibration points (8 and 9 psi).
• RCC-1006/1106 Low Pressure Selector Relays are designed to control a final device based on the lower of two pneumatic input signals.
• RCC-1008/1108 High Pressure Selector Relays are designed to select the greater of two pneumatic signals as the control signal for a final device. These signals must be supplied by “relieving” type devices such as thermostats and receiver-controllers.
• RCC-1009/1109 Adjustable Diverting/Switching Relays are SPDT devices. They divert one signal to either of two branch circuits or select one of two inputs and transmit it to another control device. They can also be used to feed or exhaust a circuit.
• RCC-1102 Averaging Relay is designed for applications that do not require large amounts of output air volume. Suitable for room or zone applications such as VAV terminals. Use where the output signal to the controlled device must be the average of two source signals.
