Q313A1139 | THERMOPILE GENERATOR | Resideo

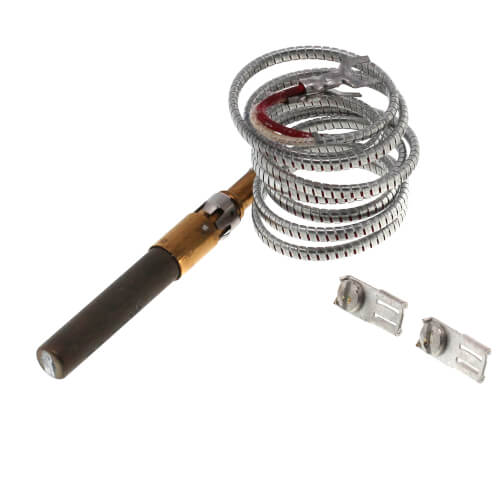

Resideo 750MV Thermopile Gen. 35" Lead (Q313A1139) The Resideo 750MV Thermopile Gen. 35" Lead is a temperature sensor designed for industrial and commercial applications. This thermopile features a 35-inch lead length, providing flexibility for installation in hard-to-reach areas. Key Features: Thermopile Technology: Non-contact temperature measurement 35" Lead Length: Allows for remote placement Durable Construction: Withstands harsh environments Wide Temperature Range: Measures temperatures from -67°F to 752°F (-55°C to +400°C) Applications: * Temperature monitoring in industrial processes * HVAC systems * Laboratory equipment * Manufacturing machinery Technical Specifications: * Sensitivity: 20 µV/°C * Resistance: 10 Ω * Operating Temperature: -67°F to 752°F (-55°C to +400°C) * Lead Material: Copper Our HVAC supply store offers the best prices and fast shipping for your industrial products. Contact us today to place your order!

Application

Q309, Q340, and Q390 Thermocouples generate a thermoelectric current that senses a pilot flame on gas-fired heating systems. The pilot flame heats the tip of the thermocouple, producing a temperature differential between it and the base. This temperature difference generates a small amount of DC power, measured in millivolts.

Q335 Thermocouple is a quick dropout thermocouple used in conjunction with the Q313 Thermopile Generator in the Q382 Pilot Burner. The flame in the pilot burner is directed toward the thermocouple and the thermopile. As long as pilot flame is present, the millivolt output from the thermocouple keeps the safety valve in the gas control open, allowing the main gas to flow to the appliance on demand. The millivolt output from the thermopile energizes the operator in the valve on demand.

Q313 Thermopile Generator contains multiple thermocouples connected in series to increase the millivoltage output. The power generated is sufficient to operate an automatic millivolt gas control system, independent of any outside power source.

Features

• Push-in clip, split nut, and adapter assembly for easy pilot burner installation.
• Spade or quick-connect terminals available for millivolt gas control connections.
• Male nut connector for Pilotstat® safety control power units. Q313
• Available in a variety of lead lengths.
