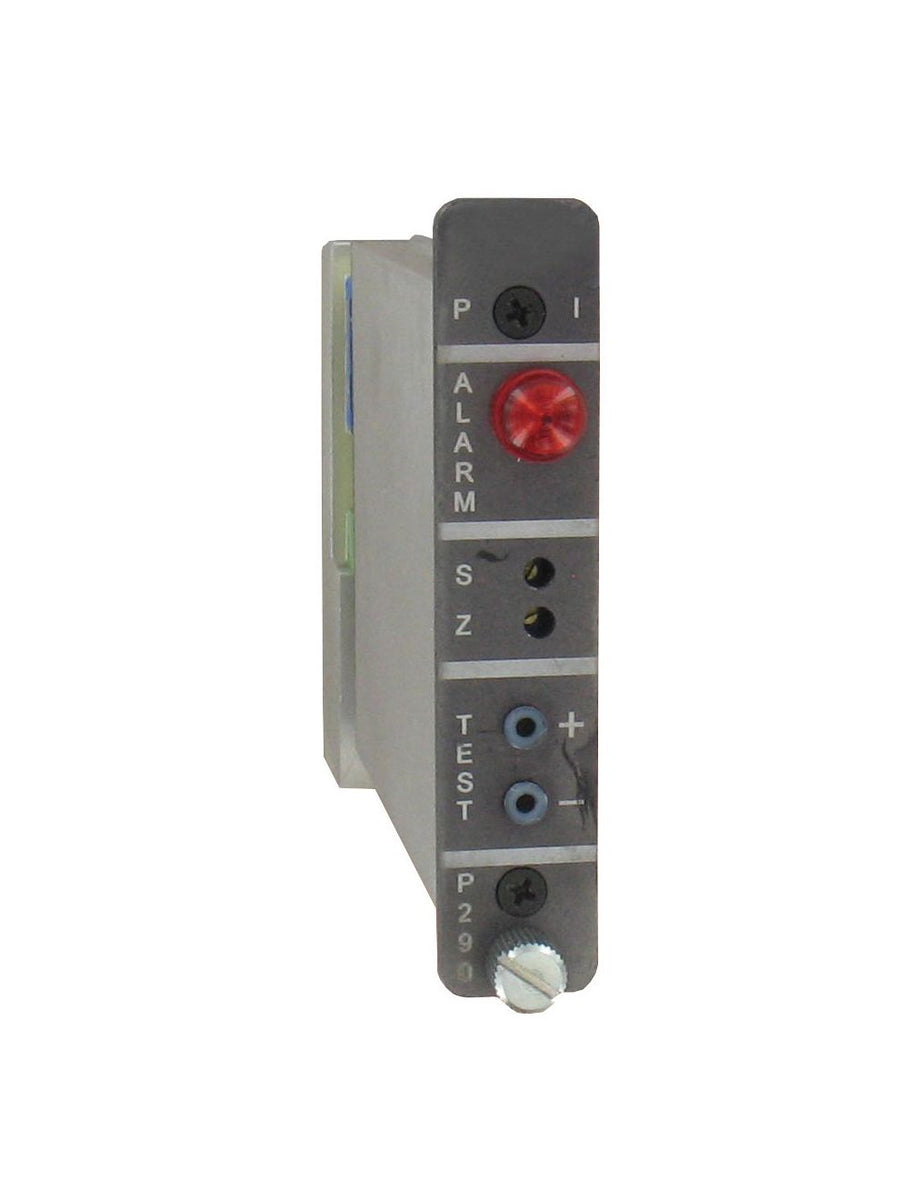

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PI-1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments PI-1 Documents

Instruction Manual Model PI Catalog Page More Info

Overview

Details for PI-1

Dwyer Instruments PI-1 Pressure to Current Transducer The Dwyer Instruments PI-1 is a pressure to current transducer, designed to convert a pressure signal into a 4-20 mA output signal. This transducer is ideal for use in industrial applications where accurate and reliable pressure measurement is required. The PI-1 is constructed with a stainless steel diaphragm and wetted parts, making it suitable for use in harsh environments. It also features a compact design and is easy to install. Key Features: * Converts pressure signal into a 4-20 mA output signal * Stainless steel diaphragm and wetted parts * Compact design * Easy to install Applications: * Industrial pressure measurement * Process control * HVAC systems * Water treatment plants Shop now at our HVAC supply store for the best prices and fast shipping on all your industrial supply needs!

MODEL PI PRESSURE TO CURRENT TRANSDUCER

Reliable, User-Oriented Performance

The Model PI Pressure To Current Transducer converts a pneumaticinput pressure to an accurately proportional output current withuncompromising accuracy and durability. The PI serves in high-density andpanel-mounted applications. The rugged PI transducer offers a high densityDIN rail adapters and space saving with easy plug-in installation.

Specifications

Service: Clean dry air filtered to 40 microns.
Input Signal: 3 to 15 psig and 3 to 27 psig.
Input Capacitance: 2-wire: 700 ƒ; standard; Voltage: 5k ƒ min.
Output: 2-wire: 4 to 20 mA.
Linearity: ±0.15% of span.
Hysteresis: ±0.15% of span max.
Accuracy: ±0.15% of span guaranteed; ±0.10% of span typical.Includes combined effects of linearity; hysteresis and repeatabilityerrors.
Repeatability: ±0.10% of span; ±0.03% of span typical.
Response Time: 10 m sec to 99% of step change.
Power Requirements: 10 to 42 VDC.
Temperature Stability: Span and Zero: ±0.007% of span per °F max.deviation from 77°F calibration.
Temperature Limits: Operating: -40 to 167°F (-40 to 75°C);Storage: -60 to 185°F (-50 to 85°C).
Calibration Adjustments: Non-interactive; multi-turn span and zeropotentiometers with approximately ±10% of span adjustment range.
Connections: Signal Air: 1/8" NPT female; Electrical Wiring: Miniature terminal block accepts solid or strandedwire up to 14 AWG.
Weight: 0.5 lb (0.2 kg).
