PG-7000-153-P1 | Gas pressure/differential pressure switch | range 1-30" water (.25-7.47 kPa) | max. deadband 4" w.c. (1.0 kPa) | SPDT snap switch. | Dwyer Instruments

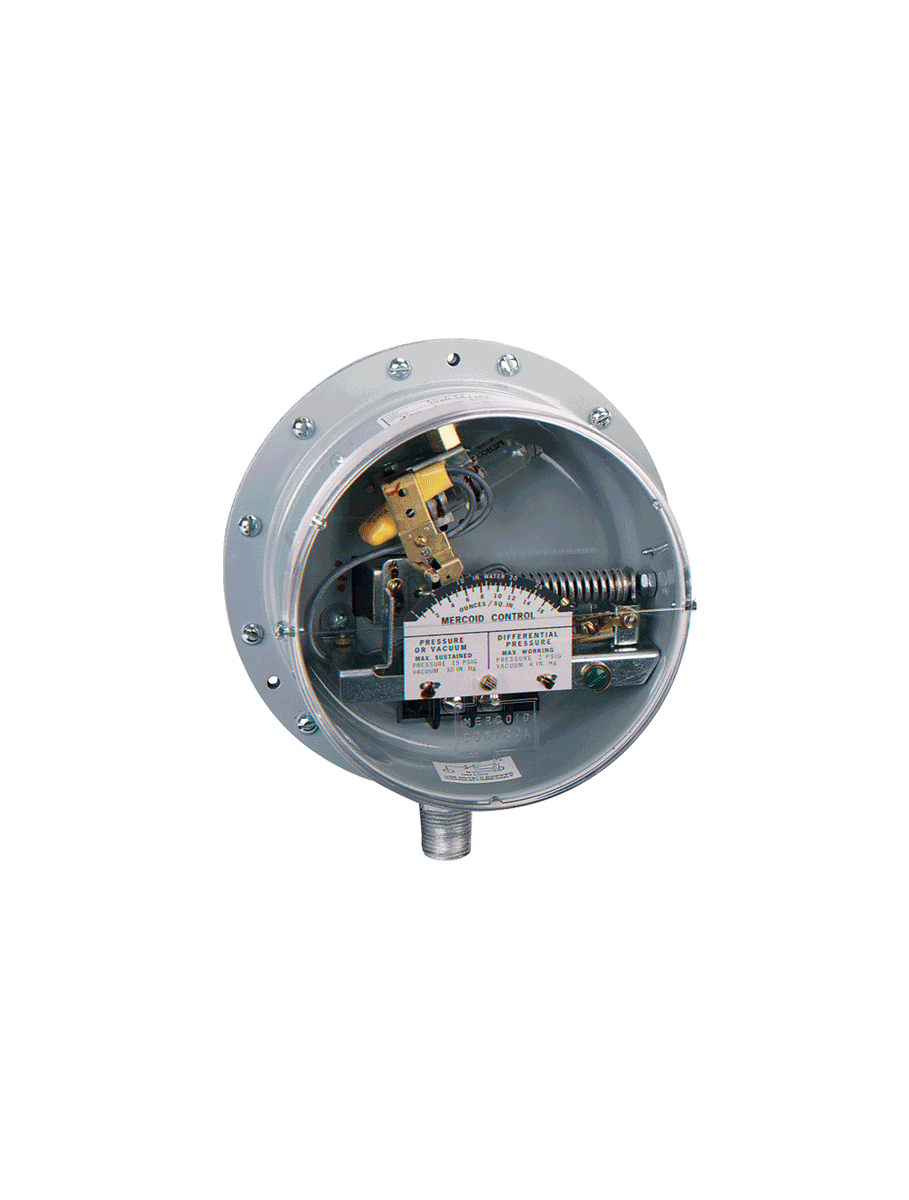

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PG-7000-153-P1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments PG-7000-153-P1 Documents

Instruction Manual Series PG Catalog Page PG More Info

Overview

Details for PG-7000-153-P1

Dwyer Instruments PG-7000-153-P1: Precise Snap Gas Switch for Industrial Applications Dwyer Instruments' PG-7000-153-P1 is a highly reliable snap-acting gas switch designed to provide precise control in a wide range of industrial settings. This compact and robust device features a single-pole double-throw (SPDT) configuration, allowing for efficient switching and control of gas flow. Crafted from durable materials, the PG-7000-153-P1 boasts a resilient construction that can withstand demanding operating conditions. Its compact size makes it ideal for space-constrained applications, while its rugged construction ensures longevity and reliability. The PG-7000-153-P1 operates on a pressure range of 0.5 to 15 psi, making it suitable for a variety of gas flow applications. It features a snap action mechanism that provides a fast and positive response, ensuring precise control and switching accuracy. This versatile switch finds applications in various industrial sectors, including gas processing, manufacturing, and HVAC systems. Its compact design and reliable performance make it a valuable asset for controlling gas flow in pipelines, regulators, and other gas-related equipment. Invest in the Dwyer Instruments PG-7000-153-P1 for precise gas control in your industrial applications. Shop now at our HVAC supply store for the best prices and fast shipping on all your industrial equipment needs.

Series PG Gas Pressure/Differential Pressure Switch

External Adjustment, Visible Dial, Hermetically Sealed Snap or Mercury Switch

Large sensitive diaphragm and reliable, time proven mechanical design are combined in Series PG Gas Pressure/Differential Pressure Switches. For use with air and other compatible gases, they feature excellent ±1% of full scale repeatability, clear easy-to-read scale and convenient external setpoint adjustment.

Application flexibility is assured by a large variety of switching options including SPST, SPDT, DPST and DPDT; opening or closing on increasing pressure, vacuum or differential. PR and PRL models add manual reset operation on increasing or decreasing pressure. Mercury switches or hermetically sealed snap switches are available where high humidity would be a problem. If vibration or other factors preclude the use of mercury, snap switches can be provided. Standard housing is NEMA 1. Optional enclosures can be supplied for weather resistant requirements.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Natural, manufactured or LP gas applications

Clear easy-to-read scale and external set point adjustment simplifies operation and trouble shooting
Large diaphragm provides accuracy for precise control
Multiple switching options meet the design of applications

Specifications

Series: PG Gas Pressure/Differential Pressure Switch
Category/Type: Pressure
Type: Differential Pressure
Series: PG Gas Pressure/Differential Pressure Switch
Wetted Materials: Fairprene; brass; steel; and aluminum.
Temperature Limits: -10 to 180°F (-23 to 82°C).
Pressure Limit: Single Pressure Use on High Side: sustained pressure: 15 psig (1.0 bar); surge limit: 20 psig (1.4 bar). Differential Pressure Use: sustained pressure; range P1: 2 psig (.14 bar); sustained pressure; range P2: 10 psig (0.7 bar).
Enclosure Rating: General purpose. Weatherproof optional.
Repeatability: ±1% of full range.
Switch Type: See Ordering page.
Electrical Rating: See Ordering page.
Electrical Connections: Screw type.
Conduit Connection: 7/8" (22.23 mm) hole for 1/2" (12.7 mm) conduit hub.
Process Connection: 1/2" male NPT and 1/8" female NPT used for single positive pressure or high differential pressure; 1/8" female NPT used for single vacuum or low differential pressure.
Mounting Orientation: Vertical.
Set Point Adjustment: External screw.
Weight: 4.5 lb (2 kg).
Deadband: See Ordering page.
Agency Approvals: UL; FM for mercury switch models. UL only on snap switch models.
