Brand: Dwyer InstrumentsSKU: PG-3-P2

List Price
~~$3,027.00~~

$1,008.91

Availability: This product is currently available to purchase

Orders over $999 ship FREE*

The product is not cancelable or returnable unless found defective

*Free shipping applies within the continental US and weighing less than 50 lbs.

Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

PG-3-P2 | Gas pressure/differential pressure switch | range 0.5-5 psid (.03-.345 bar) | max. deadband 0.3 psid (0.21 kPa) | SPST mercury switch | closes on increase. | Dwyer Instruments

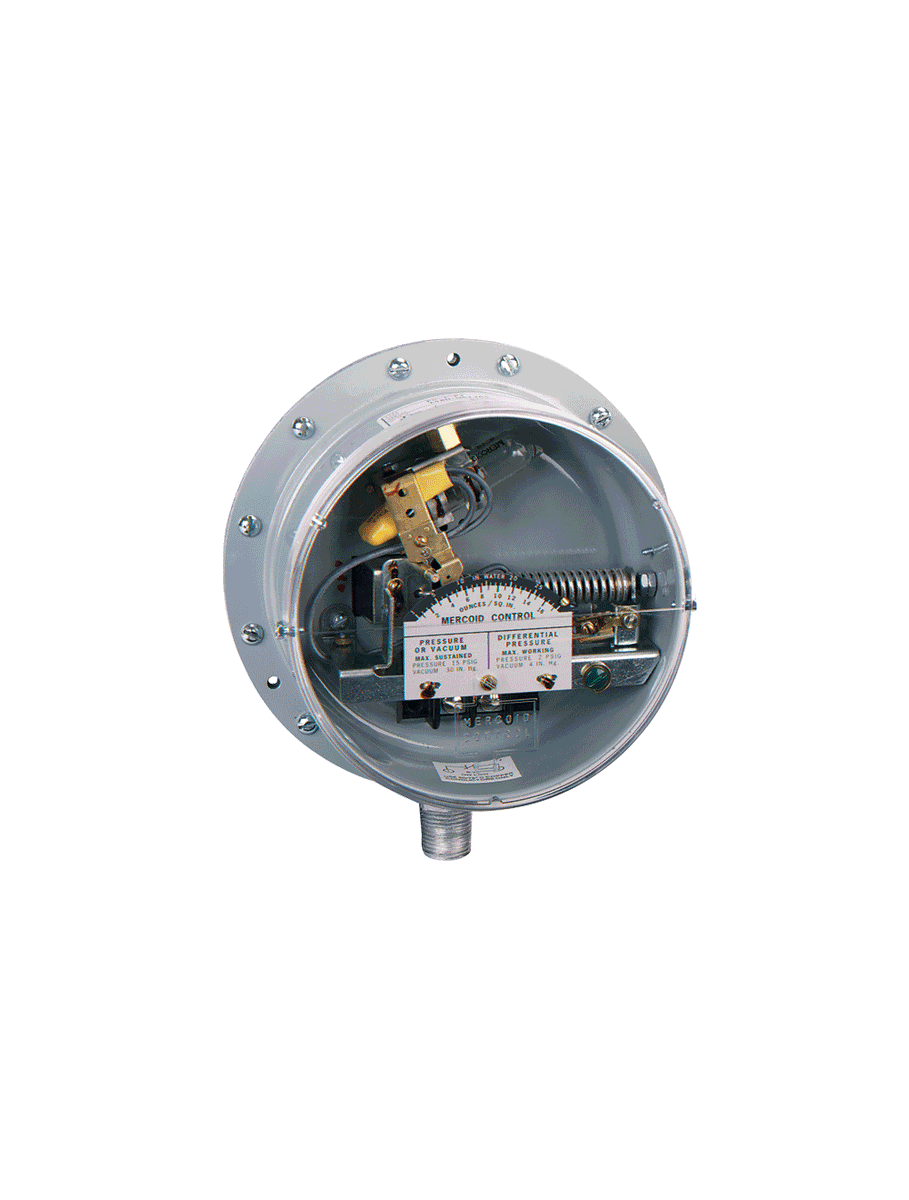

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PG-3-P2

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments PG-3-P2 Documents

Instruction Manual Series PG Catalog Page PG More Info

Overview

Details for PG-3-P2

0.5-5# SPST DIFF # SW The Dwyer Instruments PG-3-P2 is a pressure switch with a 0.5-5# range and a SPST configuration. It is designed for use with liquid or gas media and features a differential pressure switch type. This switch is ideal for various industrial applications where precise pressure control is required. Key Features: - Pressure range: 0.5-5# - Configuration: SPST - Media compatibility: Liquid or gas - Differential pressure switch type Benefits: - Accurate pressure measurement and control - Durable construction for harsh environments - Easy installation and maintenance Applications: - Industrial pressure monitoring and control systems - Fluid power systems - Process control systems Shop now at our HVAC supply store for the best prices and fast shipping on the Dwyer Instruments PG-3-P2 pressure switch and other industrial products.

Series PG Gas Pressure/Differential Pressure Switch

External Adjustment, Visible Dial, Hermetically Sealed Snap or Mercury Switch

Large sensitive diaphragm and reliable, time proven mechanical design are combined in Series PG Gas Pressure/Differential Pressure Switches. For use with air and other compatible gases, they feature excellent ±1% of full scale repeatability, clear easy-to-read scale and convenient external setpoint adjustment.

Application flexibility is assured by a large variety of switching options including SPST, SPDT, DPST and DPDT; opening or closing on increasing pressure, vacuum or differential. PR and PRL models add manual reset operation on increasing or decreasing pressure. Mercury switches or hermetically sealed snap switches are available where high humidity would be a problem. If vibration or other factors preclude the use of mercury, snap switches can be provided. Standard housing is NEMA 1. Optional enclosures can be supplied for weather resistant requirements.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Natural, manufactured or LP gas applications

Clear easy-to-read scale and external set point adjustment simplifies operation and trouble shooting
Large diaphragm provides accuracy for precise control
Multiple switching options meet the design of applications

Specifications

Series: PG Gas Pressure/Differential Pressure Switch
Category/Type: Pressure
Type: Differential Pressure
Series: PG Gas Pressure/Differential Pressure Switch
Wetted Materials: Fairprene; brass; steel; and aluminum.
Temperature Limits: -10 to 180°F (-23 to 82°C).
Pressure Limit: Single Pressure Use on High Side: sustained pressure: 15 psig (1.0 bar); surge limit: 20 psig (1.4 bar). Differential Pressure Use: sustained pressure; range P1: 2 psig (.14 bar); sustained pressure; range P2: 10 psig (0.7 bar).
Enclosure Rating: General purpose. Weatherproof optional.
Repeatability: ±1% of full range.
Switch Type: See Ordering page.
Electrical Rating: See Ordering page.
Electrical Connections: Screw type.
Conduit Connection: 7/8" (22.23 mm) hole for 1/2" (12.7 mm) conduit hub.
Process Connection: 1/2" male NPT and 1/8" female NPT used for single positive pressure or high differential pressure; 1/8" female NPT used for single vacuum or low differential pressure.
Mounting Orientation: Vertical.
Set Point Adjustment: External screw.
Weight: 4.5 lb (2 kg).
Deadband: See Ordering page.
Agency Approvals: UL; FM for mercury switch models. UL only on snap switch models.
