Brand: Dwyer InstrumentsSKU: PG-3-P1

List Price
~~$3,027.00~~

$1,008.91

Availability: This product is currently available to purchase

Orders over $999 ship FREE*

The product is not cancelable or returnable unless found defective

*Free shipping applies within the continental US and weighing less than 50 lbs.

Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

PG-3-P1 | Gas pressure/differential pressure switch | range 1-30" water (.25-7.47 kPa) | max. deadband 1.3" w.c. (0.32 kPa) | SPST mercury switch | closes on increase. | Dwyer Instruments

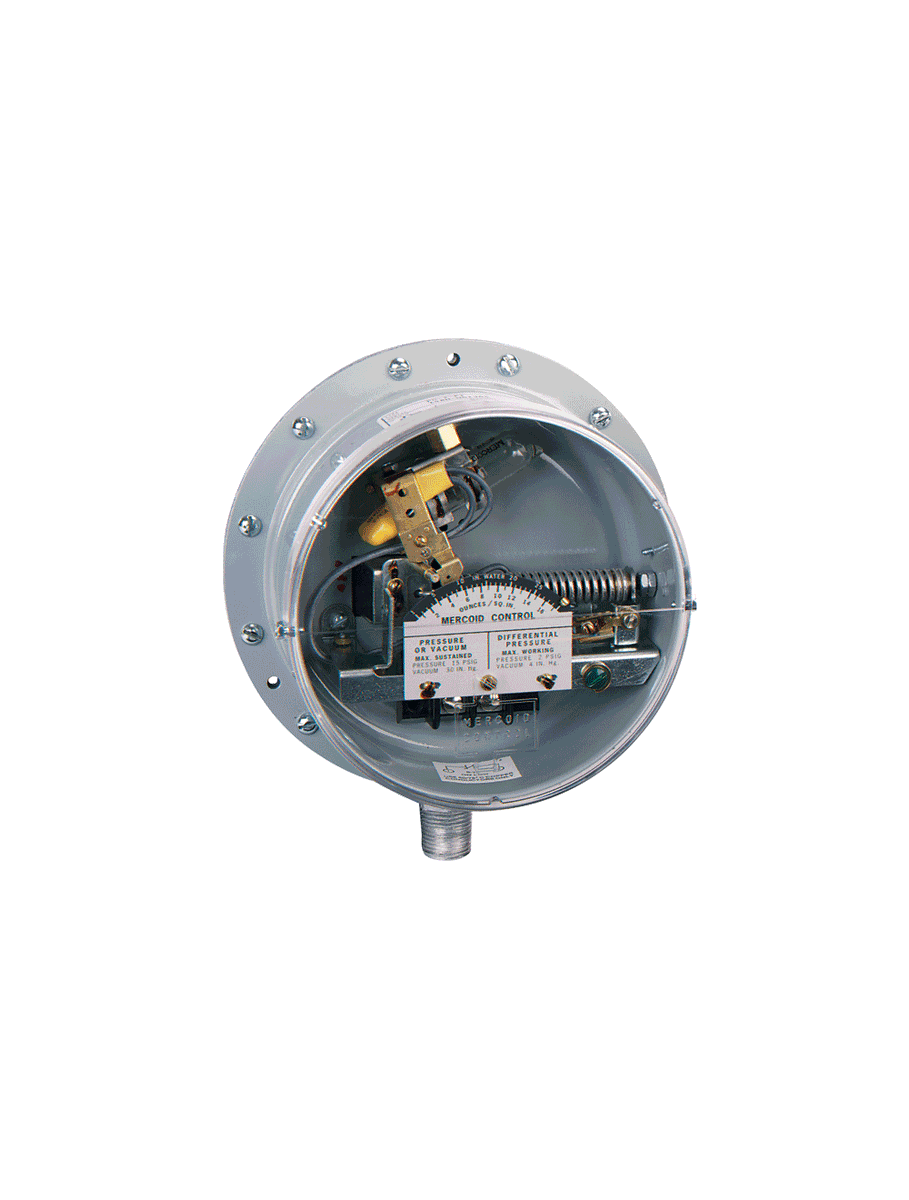

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PG-3-P1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments PG-3-P1 Documents

Instruction Manual Series PG Catalog Page PG More Info

Overview

Details for PG-3-P1

Dwyer Instruments PG-3-P1 Pressure Gage: Accurate and Reliable Measurement for Industrial ApplicationsThe Dwyer Instruments PG-3-P1 Pressure Gage is a high-quality pressure gauge designed for precise and reliable pressure measurement in industrial settings. With its robust construction and accurate readings, this gauge is an essential tool for industrial engineers and maintenance professionals seeking accurate pressure readings for monitoring and controlling systems. Crafted from durable materials, the PG-3-P1 Pressure Gage is built to withstand demanding industrial environments. Its rugged construction ensures longevity and reliability even under harsh conditions. The gauge features a 1-30" differential pressure range with a switchpoint adjustment for precise measurement and control within a specific pressure range. This Dwyer Instruments Pressure Gage offers a variety of features for enhanced functionality. Its single-pole, single-throw (SPST) switch allows for the activation of an external device when the pressure reaches a predetermined threshold. The external adjustment feature provides flexibility and convenience in setting the switchpoint to suit specific application requirements. The PG-3-P1 Pressure Gage's compact design makes it suitable for installation in confined spaces. Its easy-to-read dial provides clear and precise pressure indications for quick and accurate readings. As a replacement part, this gauge seamlessly integrates into existing systems, ensuring minimal downtime during maintenance procedures. Whether you're monitoring pressure in hydraulic systems, pneumatic circuits, or any other industrial application, the Dwyer Instruments PG-3-P1 Pressure Gage delivers exceptional accuracy, reliability, and durability. Our HVAC supply store offers the best prices and fast shipping on a wide selection of pressure gauges, so shop now to enhance your industrial operations with confidence!

Series PG Gas Pressure/Differential Pressure Switch

External Adjustment, Visible Dial, Hermetically Sealed Snap or Mercury Switch

Large sensitive diaphragm and reliable, time proven mechanical design are combined in Series PG Gas Pressure/Differential Pressure Switches. For use with air and other compatible gases, they feature excellent ±1% of full scale repeatability, clear easy-to-read scale and convenient external setpoint adjustment.

Application flexibility is assured by a large variety of switching options including SPST, SPDT, DPST and DPDT; opening or closing on increasing pressure, vacuum or differential. PR and PRL models add manual reset operation on increasing or decreasing pressure. Mercury switches or hermetically sealed snap switches are available where high humidity would be a problem. If vibration or other factors preclude the use of mercury, snap switches can be provided. Standard housing is NEMA 1. Optional enclosures can be supplied for weather resistant requirements.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Natural, manufactured or LP gas applications

Clear easy-to-read scale and external set point adjustment simplifies operation and trouble shooting
Large diaphragm provides accuracy for precise control
Multiple switching options meet the design of applications

Specifications

Series: PG Gas Pressure/Differential Pressure Switch
Category/Type: Pressure
Type: Differential Pressure
Series: PG Gas Pressure/Differential Pressure Switch
Wetted Materials: Fairprene; brass; steel; and aluminum.
Temperature Limits: -10 to 180°F (-23 to 82°C).
Pressure Limit: Single Pressure Use on High Side: sustained pressure: 15 psig (1.0 bar); surge limit: 20 psig (1.4 bar). Differential Pressure Use: sustained pressure; range P1: 2 psig (.14 bar); sustained pressure; range P2: 10 psig (0.7 bar).
Enclosure Rating: General purpose. Weatherproof optional.
Repeatability: ±1% of full range.
Switch Type: See Ordering page.
Electrical Rating: See Ordering page.
Electrical Connections: Screw type.
Conduit Connection: 7/8" (22.23 mm) hole for 1/2" (12.7 mm) conduit hub.
Process Connection: 1/2" male NPT and 1/8" female NPT used for single positive pressure or high differential pressure; 1/8" female NPT used for single vacuum or low differential pressure.
Mounting Orientation: Vertical.
Set Point Adjustment: External screw.
Weight: 4.5 lb (2 kg).
Deadband: See Ordering page.
Agency Approvals: UL; FM for mercury switch models. UL only on snap switch models.
