PG-153-P2 | Gas pressure/differential pressure switch | range 0.5-5 psid (.03-.345 bar) | max. deadband 0.4 psid (0.38 bar) | SPDT mercury switch. | Dwyer Instruments

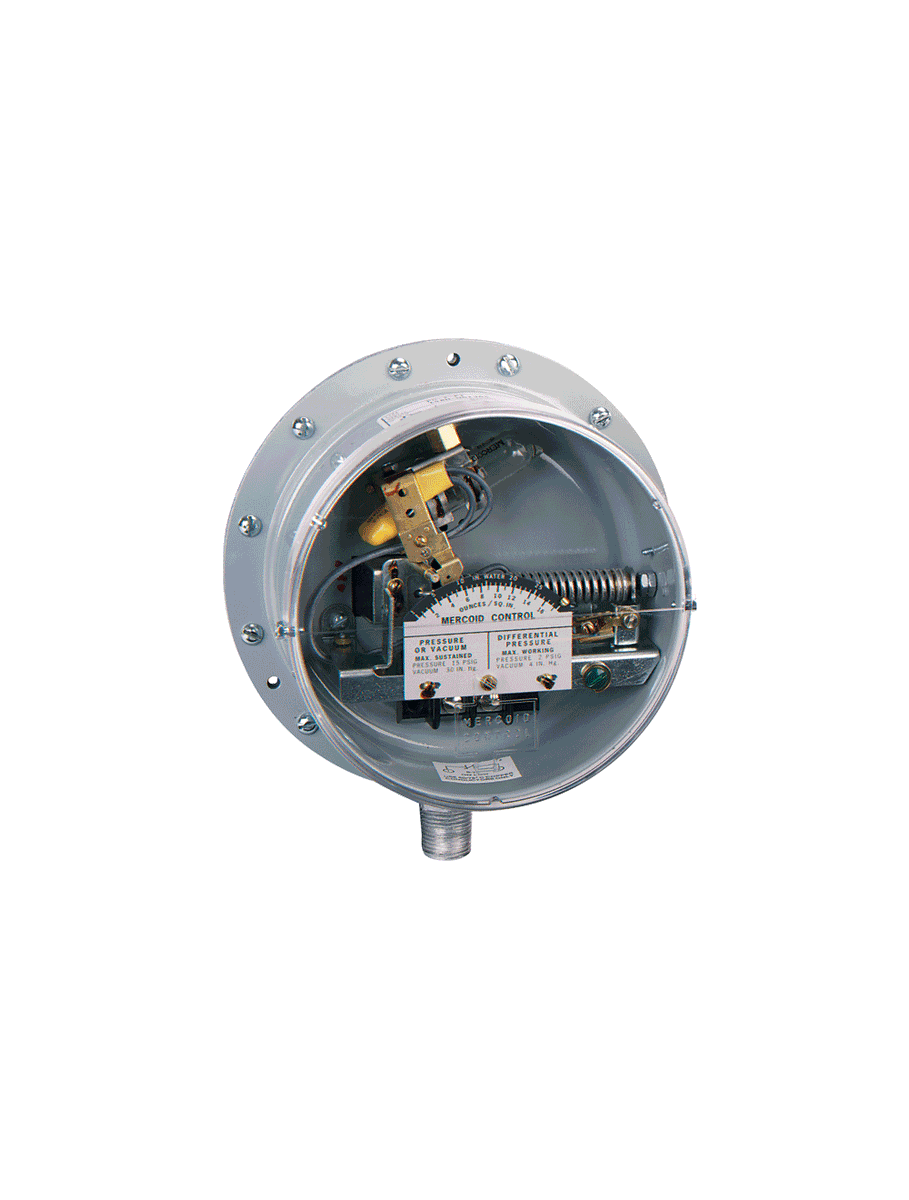

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PG-153-P2

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments PG-153-P2 Documents

Instruction Manual Series PG Catalog Page PG More Info

Overview

Details for PG-153-P2

Dwyer Instruments PG-153-P2 Differential Pressure Switch: The Precise Solution for Pressure Monitoring The Dwyer Instruments PG-153-P2 Differential Pressure Switch is an exceptional choice for precise pressure monitoring in industrial settings. With its operating range of 0.5 to 5 inches of water column (50 to 500 Pa), this switch provides reliable pressure detection. The SPDT (single-pole double-throw) switch mechanism enables easy integration into automation systems, offering flexible control options. Its rugged construction ensures longevity even in demanding environments. Its compact design allows for convenient installation in space-constrained applications. The PG-153-P2 offers fast response times, ensuring timely detection of pressure variations. Applications: * HVAC systems: Monitor air pressure for efficient climate control. * Industrial equipment: Detect pressure changes in pumps, compressors, and pipelines. * Medical devices: Control pressure in respiratory therapy equipment. Technical Specifications: * SKU: PG-153-P2 * Brand: Dwyer Instruments * Type: Differential Pressure Switch * Range: 0.5 to 5 inches of water column (50 to 500 Pa) * Switch Type: SPDT * Enclosure: Polycarbonate Our HVAC supply store - Your Trusted Supplier for Industrial Products At Our HVAC supply store, we prioritize customer satisfaction by providing competitive prices, fast shipping, and expert technical support. Choose us for your industrial product needs, and experience the difference in quality and service!

Series PG Gas Pressure/Differential Pressure Switch

External Adjustment, Visible Dial, Hermetically Sealed Snap or Mercury Switch

Large sensitive diaphragm and reliable, time proven mechanical design are combined in Series PG Gas Pressure/Differential Pressure Switches. For use with air and other compatible gases, they feature excellent ±1% of full scale repeatability, clear easy-to-read scale and convenient external setpoint adjustment.

Application flexibility is assured by a large variety of switching options including SPST, SPDT, DPST and DPDT; opening or closing on increasing pressure, vacuum or differential. PR and PRL models add manual reset operation on increasing or decreasing pressure. Mercury switches or hermetically sealed snap switches are available where high humidity would be a problem. If vibration or other factors preclude the use of mercury, snap switches can be provided. Standard housing is NEMA 1. Optional enclosures can be supplied for weather resistant requirements.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Natural, manufactured or LP gas applications

Clear easy-to-read scale and external set point adjustment simplifies operation and trouble shooting
Large diaphragm provides accuracy for precise control
Multiple switching options meet the design of applications

Specifications

Series: PG Gas Pressure/Differential Pressure Switch
Category/Type: Pressure
Type: Differential Pressure
Series: PG Gas Pressure/Differential Pressure Switch
Wetted Materials: Fairprene; brass; steel; and aluminum.
Temperature Limits: -10 to 180°F (-23 to 82°C).
Pressure Limit: Single Pressure Use on High Side: sustained pressure: 15 psig (1.0 bar); surge limit: 20 psig (1.4 bar). Differential Pressure Use: sustained pressure; range P1: 2 psig (.14 bar); sustained pressure; range P2: 10 psig (0.7 bar).
Enclosure Rating: General purpose. Weatherproof optional.
Repeatability: ±1% of full range.
Switch Type: See Ordering page.
Electrical Rating: See Ordering page.
Electrical Connections: Screw type.
Conduit Connection: 7/8" (22.23 mm) hole for 1/2" (12.7 mm) conduit hub.
Process Connection: 1/2" male NPT and 1/8" female NPT used for single positive pressure or high differential pressure; 1/8" female NPT used for single vacuum or low differential pressure.
Mounting Orientation: Vertical.
Set Point Adjustment: External screw.
Weight: 4.5 lb (2 kg).
Deadband: See Ordering page.
Agency Approvals: UL; FM for mercury switch models. UL only on snap switch models.
