PG-153-P1 | Gas pressure/differential pressure switch | range 1-30" water (.25-7.47 kPa) | max. deadband 1.9" w.c. (0.47 kPa) | SPDT mercury switch. | Dwyer Instruments

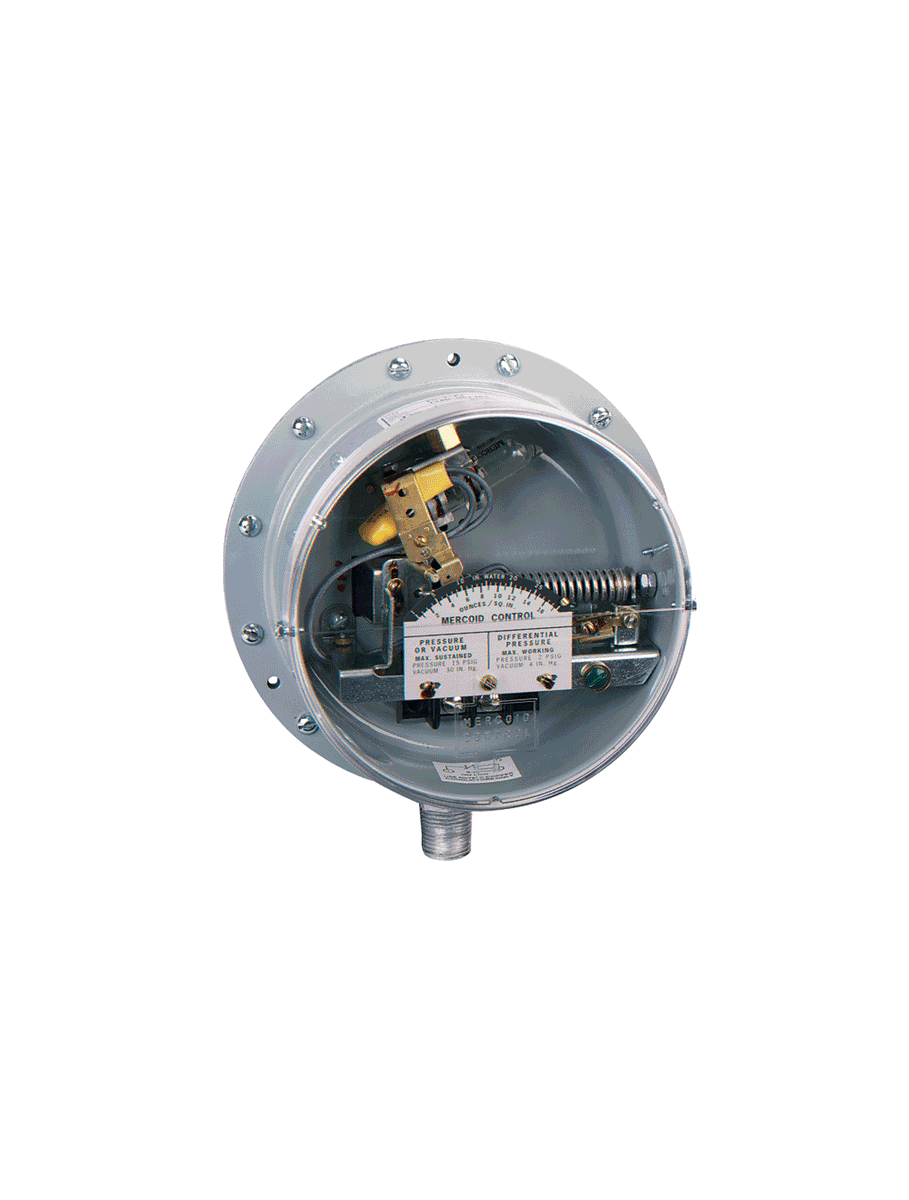

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PG-153-P1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments PG-153-P1 Documents

Instruction Manual Series PG Catalog Page PG More Info

Overview

Details for PG-153-P1

1/30" SPDT Mercury Gas # Swtch Dwyer Instruments (PG-153-P1) The Dwyer Instruments PG-153-P1 is a 1/30" SPDT mercury gas pressure switch designed for precise pressure monitoring and control in gas systems. This switch features a single-pole, double-throw (SPDT) contact configuration, allowing it to control a single circuit based on the gas pressure input. The mercury-wetted contacts provide reliable operation and long service life, even in harsh or corrosive environments. With an adjustable pressure range, this switch can be set to activate or deactivate at specific gas pressure levels. Its compact size and durable construction make it suitable for use in a variety of industrial and commercial applications, including gas distribution networks, HVAC systems, and process control systems. Key Features: * 1/30" SPDT mercury gas pressure switch * Adjustable pressure range for precise control * Mercury-wetted contacts for reliable operation * Compact and durable design for ease of installation * Ideal for gas distribution, HVAC, and process control applications Our HVAC supply store offers the best prices and fast shipping for your industrial supply needs. Shop now for the Dwyer Instruments PG-153-P1 1/30" SPDT Mercury Gas # Swtch and experience the difference!

Series PG Gas Pressure/Differential Pressure Switch

External Adjustment, Visible Dial, Hermetically Sealed Snap or Mercury Switch

Large sensitive diaphragm and reliable, time proven mechanical design are combined in Series PG Gas Pressure/Differential Pressure Switches. For use with air and other compatible gases, they feature excellent ±1% of full scale repeatability, clear easy-to-read scale and convenient external setpoint adjustment.

Application flexibility is assured by a large variety of switching options including SPST, SPDT, DPST and DPDT; opening or closing on increasing pressure, vacuum or differential. PR and PRL models add manual reset operation on increasing or decreasing pressure. Mercury switches or hermetically sealed snap switches are available where high humidity would be a problem. If vibration or other factors preclude the use of mercury, snap switches can be provided. Standard housing is NEMA 1. Optional enclosures can be supplied for weather resistant requirements.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Natural, manufactured or LP gas applications

Clear easy-to-read scale and external set point adjustment simplifies operation and trouble shooting
Large diaphragm provides accuracy for precise control
Multiple switching options meet the design of applications

Specifications

Series: PG Gas Pressure/Differential Pressure Switch
Category/Type: Pressure
Type: Differential Pressure
Series: PG Gas Pressure/Differential Pressure Switch
Wetted Materials: Fairprene; brass; steel; and aluminum.
Temperature Limits: -10 to 180°F (-23 to 82°C).
Pressure Limit: Single Pressure Use on High Side: sustained pressure: 15 psig (1.0 bar); surge limit: 20 psig (1.4 bar). Differential Pressure Use: sustained pressure; range P1: 2 psig (.14 bar); sustained pressure; range P2: 10 psig (0.7 bar).
Enclosure Rating: General purpose. Weatherproof optional.
Repeatability: ±1% of full range.
Switch Type: See Ordering page.
Electrical Rating: See Ordering page.
Electrical Connections: Screw type.
Conduit Connection: 7/8" (22.23 mm) hole for 1/2" (12.7 mm) conduit hub.
Process Connection: 1/2" male NPT and 1/8" female NPT used for single positive pressure or high differential pressure; 1/8" female NPT used for single vacuum or low differential pressure.
Mounting Orientation: Vertical.
Set Point Adjustment: External screw.
Weight: 4.5 lb (2 kg).
Deadband: See Ordering page.
Agency Approvals: UL; FM for mercury switch models. UL only on snap switch models.
