PBLT2-20-60 | Submersible level transmitter | range 20 psi (46.18 ft wc) [14.08 m wc] | 60 ft (18.3 m) ETFE cable. | Dwyer Instruments

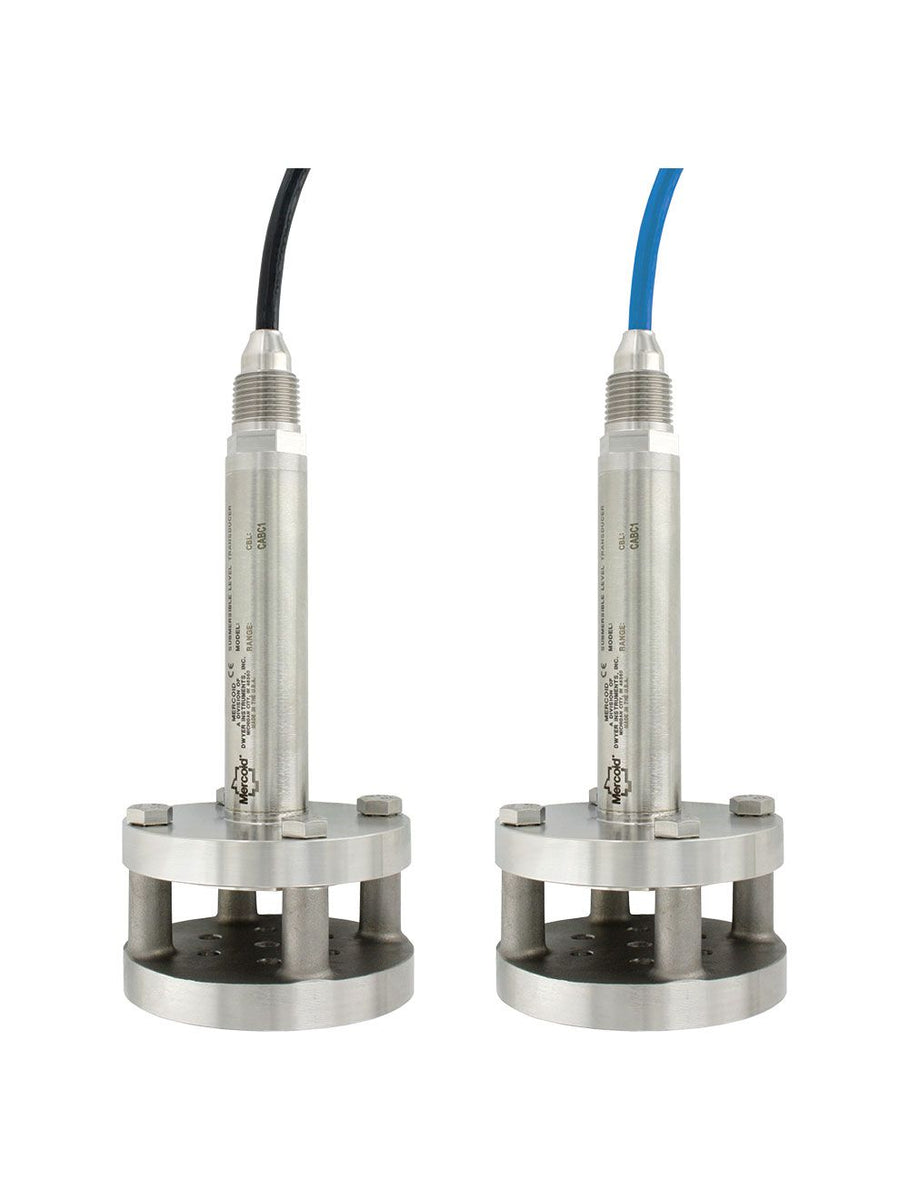

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PBLT2-20-60

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments PBLT2-20-60 Documents

PBLT2 PBLTX PBLTX (Multilingual version)Series PBLT2 & PBLTX Catalog Page PBLT2 Dwyer slideshow More Info

Overview

Details for PBLT2-20-60

Dwyer Instruments PBLT2-20-60: Level Transmitter for Precise Level Monitoring The Dwyer Instruments PBLT2-20-60 Level Transmitter offers an accurate and reliable solution for measuring liquid levels in various industrial applications. Its robust construction, coupled with advanced technology, ensures reliable performance even in demanding environments. Key Features: * Precise level measurement using capacitance-based technology * 20# level range (20 psi maximum pressure) * 60' level cable for versatile installation * Built-in temperature compensation for accurate measurements * 4-20 mA output signal for easy integration with industrial systems Benefits: * Accurate and reliable level measurement for improved process control * Rugged design for durability in harsh industrial environments * Temperature compensation ensures reliable readings without drifting * Compatible with most industrial automation systems * Fast response time for immediate level changes detection Applications: * Level monitoring in tanks, vessels, and pipes * Wet well and sump level measurement * Liquid overflow prevention * Process control systems * Pharmaceutical and chemical industries Shop our HVAC supply store today for the best prices and fast shipping on the Dwyer Instruments PBLT2-20-60 Level Transmitter. Ensure precise level monitoring and enhance your industrial operations with this reliable solution!

SERIES PBLT2 & PBLTX SUBMERSIBLE LEVEL TRANSMITTER

Perfect for Sludge and Slurries, Lightning Protected, Intrinsically Safe

PBLT2 and PBLTX Submersible Level Transmitters are manufactured for years of trouble free service in the harshest applications. Both measure the height of liquid above the position in the tank referenced to atmospheric pressure. The transmitter consists of a piezoresistive sensing element, encased in a 316 SS housing. Perfect for wastewater and slurry applications with features to protect the unit from these demanding applications. Large diameter 316 SS diaphragm seal is non-clogging and damage resistant to floating solids.

The PBLT2 incorporates lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both power supply surges and lightningground strike transients (surge protection is not guaranteed and is not covered by warranty). The PBLTX is UL approved intrinsically safe for use in hazardous locations when used with proper barrier.

Units come equipped with a 270-pound tensile strength shielded and vented cable. Ventilation tube in the cable automatically compensates for changes in atmosphericpressure above the tank. The vent is protected with a maintenance free filter eliminating particulate or water droplets from entering the transducer.

If you don't see the exact model you need below, please use our product configurator Series PBLT2 (Not UL Approved) or Series PBLTX (UL Approved).

Product Applications

Wastewater

Sludge pits, clarifiers, digesters

Alum tanks

Chemical storage tanks

Oil tanks

Lime slurry

Sumps

Reservoirs

Meet application requirements with durable cage design with large diameter 316 SS diaphragm seal that is non-clogging and damage resistant to floating solids

Increased life with lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both power supply surges and lightning ground strike transients (surge protection is not guaranteed and is not covered by warranty) on PBLT2 models

Eliminates particulate or water droplets from entering the transducer using maintenance-free filter

Peace of mind with UL approved intrinsically safe on PBLTX models for use in hazardous locations when used with proper barrier

Decrease ownership cost with durable, 270 lb tensile strength shielded and vented cable and excellent chemical compatibility

Flexible installation options with NPT connection to rigidly install in a pipe/conduit or use a A-625 hanging loop to attach a chain to remove from the installation

Minimal downtime with standard 72 hour lead time

Specifications

Series: PBLT2 & PBLTX SUBMERSIBLE LEVEL TRANSMITTER
freeship
Category/Type: Level
Type: Level Transmitters
Series: PBLT2 & PBLTX SUBMERSIBLE LEVEL TRANSMITTER
Service: Compatible liquids.
Wetted Materials: Body: 316 SS; 316L SS; Cable: Polyether polyurethane or ETFE; Seals: Fluoroelastomer.
Accuracy: ±0.25% FS (includes linearity; hysteresis; and repeatability).
Temperature Limit: PBLT2: 0 to 200°F (-18 to 93°C); PBLTX: ETFE -4 to 176°F(-20 to 80°C); Polyurethane: -4 to 149°F (-20 to 65°C)
Compensated Temperature Range: PBLT2: 0 to 180°F (-18 to 82°C); PBLTX: 0 to 176°F (-18 to 80°C).
Thermal Effect: ±0.02% FS/°F.
Pressure Limit: 2X FS.
Power Requirement: PBLT2: 13 to 30 VDC; PBLTX: 10 to 28 VDC.
Output Signal: 4 to 20 mA DC; two wire.
Response Time: 50 msec.
Loop Resistance: 900 Ω.
Electrical Connection: Wire pigtail.
Mounting Orientation: Suspended in tank below level being measured.
Electrical Protection: PBLT2: Lightning and surge protection; PBLTX: none.
Weight: 4.3 lb (2.0 kg).
Compliance: PBLT2: CE; PBLTX: CE; cULus intrinsically safe for Class I;Div. 1; Groups A; B; C; D; Class II; Div. 1; Groups E; F; G; Class III; Div. 1; ATEX: II1 G Ex ia IIC T4 Ga and II 1 D Ex ia IIIC T135C Da (According to control drawing001833-44)**.
: **Up to 275' (83.8 m) for ETFE cable; Up to 470' (143.3 m) for polyurethane cable.
