PAX130-150 | PAX EXPANSION TANK 130L (31GAL) 150PSI | Taco

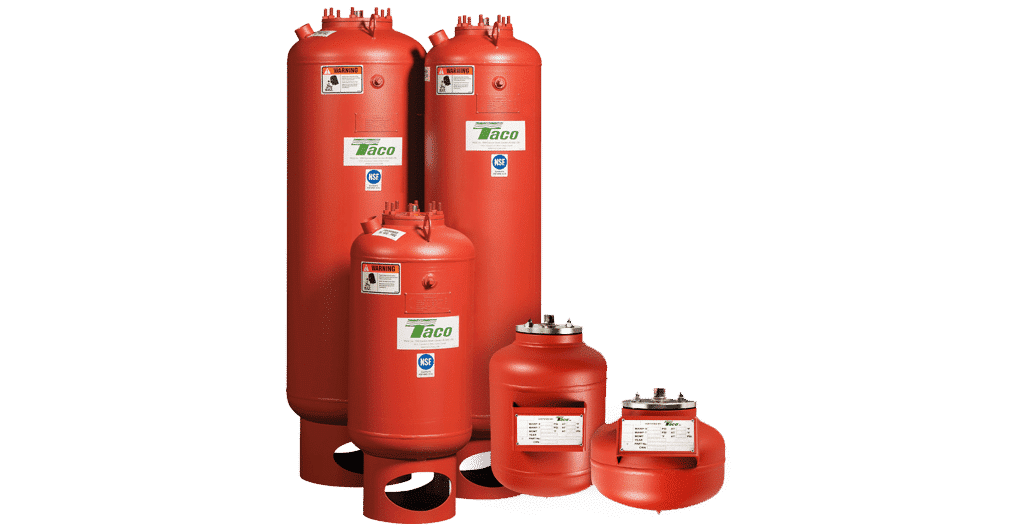

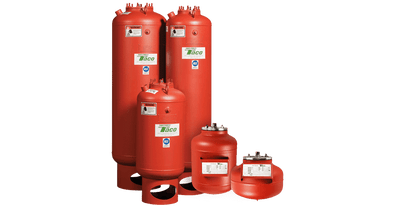

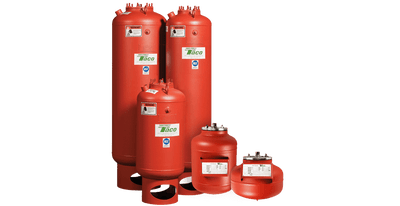

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PAX130-150

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Taco PAX130-150 Documents

Datasheet Installation Instructions More Info

Overview

Details for PAX130-150

PAX130-150: Expansion Tank for Industrial Applications The PAX130-150 expansion tank, manufactured by Taco, is designed to manage volume fluctuations and maintain system pressure in commercial and industrial heating and cooling systems. With a capacity of 34 gallons and a maximum operating pressure of 150 psi, this expansion tank is ideal for large-scale HVAC systems. Constructed from high-quality materials, the PAX130-150 boasts a robust carbon steel shell with a corrosion-resistant coating. Its butyl diaphragm ensures leak-proof operation and provides a reliable separation between water and pressurized air. The tank's maximum operating temperature of 240 degrees Fahrenheit makes it suitable for demanding applications. This expansion tank is pre-charged at 12 psi air pressure and features a Schrader valve for easy adjustment. The compact design and versatile mounting options allow for simple integration into existing systems. Key Features: * 34-gallon capacity * Maximum operating pressure: 150 psi * Maximum operating temperature: 240Â°F * Butyl diaphragm for leak-proof operation * Pre-charged at 12 psi air pressure * Schrader valve for easy adjustment * Corrosion-resistant carbon steel shell Shop now at our HVAC supply store for the best prices and fast shipping on PAX130-150 expansion tanks and all your industrial supply needs!

For Permanent Separation of Air and Water

Taco PAX Series Potable Water Expansion Tanks are bladder type tanks that provide permanent separation of air and water and designed for use in potable water systems. All wetted components are built of FDA approved materials and can be offered with NSF/ANSI 61-G Certification and Listing as an option. Taco PAX model expansion tanks feature a heavy-duty Butyl rubber bladder for long lasting performance.

PAX Series Potable Water Expansion Tanks are designed, constructed and tested to ASME Section VIII, Div. 1 requirements. Computerized product selection helps you choose the Expansion Tank that is just the right fit for your application requirements. All fabrication is done in-house to assure a high level of quality.

Performance Data

Capacity: 2.6-132 Gallons (10-500 Liters)
Diameters: 12-24″
Height: 12-85″
Working Pressure: 150 PSI, (Optional 175, 250)
Max. Operating Temp.: 240°F

Features

Designed, constructed and tested to ASME Section VIII, Div. 1 requirements.
SS System Connection
Heavy Duty butyl rubber bladder
Partial Acceptance bladder design (field replaceable)
All fabrication done in house
Computerized selections to ensure fast and easy design
National Board Registration
CRN registration (optional)
NSF/ANSI 61-G Certified and Listed (Optional)

Applications

Potable Water Systems
Closed Loop Chilled and Hot Water
