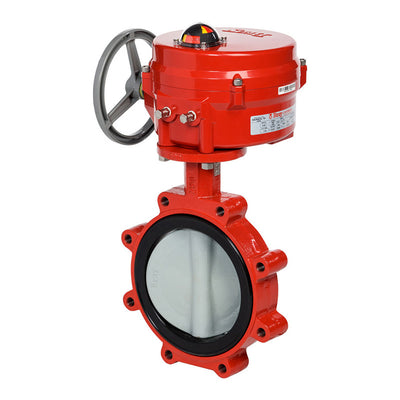

NYL2-C081/70-0121 | 2 Way Butterfly Valve | 8 Inch | 120V Non Spring Return Actuator | Bray Commercial

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to NYL2-C081/70-0121

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Bray Commercial NYL2-C081/70-0121 Documents

Bray NYL2-C081/70-0121 Catalog Bray NYL2-C081/70-0121 Submittal Bray NYL2-C081/70-0121 Installer's Guide Bray NYL2-C081/70-0121 Specifications Bray 70-0121 Catalog Bray 70-0121 Submittal Bray 70-0121 Installer's Guide Bray 70-0121 Specifications

Overview

Details for NYL2-C081/70-0121

Bray Commercial NYL2-C081/70-0121 8" 8bolt Butterfly 120v The Bray Commercial NYL2-C081/70-0121 8" 8bolt Butterfly Valve is designed for industrial applications that require precise flow control. Made of durable materials, this 120v valve features an 8-bolt design for a secure installation and a corrosion-resistant body for long-lasting performance. With its robust construction and precise operation, this butterfly valve is ideal for various industrial settings, including water treatment facilities, chemical plants, and manufacturing facilities. The 8" size ensures high flow capacity, while the 8-bolt design provides secure mounting and easy maintenance. Shop now at our HVAC supply store for the best prices and fast shipping on the Bray Commercial NYL2-C081/70-0121 8" 8bolt Butterfly Valve. Our commitment to quality products and exceptional customer service makes us your trusted source for industrial supplies.

Description:

Bray NYL2-C081/70-0121 2 Way Butterfly Valve, 8 Inch, 120V Non Spring Return Actuator.

Bray NY and AB series butterfly valves have been replaced by the all new 3L series located here:

Resilient seated butterfly valve model NYL2-C081 features:
- 8 inch.
- 200 mm.

- 50 PSI close-off.

- 90 degree 3316 Cv.
- 60 degree 1081 Cv.
- 2-way flow.

- Normally closed.

- For use with hot water, chilled water, condenser water, up to 50% glycol solutions.

- Cast iron body.

- Nylon coated ductile iron disc with optional aluminum bronze disc.

- EPDM peroxide cured seat.

- 416 stainless steel stem.

Factory installed actuator model 70-0121 features:

- 120 VAC.

- On/Off.

- NEMA type 4, 4x and IP65 enclosure.

- High visibility beacon position indicator.

- Manual declutchable override hand wheel, pull to engage, push to disengage.

- Auxiliary switch.

- ASTM B85 pressure die cast aluminum housing with polyester powder coat.

- Stainless steel exposed fasteners.

- 2 conduit connections.

- Optional 5 watt PTC style heater.

Bray’s NY and AB series commercial resilient seated butterfly valves set the design standard for quality, reliability and long life in a wide variety of HVAC applications. Specifically designed for automated applications on chilled water, hot water and condenser water, all NY and AB series automated butterfly valves are 100% factory tested for bubble-tight shutoff and low seating/unseating torque.

NY, AB and SS Series valves are available in 2-way configurations to 30" and 3-way configurations to 20”. Actuators include industrial electric, commercial electric, high pressure pneumatic and low pressure pneumatic in both spring return and non spring return variations for on/off and modulating control applications. Differential pressure ratings are available for high close-off (up to 175 PSI) and low close-off (50 PSI) requirements.

Bray Series 70 industrial actuators have become the industry standard in the Commercial HVAC industry due to it’s compact, reliable design that mounts directly to Bray’s industry leading butterfly and industrial ball valves without the need for brackets and linkages. Available in torque outputs from 600 to 18,000 lb.-in. (68 to 2033 NM), 24V and 120VAC, On/Off and Modulating units all in NEMA 4x and IP65 rated housings. These actuators are ideal for use on valves for Chillers, Cooling Towers, Boilers, Heat Exchangers and other outdoor applications. Furthermore, its advanced electronics assure reliable compatibility with virtually any analog control signal used in today’s building automation and temperature control system.

There is no better choice for building automation!

Actuator Power:120V
Flow:2 Way
Return Position:Non-Spring Return
Valve Size (In.):8
