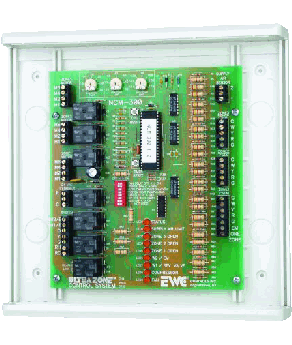

NCM-300L | NCM-300L 3 Zone Non Expand Cntr Panel (Less Sensor) | EWC Controls

2or3Zone 2H/1C ZoneCntrlPanel The NCM-300L from EWC Controls is a versatile zone control panel designed for use in industrial applications. It features 2 heating zones and 1 cooling zone, providing precise temperature control for various systems. The panel boasts a user-friendly interface and advanced features for optimal performance and efficiency. Key Features: 2 heating zones and 1 cooling zone for comprehensive temperature control Easy-to-use interface for quick and convenient operation Advanced features for precise temperature regulation Reliable and durable construction for extended service life Applications: HVAC systems Industrial process control Temperature regulation in manufacturing and processing environments Our HVAC supply store offers the best prices and fast shipping for all your industrial control needs. Contact us today to learn more about the NCM-300L zone control panel and how it can enhance your operations.

FEATURES

NUMBER OF ZONES:

• 2 - 3 Zones
• Non-expandable

COMPATIBLE EQUIPMENT:

• Gas/Electric/Hydro – Up to 2 Stages Heating and 1 Stage Cooling
• Heat Pump Conventional – Up to 2 Stages Heating and 1 Stage Cooling

COMPATIBLE THERMOSTATS:

• Any single stage Heat/Cool Thermostat or 2 Stage Heat
• 1 Stage cool Heat Pump Thermostat

COMPATIBLE DAMPERS:

• EWC Models URD
• ND
• RSD and SID
• Any 24vac 3 Wire or 2 Wire damper

ACCESSORIES:

• Model SAS – Supply air sensor (Included)
• Model CPLS – Coil Protection Lockout Switch

ADDITIONAL FEATURES:

*Staging via Adjustable On-board Timer (7 to 42 Minutes). *Enhanced Hydro-Air capabilities, can delay fan activation on Heating demand. *Supply Air Temperature Monitoring to help protect HVAC equipment. *Adjustable Purge time (90 or 120 seconds). *On Board LED’s indicate system operation.
