MXG461B50-30 | Magnetic Valve, 2", 2-way or floating, 35 Cv, 0 to 10V control, w/ fittings | Siemens Building Technology

Siemens Building Technology | MXG461B50-30

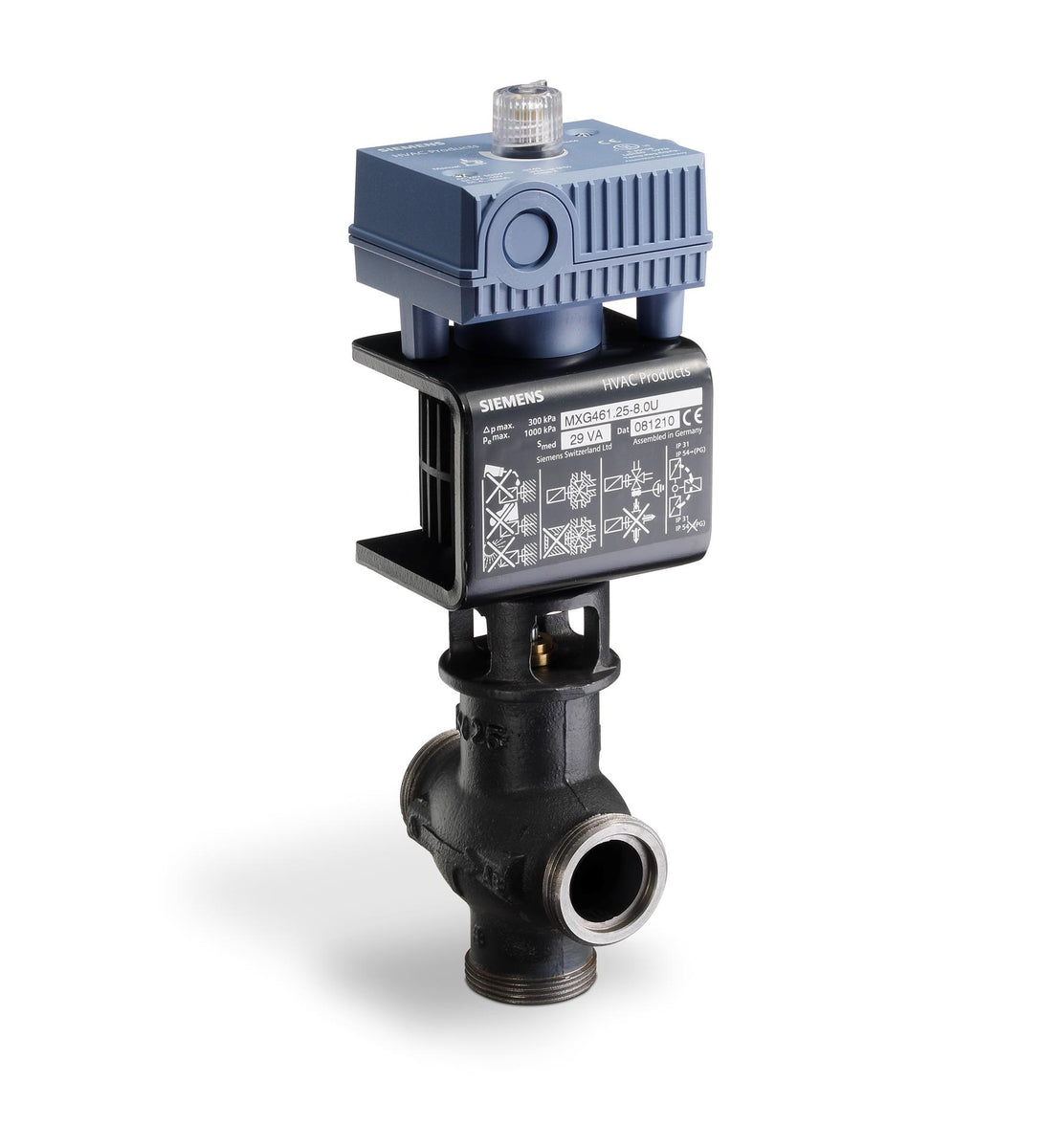

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MXG461B50-30

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Building Technology MXG461B50-30 Documents

Datasheet(Modulating control valves. PN16. MXG461B..)Datasheet(MXG461B Series Modulating Control Valves with Magnetic Actuators. Positioning Control and Position Feedback for Domestic Water Technical Instructions)Declaration of conformity(CE Declaration MXG461B../MXG462S..)Declaration of conformity(DVGW certificate. drinking water. PN16. MXG461B..)Declaration of conformity(RCM Supplier's Declaration of conformity MXG461B.../MXG462S..)Declaration of conformity(Test report EN 10204 (type 2.2))Declaration of conformity(UKCA Declaration of conformity. Electromagnetic valve actuators MXG461B../MXG462S..)Environmental Declaration(Modulating control valves. PN16. MXG461B... DN32..50)Mounting instruction(Modulating control valves. PN16. MXG461B... MXG462S... MVF461H..)Mounting instruction(Replacement electronic. ASE12)Other datasheet(Modulating control valves with magnetic actuator)Dimension Drawings(2/3-port. MXG461B... DN 50. 2D drawings. dxf/dwg format)Dimension Drawings(2/3-port. MXG461B... DN 50. 3D drawings. dwg format)Dimension Drawings(2/3-port. MXG461B... DN 50. 3D drawings. stp format) More Info

Overview

Details for MXG461B50-30

2" Magnetic Valve 35.1Cv [SKU: MXG461B50-30] [Brand: Siemens Building Technology] The MXG461B50-30 is a high-performance 2-inch magnetic valve designed for industrial applications. With a flow capacity of 35.1Cv, it efficiently handles large volumes of liquids and gases. Constructed from durable materials, this valve features a bronze body, stainless steel trim, and EPDM soft valve seat, ensuring longevity and corrosion resistance. It operates on a 24VAC solenoid and features a manual override for added control. This magnetic valve is ideal for various applications, including water treatment, irrigation systems, gas distribution, and industrial process control. Its compact design and NPT threaded connections allow for easy installation and integration into existing systems. Shop our HVAC supply store today for the best prices and fast shipping on the MXG461B50-30 Magnetic Valve 35.1Cv. Trust our expertise for your industrial and commercial HVAC needs!

Specifications

Operating range: DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
Leakage rate bypass: 0.2 % of kvs
Medium: Water
Stroke resolution ΔH/H₁₀₀: 1:1000
Material, valve body: Red brass CC499K (Rg5)
Δp_s: 600 kPa
Connecting thread: G 2¾" B
Ambient temperature, operation: -5…45 °C
Connecting thread: G 2¾ B "
Degree of protection: IP31
Leakage rate: 0.05 % of kvs
Material, inside set: CrNi steel
Material, valve body: Red brass CC491K, low-lead amount
Medium temperature: -20…130 °C; -4…266 ºF
Mounting position: Upright to horizontal
Nominal pressure: PN 16
Operating voltage: 24 VAC, 20…30 VDC
Permissible operating pressure: 1600 kPa
Position feedback: DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
Positioning signal: DC 0...10 V, DC 2...10 V, DC 0...20 mA, DC 4...20 mA, DC 0...20 V Phs
Positioning time: 2 s
Power consumption: 65 VA
Spring return function: A->AB closed
Valve characteristic: Equal-percentage , Linear
Δp_max: 600 kPa
Dimensions (W x H x D): 8.31 x 19.51 x 4 in
Product conformity: DVGW approved
k_vs: 30 m³/h
DN: 50
