MXG461B40-20 | Magnetic Valve, 1-1/2", 2-way or 3-way, 23 Cv, 0 to 10V control, w/ fittings | Siemens Building Technology

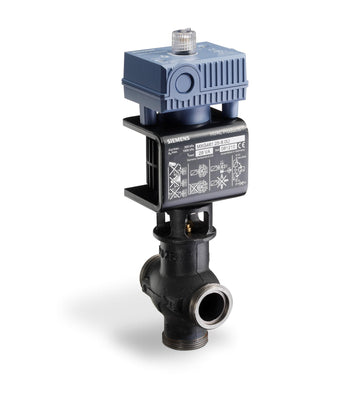

Siemens Building Technology | MXG461B40-20

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MXG461B40-20

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Building Technology MXG461B40-20 Documents

Datasheet(Modulating control valves. PN16. MXG461B..)Datasheet(MXG461B Series Modulating Control Valves with Magnetic Actuators. Positioning Control and Position Feedback for Domestic Water Technical Instructions)Declaration of conformity(CE Declaration MXG461B../MXG462S..)Declaration of conformity(DVGW certificate. drinking water. PN16. MXG461B..)Declaration of conformity(RCM Supplier's Declaration of conformity MXG461B.../MXG462S..)Declaration of conformity(Test report EN 10204 (type 2.2))Declaration of conformity(UKCA Declaration of conformity. Electromagnetic valve actuators MXG461B../MXG462S..)Environmental Declaration(Modulating control valves. PN16. MXG461B... DN32..50)Mounting instruction(Modulating control valves. PN16. MXG461B... MXG462S... MVF461H..)Mounting instruction(Replacement electronic. ASE12)Other datasheet(Modulating control valves with magnetic actuator)Dimension Drawings(2/3-port. MXG461B... DN 40. 2D drawings. dxf/dwg format)Dimension Drawings(2/3-port. MXG461B... DN 40. 3D drawings. dwg format)Dimension Drawings(2/3-port. MXG461B... DN 40. 3D drawings. stp format) More Info

Overview

Details for MXG461B40-20

Siemens Building Technology 1.5" MagValve CV 23: Enhanced Efficiency and Control in Flow Applications. The Siemens Building Technology MagValve CV 23 is a highly efficient and reliable 1.5" solenoid valve designed for precise flow control in industrial and commercial applications. Its robust construction ensures durability and longevity, while its advanced features provide exceptional performance. With a Cv of 23, this valve offers a high flow capacity, making it suitable for demanding applications. Its normally closed configuration allows for efficient flow regulation, preventing backflow and optimizing system performance. The MagValve CV 23 operates on a wide voltage range, ensuring compatibility with various electrical systems. Its compact size and lightweight design allow for easy installation and integration into existing systems. The valve is constructed with durable materials to withstand harsh industrial environments and provide long-term reliability. Our HVAC supply store is your trusted source for high-quality industrial products. We offer competitive prices and fast shipping to meet your project deadlines. Trust Siemens Building Technology and Our HVAC supply store for your flow control needs. Contact us today!

Specifications

Operating range: DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
Leakage rate bypass: 0.2 % of kvs
Medium: Water
Stroke resolution ΔH/H₁₀₀: 1:1000
Material, valve body: Red brass CC499K (Rg5)
Δp_s: 600 kPa
Connecting thread: G 2¼" B
Ambient temperature, operation: -5…45 °C
Connecting thread: G 2¼ B "
Degree of protection: IP31
Leakage rate: 0.05 % of kvs
Material, inside set: CrNi steel
Material, valve body: Red brass CC491K, low-lead amount
Medium temperature: -20…130 °C; -4…266 ºF
Mounting position: Upright to horizontal
Nominal pressure: PN 16
Operating voltage: 24 VAC, 20…30 VDC
Permissible operating pressure: 1600 kPa
Position feedback: DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
Positioning signal: DC 0...10 V, DC 2...10 V, DC 0...20 mA, DC 4...20 mA, DC 0...20 V Phs
Positioning time: 2 s
Power consumption: 43 VA
Spring return function: A->AB closed
Valve characteristic: Equal-percentage , Linear
Δp_max: 600 kPa
Dimensions (W x H x D): 7.72 x 18.96 x 4 in
Product conformity: DVGW approved
k_vs: 20 m³/h
DN: 40
