MXG461B20-5 | Magnetic Valve, 3/4", 2-way or floating, 5.8 Cv, 0 to 10V control, w/ fittings | Siemens Building Technology

Siemens Building Technology | MXG461B20-5

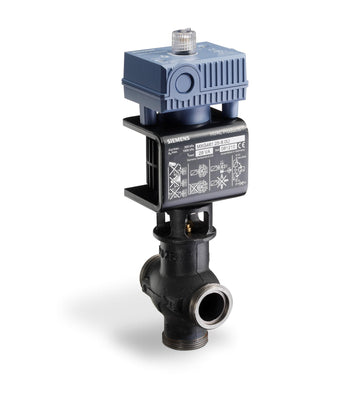

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MXG461B20-5

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Building Technology MXG461B20-5 Documents

Datasheet(Modulating control valves. PN16. MXG461B..)Datasheet(MXG461B Series Modulating Control Valves with Magnetic Actuators. Positioning Control and Position Feedback for Domestic Water Technical Instructions)Declaration of conformity(CE Declaration MXG461B../MXG462S..)Declaration of conformity(DVGW certificate. drinking water. PN16. MXG461B..)Declaration of conformity(RCM Supplier's Declaration of conformity MXG461B.../MXG462S..)Declaration of conformity(Test report EN 10204 (type 2.2))Declaration of conformity(UKCA Declaration of conformity. Electromagnetic valve actuators MXG461B../MXG462S..)Environmental Declaration(Modulating control valves. PN16. MXG461B... DN15..25)Mounting instruction(Modulating control valves. PN16. MXG461B... MXG462S... MVF461H..)Mounting instruction(Replacement electronic. ASE12)Other datasheet(Modulating control valves with magnetic actuator)Dimension Drawings(2/3-port. MXG461B... DN 20. 2D drawings. dxf/dwg format)Dimension Drawings(2/3-port. MXG461B... DN 20. 3D drawings. dwg format)Dimension Drawings(2/3-port. MXG461B... DN 20. 3D drawings. stp format) More Info

Overview

Details for MXG461B20-5

MAG VLV 3/4" 5.9CV: Siemens Building Technology MXG461B20-5The Siemens Building Technology MXG461B20-5 is a magnetic valve designed for industrial applications. With a 3/4-inch orifice and a pressure rating of 5.9 CV, this valve is suitable for controlling the flow of liquids or gases in high-pressure systems. The MXG461B20-5 is constructed from durable materials to withstand harsh industrial environments. Its brass body provides corrosion resistance, while its stainless steel trim ensures longevity. The valve is also equipped with a manual override, allowing for precise flow control even in the event of a power failure. The Siemens Building Technology MXG461B20-5 is a versatile and reliable valve for a wide range of industrial applications. Its compact design and ease of installation make it an ideal choice for space-constrained or hard-to-reach locations. Our HVAC supply store offers the best prices and fast shipping for your products!

Specifications

Operating range: DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
Leakage rate bypass: 0.2 % of kvs
Medium: Water
Stroke resolution ΔH/H₁₀₀: 1:1000
Material, valve body: Red brass CC499K (Rg5)
Δp_s: 800 kPa
Connecting thread: G 1¼" B
Ambient temperature, operation: -5…45 °C
Connecting thread: G 1¼ B "
Degree of protection: IP31
Leakage rate: 0.05 % of kvs
Material, inside set: CrNi steel
Material, valve body: Red brass CC491K, low-lead amount
Medium temperature: -20…130 °C; -4…266 ºF
Mounting position: Upright to horizontal
Nominal pressure: PN 16
Operating voltage: 24 VAC, 20…30 VDC
Permissible operating pressure: 1600 kPa
Position feedback: DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
Positioning signal: DC 0...10 V, DC 2...10 V, DC 0...20 mA, DC 4...20 mA, DC 0...20 V Phs
Positioning time: 2 s
Power consumption: 33 VA
Spring return function: A->AB closed
Valve characteristic: Equal-percentage , Linear
Δp_max: 800 kPa
Dimensions (W x H x D): 6.42 x 15.41 x 3.98 in
Product conformity: DVGW approved
k_vs: 5 m³/h
DN: 20
