MVF461H32-12 | Magnetic Valve, 1-1/4", 2-way, 14 Cv, 0 to 10V control, w/o Flange Kits | Siemens Building Technology

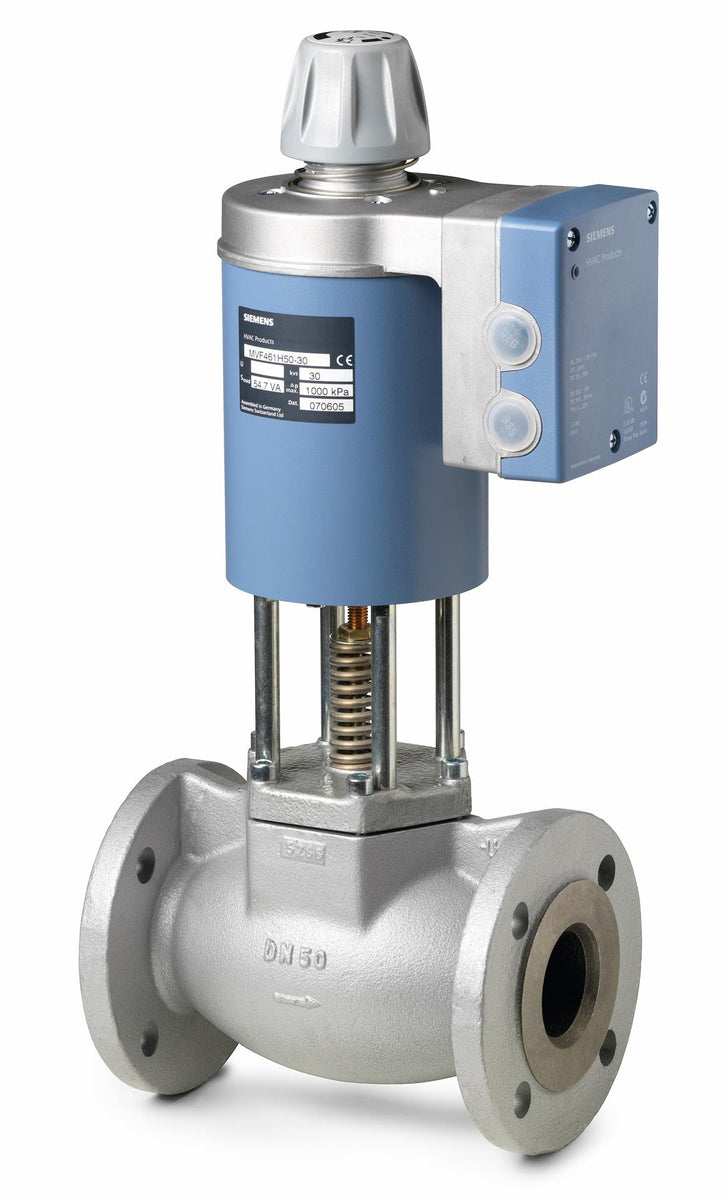

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MVF461H32-12
Documents and manuals
Siemens Building Technology MVF461H32-12 Documents
Datasheet(Modulating control valves. PN16. MVF461H..)Datasheet(MVF461H Series Modulating Control Valves with Magnetic. Positioning Control and Position Feedback for Hot Water and Steam Technical Instructions)Declaration of conformity(CE declaration MVF461H..)Declaration of conformity(RCM Supplier's Declarationof conformity MVF461H…)Declaration of conformity(Test report EN 10204 (type 2.2))Declaration of conformity(Electromagnetic valve actuators MVF461H..)Environmental Declaration(Modulationg control valves. PN16. . MVF461H..)Mounting instruction(Modulating control valves. PN16. MXG461B... MXG462S... MVF461H..)Mounting instruction(Replacement electronic. ASE12)Dimension Drawings(2-port valve. MVF461H... DN 25. 2D drawings. dxf/dwg format)Dimension Drawings(2-port valve. MVF461H... DN 32. 3D drawings. dwg format)Dimension Drawings(2-port valve. MVF461H... DN 32. 3D drawings. stp format) More Info
Overview
Details for MVF461H32-12
MAG VALVE, 1.25", Cv14, STEAM - MVF461H32-12
Siemens Building Technology's MVF461H32-12 is a 1.25" solenoid-operated magnetic valve specifically engineered for steam applications. Featuring a Cv value of 14, it efficiently controls the flow of steam in heating, ventilation, and air conditioning (HVAC) systems.
Key Features and Benefits:
* Strong and reliable solenoid actuator for quick and precise valve operation
* Robust brass body for durability in demanding industrial environments
* Cv14 flow coefficient ensures efficient steam flow control
* Compact design enables easy installation in confined spaces
* Manual override lever for convenient valve operation during maintenance
Technical Specifications:
Body Material: Brass
Valve Size: 1.25"
Flow Coefficient (Cv): 14
Pressure Range: Up to 250 psi
Temperature Range: Up to 350°F (177°C)
Power: 24 VAC
Connection: Solder (sweat)
Applications:
The MVF461H32-12 is ideal for use in steam heating and distribution systems, industrial process lines, and other applications requiring precise steam flow control.
Our HVAC supply store is your one-stop shop for all your industrial products. With competitive pricing and fast shipping, we make it easy to get the products you need, when you need them. Shop now!
Specifications
- Ambient temperature, operation
- -5…45 °C
- Degree of protection
- IP31
- kvs
- 12 m³/h
- Leakage rate
- 0.05 % of kvs
- Material, inside set
- CrNi steel
- Material, valve body
- Nodular cast iron EN-GJS-400-18-LT
- Medium temperature
- 1…180 °C; 34…356 ºF
- Mounting position
- Upright to horizontal
- Nominal pressure
- PN 16
- Operating voltage
- 24 VAC, 24 VDC
- Permissible operating pressure
- Liquid, max: 1300 kPa; Steam, max: 900 kPa
- Position feedback
- DC 0...10 V, DC 2...10 V, DC 0...20 mA, DC 4...20 mA
- Positioning signal
- DC 0...10 V, DC 2...10 V, DC 0...20 mA, DC 4...20 mA, DC 0...20 V Phs
- Positioning time
- 2 s
- Power consumption
- 43 VA
- Spring return function
- A-> AB closed
- Valve characteristic
- Equal-percentage , Linear
- Δpmax
- 1000 kPa
- Δps
- 1000 kPa
- Operating range
- DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
- Absolute pressure p1 steam
- 900 kPa abs
- Medium
- Steam , Water , Saturated steam
- Stroke resolution ΔH/H100
- 1:1000
- Material, valve body
- Cast iron EN-GJS-400-18-LT
- Dimensions (W x H x D)
- 8.46 x 17.87 x 5.51 in
- DN
- 32
