MVF461H15-1.5 | Magnetic 1/2" Valve, 2-way, 1.8 Cv, 0 to 10V control, w/o Flange Kits | Siemens Building Technology

Siemens Building Technology | MVF461H15-1.5

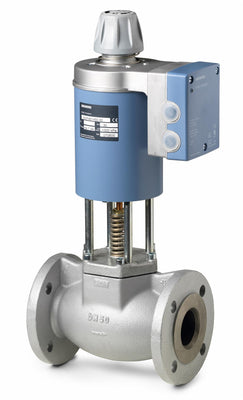

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MVF461H15-1.5

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Building Technology MVF461H15-1.5 Documents

Datasheet(Modulating control valves. PN16. MVF461H..)Datasheet(MVF461H Series Modulating Control Valves with Magnetic. Positioning Control and Position Feedback for Hot Water and Steam Technical Instructions)Declaration of conformity(CE declaration MVF461H..)Declaration of conformity(RCM Supplier's Declarationof conformity MVF461H…)Declaration of conformity(Test report EN 10204 (type 2.2))Declaration of conformity(Electromagnetic valve actuators MVF461H..)Environmental Declaration(Modulationg control valves. PN16. . MVF461H..)Mounting instruction(Modulating control valves. PN16. MXG461B... MXG462S... MVF461H..)Mounting instruction(Replacement electronic. ASE12)Dimension Drawings(2-port valve. MVF461H... DN 15. 2D drawings. dxf/dwg format)Dimension Drawings(2-port valve. MVF461H... DN 15. 3D drawings. dwg format)Dimension Drawings(2-port valve. MVF461H... DN 15. 3D drawings. stp format) More Info

Overview

Details for MVF461H15-1.5

MVF461H15-1.5 Solenoid Valve by Siemens Building Technology The Siemens MVF461H15-1.5 solenoid valve is a 1/2-inch solenoid valve designed for steam applications with a Cv of 1.8. This valve is made of brass and has a maximum pressure of 150 psi. It is also suitable for use with water, air, and other gases. The MVF461H15-1.5 is a normally closed valve, which means that it is closed when there is no power applied to the solenoid. When power is applied, the solenoid opens the valve, allowing fluid to flow through. This valve has a manual override, which allows it to be opened or closed manually in the event of a power failure. Our HVAC supply store offers the best prices and fast shipping on all of your Siemens Building Technology products!

Specifications

Ambient temperature, operation: -5…45 °C
Degree of protection: IP31
k_vs: 1.5 m³/h
Leakage rate: 0.05 % of kvs
Material, inside set: CrNi steel
Material, valve body: Nodular cast iron EN-GJS-400-18-LT
Medium temperature: 1…180 °C; 34…356 ºF
Mounting position: Upright to horizontal
Nominal pressure: PN 16
Operating voltage: 24 VAC, 24 VDC
Permissible operating pressure: Liquid, max: 1300 kPa; Steam, max: 900 kPa
Position feedback: DC 0...10 V, DC 2...10 V, DC 0...20 mA, DC 4...20 mA
Positioning signal: DC 0...10 V, DC 2...10 V, DC 0...20 mA, DC 4...20 mA, DC 0...20 V Phs
Positioning time: 2 s
Power consumption: 33 VA
Spring return function: A-> AB closed
Valve characteristic: Equal-percentage , Linear
Δp_max: 1000 kPa
Δp_s: 1000 kPa
Operating range: DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
Absolute pressure p1 steam: 900 kPa abs
Medium: Steam , Water , Saturated steam
Stroke resolution ΔH/H₁₀₀: 1:1000
Material, valve body: Cast iron EN-GJS-400-18-LT
Dimensions (W x H x D): 7.13 x 15.26 x 3.98 in
DN: 15
