The MTL7706 from Dwyer Instruments is an intrinsically safe barrier that isolates and protects hazardous area field devices from non-hazardous areas. It converts 4-20 mA signals to 4-20 mA, providing isolation and signal conditioning in a single compact unit. The MTL7706 is designed to meet the requirements of intrinsically safe applications, offering safe, reliable signal transmission in hazardous environments. Key Features: - HART pass-through capability - Two-wire loop-powered operation - Input and output ranges of 4-20 mA - Input impedance of 250 ohms - Output impedance of 0 ohms - DIN-rail mountable design - Compact and lightweight construction - Certified intrinsically safe for hazardous areas The MTL7706 is an essential component for hazardous area applications, ensuring safe and reliable signal transmission between field devices and control systems. Our HVAC supply store offers the MTL7706 at the best prices with fast shipping. Get yours today and experience the safety and reliability of Dwyer Instruments' innovative solutions!

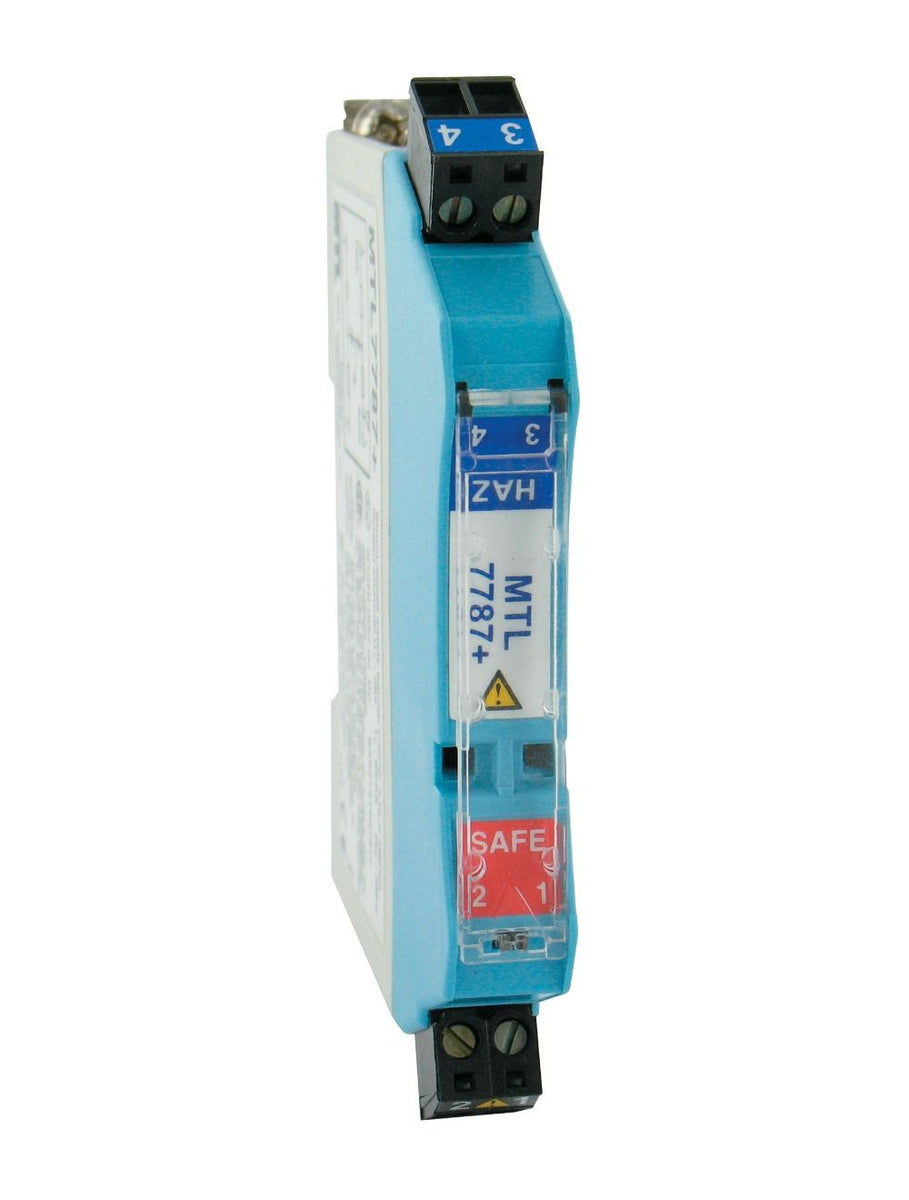

SERIES MTL7706/7787 ZENER BARRIER

Intrinsically Safe Barriers for Hazardous Locations

The MTL7706/7787 is an intrinsically safe (IS) shunt-diode barrier that can be used to communicate with and provide isolations for certain Dwyer® transmitters approved for use in hazardous areas. These barriers limit the amount of energy allowed to pass into the hazardous area, which inhibit ignition in flammable atmospheres.

Product Applications

Electrically isolates pressure and level transmitters from unregulated circuits for intrinsically safe applications

Approved for use in hazardous areas

Specifications

Series: MTL7706/7787 ZENER BARRIER
Category/Type: Process Control
Type: Intrinsically Safe Barriers
Series: MTL7706/7787 ZENER BARRIER
Transmitter Voltage: 16.2 V @ 20 mA with 250Ω load (negative w.r.t. earth); 11.0 V @ 20 mA with 500Ω load (negative w.r.t. earth).
Safe Area Output: 4 to 20 mA.
Load Resistance: 0 to 500Ω.
Power Requirement: 20 to 35 VDC w.r.t. earth.
Accuracy: ±2 µA under all conditions.
LED Indicator: Green: Power Indication.
Temperature Limits: Operating: -4 to 140°F (-20 to 60°C); Storage: -40 to 176°F (-40 to 80°C).
Humidity: 5 to 95% RH.
Terminals: Accommodate up to 2.5 mm² stranded or single-core.
Safety Description: 28 µV; 300Ω; 93 mA.
Weight: 4.9 oz (140 g).
Agency Approvals: See table on Catalog page.
