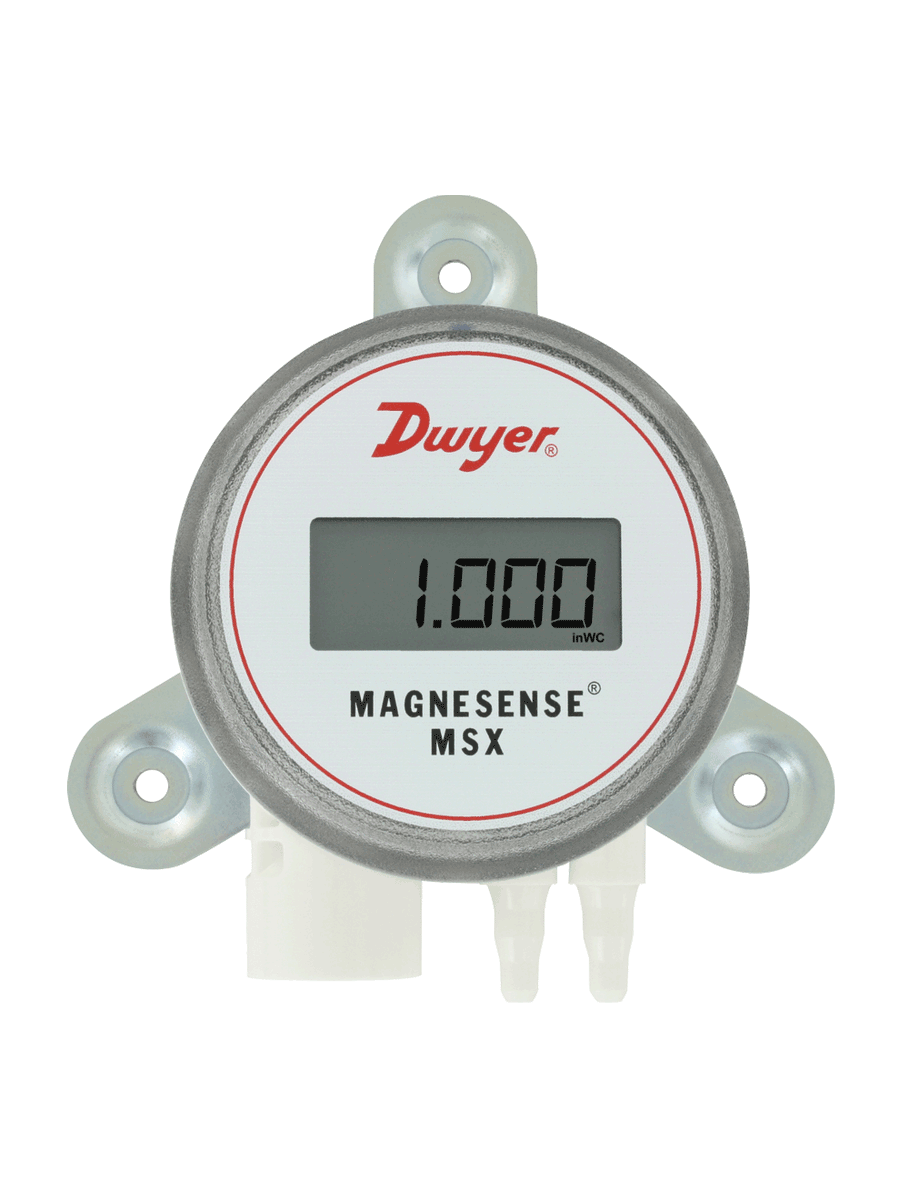

MSX-W12-IN-LCD | Differential pressure transmitter | wall mount | universal current/voltage outputs | uni-directional | range 2 (1 | 2 | 3 | 5" wc) with LCD display. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MSX-W12-IN-LCD

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments MSX-W12-IN-LCD Documents

Instruction Manual Instruction Manual (BACnet/Modbus)Quick Start Guide Quick Start Guide - Communicating Models Series MSX Catalog Page MSX IP Test Report MSX Data Sheet More Info

Overview

Details for MSX-W12-IN-LCD

MSX-W12-IN-LCD Differential Pressure Transmitter from Dwyer Instruments The MSX-W12-IN-LCD Differential Pressure Transmitter from Dwyer Instruments is designed to provide accurate and reliable pressure measurement in a wide range of industrial applications. This transmitter features a rugged stainless steel construction and a local LCD display, making it suitable for use in harsh and demanding environments. With its high accuracy and stability, it is ideal for applications requiring precise pressure measurement. Key Features and Benefits: * Universal input: Accepts a wide range of differential pressure ranges, from 0 to 10 inches of water (0 to 250 mbar) up to 0 to 100 psi (0 to 7 bar). * Local LCD display: Provides clear and easy-to-read pressure measurements, allowing for quick and easy monitoring. * Stainless steel construction: Offers durability and corrosion resistance, ensuring long-term performance. * High accuracy: Delivers precise pressure measurements with a linearity of Â±0.5% of span. * Compact design: Enables easy installation and integration into existing systems. Applications: * HVAC systems * Process control * Water and wastewater treatment * Pneumatic systems * Industrial machinery Shop at our HVAC supply store for the best prices and fast shipping on the MSX-W12-IN-LCD Differential Pressure Transmitter from Dwyer Instruments.

Series MSX Magnesense® Differential Pressure Transmitter

Monitors Differential Pressure, Air Velocity and Volumetric Flow

The Series MSX Magnesense® Differential Pressure Transmitter combines the stability and versatility of the original Series MS2 Magnesense® II transmitter for use in building control applications. The MSX simplifies the ordering process to deliver the desired configuration, which reduces product setup time. Pressure ranges are available in Pa, mm w.c., and in w.c. All pressure ranges can be configured in unidirectional or bidirectional modes, providing a total of 32 ranges. The MSX transmitter can provide a linear pressure output or a linear velocity output with the square root extraction from the transmitter. Additional parameters have been included to expand the square root capability for calculating flow. Dual voltage and milliamp output signals can be used to provide both control and equipment output signal verification.

NIST CALIBRATION available in Product Configurator.

Product Applications

Filter monitoring in air handler units
Building pressure in pharmaceutical/semiconductor clean rooms
Duct static pressure in commercial buildings
Air velocity/flow in VAV systems

Read LCD values easier with rotatable 180° display
Quick and easy wiring via the optional toolless terminal block
Add safety to variety of applications with UL94 V-0 and plenum ratings

Specifications

Series: MSX Magnesense® Differential Pressure Transmitter
Service: Air and non-combustible; compatible gases.
Wetted Materials: Consult factory.
Accuracy: ±1% FSO.
Stability: ±1% FSO/year.
Temperature Limits: -4 to 158°F (-20 to 70°C).
Pressure Limits: Ranges 0 and 1: 3.6 psi max operation; 6 psi burst; Ranges 2; 3 and 4: 6 psi max operation; 6 psi burst.
Power Requirements: 10-36 VDC (2-wire); 17-36 VDC or isolated 21.6-33 VAC (3-wire).
Output Signals: 4-20 mA (2-wire); 0-10 V or 0-5 V selectable (3-wire).
Response Time: Instantaneous (default) or 3 s (selectable).
Zero and Span Adjustments: Digital push-button.
Loop Resistance: Current output: 0-1250 Ω max; Voltage output: min. load resistance 1 k Ω.
Current Consumption: 21 mA max continuous.
Electrical Connections: 4-wire removable European style terminal block for 16 to 26 AWG.
Electrical Entry: 1/2" NPS thread.
Display (optional): 4 digit LCD.
Process Connections: 1/8"; 3/16"; 1/4"; 5 mm; and 6 mm ID flexible tubing.
Enclosure Rating: NEMA 4X (IP66); UL 2043 (Plenum); UL94 V-0.
Mounting Orientation: Pressure sensor measurement unaffected by orientation.
Weight: 8.0 oz (230 g).
Agency Approvals: CE.
