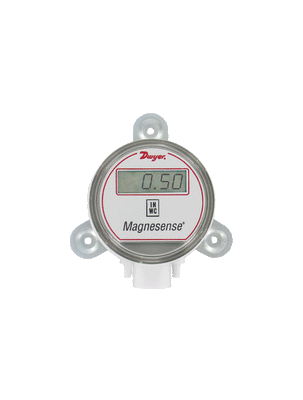

MS-312-LCD | Differential pressure transmitter | 0-10 V output | selectable range 1" | 2" | 5" w.c. (250 | 500 | 1250 Pa) | duct mount | with LCD. | Dwyer Instruments

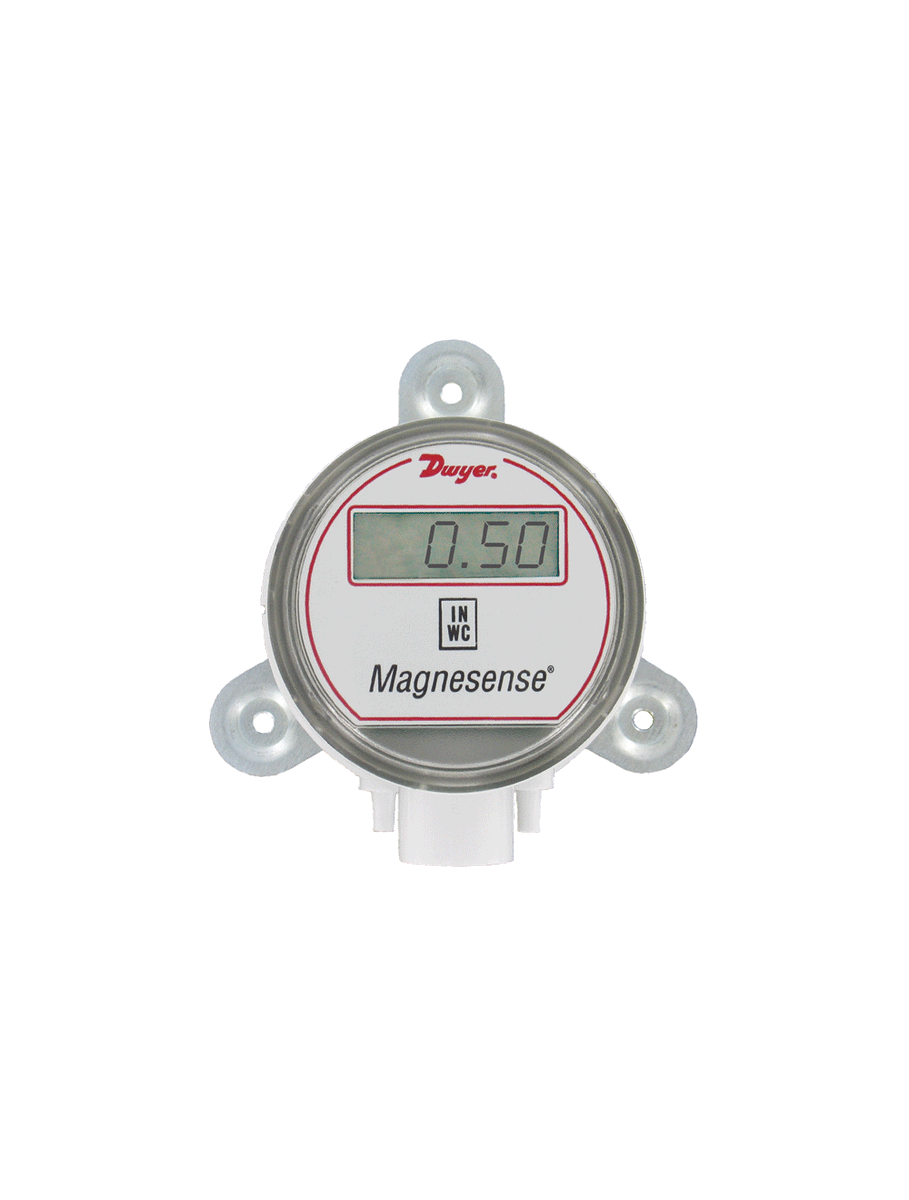

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MS-312-LCD

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments MS-312-LCD Documents

Instruction Manual (ranges lower than 10")Instruction Manual (ranges 10" & up)Series MS Catalog Page MS More Info

Overview

Details for MS-312-LCD

Dwyer Instruments MS-312-LCD: A Precise Differential Pressure Transmitter The Dwyer Instruments MS-312-LCD is designed to accurately measure differential pressure and display it on a digital LCD screen. With its versatile capabilities, it suits various industrial applications where precise pressure monitoring is crucial. Key Features: * Measures differential pressure from 0-10 V * High precision and accuracy * Compact and easy-to-mount design * Digital LCD display for clear visibility * Durable construction for reliable operation Benefits: * Ensures accurate pressure measurements in harsh environments * Provides real-time pressure data for efficient process control * Simplifies installation and maintenance * Facilitates quick and accurate readings The MS-312-LCD's rugged design and precise performance make it ideal for monitoring pressure in HVAC systems, cleanrooms, filtration equipment, and more. Its digital display enhances readability, providing accurate readings even in challenging conditions. Trust our HVAC supply store for Your Industrial Needs At our HVAC supply store, we offer the best prices on top-of-the-line products like the Dwyer Instruments MS-312-LCD. With fast shipping and exceptional customer support, we're your trusted partner for all your industrial supply needs. Order now to experience the precision and reliability of this exceptional differential pressure transmitter!

SERIES MS MAGNESENSE® DIFFERENTIAL PRESSURE TRANSMITTER

Monitors Pressure & Air Velocity

The Series MS Magnesense® Differential Pressure Transmitter is an extremely versatile transmitter for monitoring pressure and air velocity. This compact package is loaded with features such as, field selectable English or metric ranges, field upgradeable LCD display, adjustable dampening of output signal (with optional display) and the ability to select a square root output for use with Pitot tubes and other similar flow sensors.

Along with these features, the patented magnetic sensing technology providesexceptional long term performance and enables the Magnesense® DifferentialPressure Transmitter to be the single solution for your pressure and flow applications.

NIST CALIBRATION available in Product Configurator.

Please see Series AT-MS for ATEX approved.

Product Applications

Building pressure monitoring
Duct pressure monitoring
Fan velocity measurement
Zone differential pressure monitoring
Filter condition monitoring

Field selectable English or Metric ranges
Field upgradeable LCD display
Adjustable damping of output signal (with optional display)
Ability to select a square root output for use with pitot tubes and other similar flow sensors

Specifications

Series: MS MAGNESENSE® DIFFERENTIAL PRESSURE TRANSMITTER
Category/Type: Pressure
Type: Differential Pressure
Series: MS MAGNESENSE® DIFFERENTIAL PRESSURE TRANSMITTER
Service: Air and non-combustible compatible gases.
Wetted Materials: Consult factory.
Accuracy: ±1% for 0.25" (50 Pa); 0.5" (100 Pa); 2" (500 Pa); 5" (1250 Pa); 10" (2kPa); 15" (3 kPa); 25" (5 kPa) ±2% for 0.1" (25 Pa); 1" (250 Pa) and all bidirectionalranges.
Stability: ±1% FS/year.
Temperature Limits: 0 to 150°F (-18 to 66°C).
Pressure Limits: 1 psi maximum; operation; 10 psi; burst.
Power Requirements: 10 to 35 VDC (2-wire); 17 to 36 VDC or isolated 21.6 to 33 VAC (3-wire).
Output Signals: 4 to 20 mA (2-wire); 0 to 5 V; 0 to 10 V (3-wire).
Response Time: 300 ms.
Zero & Span Adjustments: Digital push button.
Loop Resistance: Current output: 0-1250 Ω max; Voltage output: min. loadresistance 1 kΩ.
Current Consumption: 40 mA max.
Display (optional): 4 digit LCD.
Electrical Connections: 4-20 mA; 2-wire: European Style Terminal Block for 16 to 26 AWG. 0-10 V; 3-wire: European Style Terminal Block 16 to 22 AWG.
Electrical Entry: 1/2" NPS Thread. Accessory: Cable Gland for 5 to 10 mm diameter cable.
Process Connection: 3/16" (5 mm) ID tubing. Maximum OD 9 mm.
Enclosure Rating: NEMA 4X (IP66).
Mounting Orientation: Diaphragm in vertical position.
Weight: 8.0 oz (230 g).
Agency Approvals: CE.
