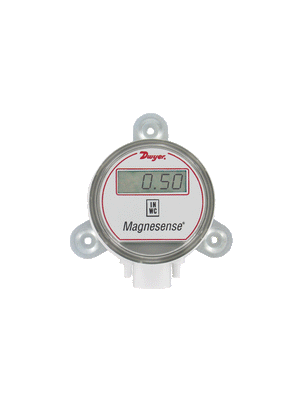

MS-141-LCD | Differential pressure transmitter | 4-20 mA output | selectable range 15" w.c. (3 kPa) | wall mount | with LCD. | Dwyer Instruments

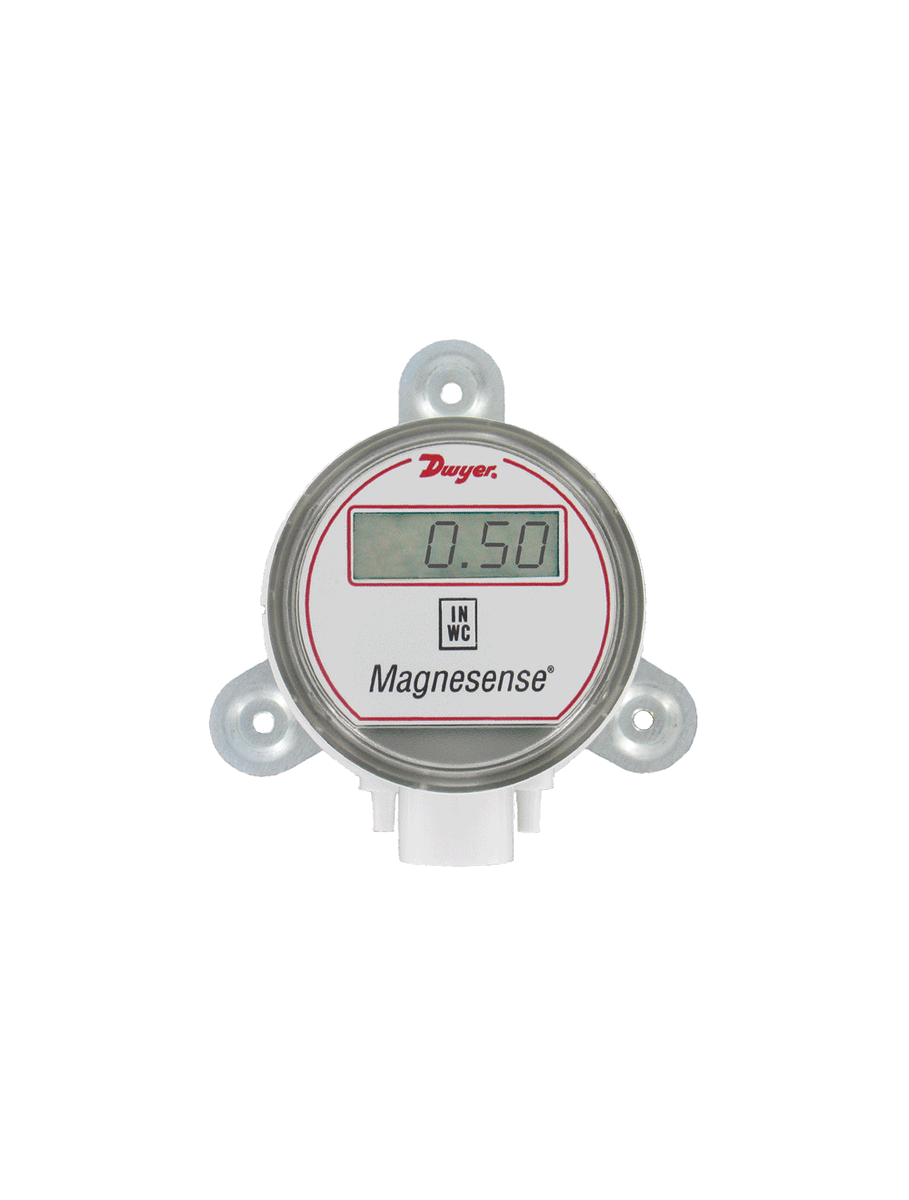

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MS-141-LCD

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments MS-141-LCD Documents

Instruction Manual (ranges lower than 10")Instruction Manual (ranges 10" & up)Series MS Catalog Page MS More Info

Overview

Details for MS-141-LCD

Dwyer Instruments MS-141-LCD DiffPressTnsmtr 4-20Ma w/LCD Dwyer Instruments MS-141-LCD DiffPressTnsmtr precisely measures and transmits differential pressure, making it an ideal choice for various industrial applications. Featuring a built-in LCD display, this transmitter enables real-time monitoring and adjustment of pressure levels. Key Features: * Differential pressure measurement range: 0-25 in. H2O * Output signal: 4-20 mA * LCD display for pressure readings * Push-button zero and span calibration * Compact and rugged design for easy installation and use Benefits: * Accurate and reliable pressure measurement * Easy-to-read LCD display for convenient monitoring * User-friendly calibration ensures precise readings * Durable construction withstands harsh industrial environments Applications: * HVAC systems * Pneumatic controls * Medical equipment * Process monitoring * Environmental testing Shop our HVAC supply store for the best prices and fast shipping on the MS-141-LCD DiffPressTnsmtr 4-20Ma w/LCD and other industrial maintenance products. Our commitment to quality and customer satisfaction makes us your trusted source for all your maintenance needs. Order now and experience the difference!

SERIES MS MAGNESENSE® DIFFERENTIAL PRESSURE TRANSMITTER

Monitors Pressure & Air Velocity

The Series MS Magnesense® Differential Pressure Transmitter is an extremely versatile transmitter for monitoring pressure and air velocity. This compact package is loaded with features such as, field selectable English or metric ranges, field upgradeable LCD display, adjustable dampening of output signal (with optional display) and the ability to select a square root output for use with Pitot tubes and other similar flow sensors.

Along with these features, the patented magnetic sensing technology providesexceptional long term performance and enables the Magnesense® DifferentialPressure Transmitter to be the single solution for your pressure and flow applications.

NIST CALIBRATION available in Product Configurator.

Please see Series AT-MS for ATEX approved.

Product Applications

Building pressure monitoring
Duct pressure monitoring
Fan velocity measurement
Zone differential pressure monitoring
Filter condition monitoring

Field selectable English or Metric ranges
Field upgradeable LCD display
Adjustable damping of output signal (with optional display)
Ability to select a square root output for use with pitot tubes and other similar flow sensors

Specifications

Series: MS MAGNESENSE® DIFFERENTIAL PRESSURE TRANSMITTER
Service: Air and non-combustible compatible gases.
Wetted Materials: Consult factory.
Accuracy: ±1% for 0.25" (50 Pa); 0.5" (100 Pa); 2" (500 Pa); 5" (1250 Pa); 10" (2kPa); 15" (3 kPa); 25" (5 kPa) ±2% for 0.1" (25 Pa); 1" (250 Pa) and all bidirectionalranges.
Stability: ±1% FS/year.
Temperature Limits: 0 to 150°F (-18 to 66°C).
Pressure Limits: 1 psi maximum; operation; 10 psi; burst.
Power Requirements: 10 to 35 VDC (2-wire); 17 to 36 VDC or isolated 21.6 to 33 VAC (3-wire).
Output Signals: 4 to 20 mA (2-wire); 0 to 5 V; 0 to 10 V (3-wire).
Response Time: 300 ms.
Zero & Span Adjustments: Digital push button.
Loop Resistance: Current output: 0-1250 Ω max; Voltage output: min. loadresistance 1 kΩ.
Current Consumption: 40 mA max.
Display (optional): 4 digit LCD.
Electrical Connections: 4-20 mA; 2-wire: European Style Terminal Block for 16 to 26 AWG. 0-10 V; 3-wire: European Style Terminal Block 16 to 22 AWG.
Electrical Entry: 1/2" NPS Thread. Accessory: Cable Gland for 5 to 10 mm diameter cable.
Process Connection: 3/16" (5 mm) ID tubing. Maximum OD 9 mm.
Enclosure Rating: NEMA 4X (IP66).
Mounting Orientation: Diaphragm in vertical position.
Weight: 8.0 oz (230 g).
Agency Approvals: CE.
