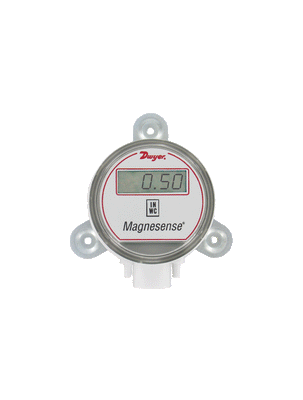

MS-131-LCD | Differential pressure transmitter | 4-20 mA output | selectable range 10" w.c. (2 kPa) | wall mount | with LCD. | Dwyer Instruments

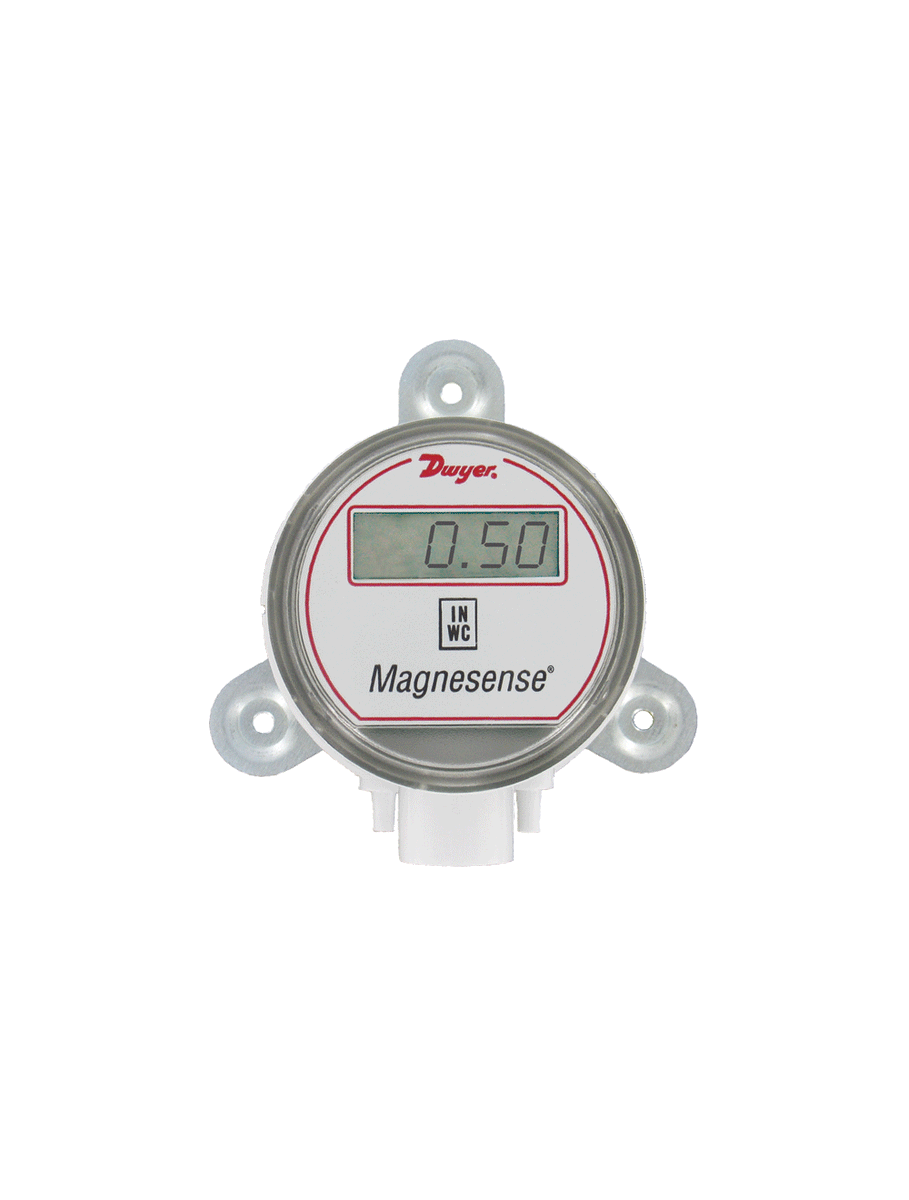

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MS-131-LCD

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments MS-131-LCD Documents

Instruction Manual (ranges lower than 10")Instruction Manual (ranges 10" & up)Series MS Catalog Page MS More Info

Overview

Details for MS-131-LCD

MS-131-LCD Differential Pressure Transmitter: Precision Monitoring for Industrial Applications The Dwyer Instruments MS-131-LCD Differential Pressure Transmitter provides accurate and reliable pressure measurement for a wide range of industrial applications. Its rugged construction ensures dependable performance in demanding environments, while its intuitive LCD display allows for easy monitoring and configuration. Key Features: - Differential pressure measurement range: 0 to 10 inches of water column (inWC) - Accuracy: Â±0.5% of full scale - 4-20 mA output signal - Loop-powered, 12 to 24 VDC - LCD display for real-time pressure readings and configuration - Compact design for easy installation Benefits: - Monitors pressure levels precisely, ensuring optimal system performance - Rugged construction withstands harsh industrial environments - Intuitive display simplifies setup and monitoring - Loop-powered operation reduces wiring requirements - Compact design allows for flexible installation in space-constrained areas Applications: - HVAC systems - Industrial process control - Airflow monitoring - Filter monitoring - Pressure drop measurement With its precision measurement capabilities, rugged design, and user-friendly interface, the Dwyer Instruments MS-131-LCD Differential Pressure Transmitter is an essential tool for industrial professionals seeking reliable pressure monitoring solutions. Order yours today at our HVAC supply store for the best prices and fast shipping!

SERIES MS MAGNESENSE® DIFFERENTIAL PRESSURE TRANSMITTER

Monitors Pressure & Air Velocity

The Series MS Magnesense® Differential Pressure Transmitter is an extremely versatile transmitter for monitoring pressure and air velocity. This compact package is loaded with features such as, field selectable English or metric ranges, field upgradeable LCD display, adjustable dampening of output signal (with optional display) and the ability to select a square root output for use with Pitot tubes and other similar flow sensors.

Along with these features, the patented magnetic sensing technology providesexceptional long term performance and enables the Magnesense® DifferentialPressure Transmitter to be the single solution for your pressure and flow applications.

NIST CALIBRATION available in Product Configurator.

Please see Series AT-MS for ATEX approved.

Product Applications

Building pressure monitoring
Duct pressure monitoring
Fan velocity measurement
Zone differential pressure monitoring
Filter condition monitoring

Field selectable English or Metric ranges
Field upgradeable LCD display
Adjustable damping of output signal (with optional display)
Ability to select a square root output for use with pitot tubes and other similar flow sensors

Specifications

Series: MS MAGNESENSE® DIFFERENTIAL PRESSURE TRANSMITTER
Category/Type: Pressure
Type: Differential Pressure
Series: MS MAGNESENSE® DIFFERENTIAL PRESSURE TRANSMITTER
Service: Air and non-combustible compatible gases.
Wetted Materials: Consult factory.
Accuracy: ±1% for 0.25" (50 Pa); 0.5" (100 Pa); 2" (500 Pa); 5" (1250 Pa); 10" (2kPa); 15" (3 kPa); 25" (5 kPa) ±2% for 0.1" (25 Pa); 1" (250 Pa) and all bidirectionalranges.
Stability: ±1% FS/year.
Temperature Limits: 0 to 150°F (-18 to 66°C).
Pressure Limits: 1 psi maximum; operation; 10 psi; burst.
Power Requirements: 10 to 35 VDC (2-wire); 17 to 36 VDC or isolated 21.6 to 33 VAC (3-wire).
Output Signals: 4 to 20 mA (2-wire); 0 to 5 V; 0 to 10 V (3-wire).
Response Time: 300 ms.
Zero & Span Adjustments: Digital push button.
Loop Resistance: Current output: 0-1250 Ω max; Voltage output: min. loadresistance 1 kΩ.
Current Consumption: 40 mA max.
Display (optional): 4 digit LCD.
Electrical Connections: 4-20 mA; 2-wire: European Style Terminal Block for 16 to 26 AWG. 0-10 V; 3-wire: European Style Terminal Block 16 to 22 AWG.
Electrical Entry: 1/2" NPS Thread. Accessory: Cable Gland for 5 to 10 mm diameter cable.
Process Connection: 3/16" (5 mm) ID tubing. Maximum OD 9 mm.
Enclosure Rating: NEMA 4X (IP66).
Mounting Orientation: Diaphragm in vertical position.
Weight: 8.0 oz (230 g).
Agency Approvals: CE.
