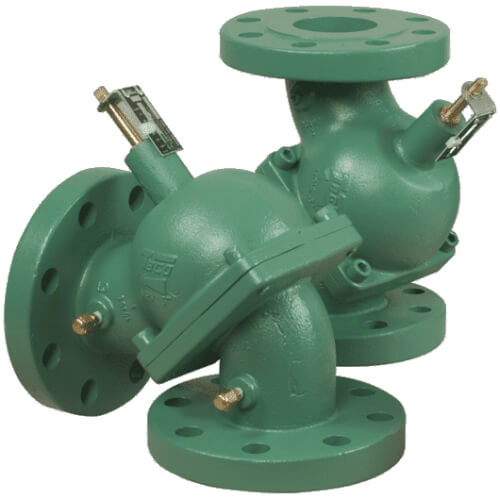

MPV040-4 | 4" Flanged Plus Two Multi Purpose Valve (357 Cv) | Taco

4" FLgd Triple Duty Valve (MPV040-4): The Taco MPV040-4 is a triple-duty valve that combines the functions of a fill valve, vacuum breaker, and backflow preventer in one compact unit. It is designed for use in closed loop domestic hot and cold water systems, and is rated for a maximum pressure of 125 PSI. The MPV040-4 features a stainless steel body for corrosion resistance, and a polymer seal for durability and leak prevention. It also has a built-in check valve to prevent backflow, and a vacuum breaker to prevent siphoning. The MPV040-4 is easy to install and maintain, and is ideal for use in a variety of residential and commercial applications. Shop our HVAC supply store for the best prices and fast shipping!

Straight Pattern/Angle Pattern

The Plus Two Multi-Purpose Valve offers performance– low pressure drops that are equal to or better than any valve on the market today–and convenience: You can replace the stem seal packing under full system pressure. The Plus Two Multi-Purpose Valve is made of ductile iron with stainless steel and bronze fitted construction to provide years of trouble-free service. It is available in sizes ranging from 1 ½” through 14″, with flanged connections (1 ½”, 2″ and 2 ½” units are threaded connections).

Performance Data

Features

Applications

Taco The new Taco "Plus Two" Multi-Purpose Valve combines all the valvefunctions that are normally required on the discharge side of acentrifugal pump in a hydronic heating or cooling system into one body.It is a Shut-Off Valve, a Non-Slam Check Valve, a Balancing Valve, anda Flow Metering Valve, and now it is field convertible from a straightpattern to a 90 degree right angle pattern. In addition the new "PlusTwo" Multi-Purpose Valves have low pressure drops, equal to or betterthan any valve on the market today, and the stem seal packing can bereplaced under full system pressure.

Features:

• Horizontal or Vertical Installation
• Field Convertible to a Right Angle Valve
• Stem Seal Packing Replaceable Under Pressure
• Bronze Fitted Construction
• Five (5) Valves in One:
  - Shut Off Valve
  - Flow Control Valve (Globe Style)
  - Non Slam Check Valve
  - Flow Metering Valve
  - Straight Pattern Valve can be Converted to a Right Angle Pattern Valve

• Memory Indicator, Pointer & Scale
• Schrader Valve Metering Connections
• "O" Ring Sealed Valve Body
• Replaceable “Soft Seat”
• Low Pressure Drop (Equal to or Better than any Comparable Valve on the Market Today)
