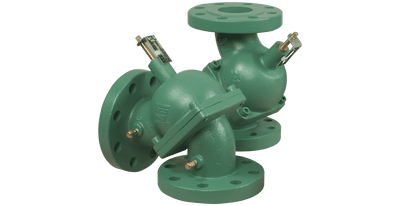

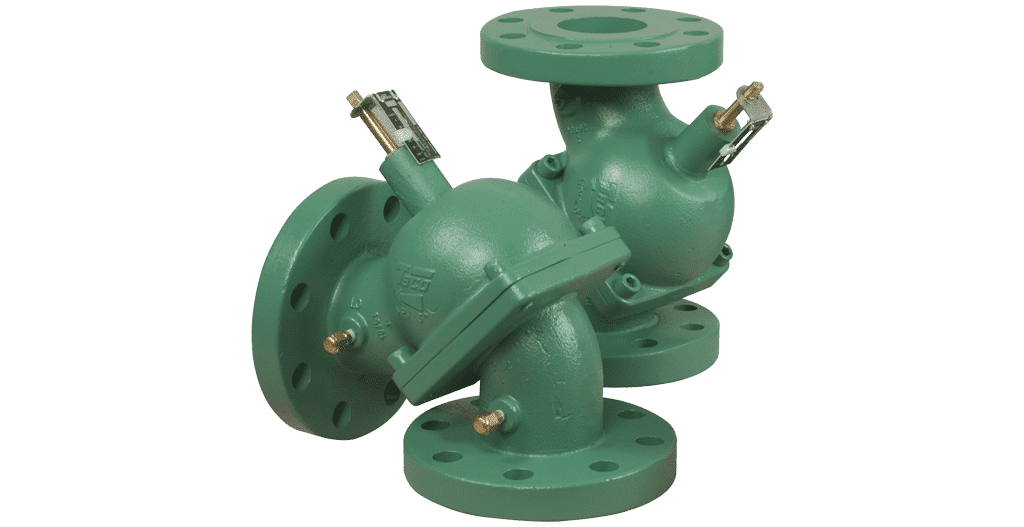

MPV030-4A | 3" Flanged Plus Two Class 250# Multi Purpose Valve (209 Cv) | Taco

3" 250# FLNG TRIPLE DUTY VLV: Taco MPV030-4A The Taco MPV030-4A is a 3" forged steel flanged triple duty valve designed for demanding industrial applications. It features a resilient seat for tight shut-off and a low-pressure drop, making it suitable for various fluids, including hot water, chilled water, and glycol solutions. This valve is constructed with a rugged cast iron body and a stainless steel stem for enhanced durability and corrosion resistance. Its flanged ends provide secure and leak-proof connections to piping systems. The triple duty design allows for on/off, bypass, and balancing operations, offering versatility and control in fluid systems. Specifications: - Size: 3" - Body Material: Cast Iron - Stem Material: Stainless Steel - Seat Material: Resilient - Pressure Rating: 250# - Temperature Rating: Up to 450°F - End Connections: Flanged - Media Compatibility: Hot Water, Chilled Water, Glycol Solutions - Operation: On/Off, Bypass, Balancing Applications: The Taco MPV030-4A triple duty valve is commonly used in industrial and commercial HVAC systems, plumbing systems, and process control applications. It is ideal for regulating flow, isolating equipment, and balancing fluid systems. Benefits: - Tight shut-off with resilient seat - Low-pressure drop for efficient flow - Rugged construction for durability and long life - Stainless steel stem for corrosion resistance - Flanged ends for secure and leak-proof connections - Triple duty design for versatile operation Shop our HVAC supply store for the best prices and fast shipping on the Taco MPV030-4A 3" 250# FLNG TRIPLE DUTY VLV and all your industrial valve needs!

Straight Pattern/Angle Pattern

The Plus Two Multi-Purpose Valve offers performance– low pressure drops that are equal to or better than any valve on the market today–and convenience: You can replace the stem seal packing under full system pressure. The Plus Two Multi-Purpose Valve is made of ductile iron with stainless steel and bronze fitted construction to provide years of trouble-free service. It is available in sizes ranging from 1 ½” through 14″, with flanged connections (1 ½”, 2″ and 2 ½” units are threaded connections).

Performance Data

Features

Applications

Taco The new Taco "Plus Two" Multi-Purpose Valve combines all the valvefunctions that are normally required on the discharge side of acentrifugal pump in a hydronic heating or cooling system into one body.It is a Shut-Off Valve, a Non-Slam Check Valve, a Balancing Valve, anda Flow Metering Valve, and now it is field convertible from a straightpattern to a 90 degree right angle pattern. In addition the new "PlusTwo" Multi-Purpose Valves have low pressure drops, equal to or betterthan any valve on the market today, and the stem seal packing can bereplaced under full system pressure.

Product Features:

• Horizontal or Vertical Installation
• Field Convertible to a Right Angle Valve
• Stem Seal Packing Replaceable Under Pressure
• Bronze Fitted Construction
• Five (5) Valves in One:
  - Shut Off Valve
  - Flow Control Valve (Globe Style)
  - Non Slam Check Valve
  - Flow Metering Valve
  - Straight Pattern Valve can be Converted to a Right Angle Pattern Valve

• Memory Indicator, Pointer & Scale
• Schrader Valve Metering Connections
• "O" Ring Sealed Valve Body
• Replaceable “Soft Seat”
• Low Pressure Drop (Equal to or Better than any Comparable Valve on the Market Today)
