MPV020-4 | 2" Threaded Plus Two Multi Purpose Valve (77 Cv) | Taco

2" NPT Triple Duty Valve (MPV020-4) by Taco Taco's 2" NPT Triple Duty Valve (MPV020-4) is a versatile and durable valve designed for industrial and commercial plumbing systems. This valve features a triple-duty design, combining a gate, globe, and check valve into a single unit, providing exceptional flow control and protection. Crafted from high-quality materials, the MPV020-4 valve boasts a durable cast iron body and a resilient EPDM seat disc, ensuring longevity and leak-proof operation. Its NPT threaded connections provide secure and reliable installation into 2-inch piping systems. The valve's gate design allows for precise flow regulation, while the globe design provides tight shut-off capabilities. Additionally, the integrated check valve prevents backflow and ensures proper flow direction. Taco's MPV020-4 valve is ideal for a wide range of applications, including municipal water systems, industrial process lines, and commercial HVAC systems. Its compact design and rugged construction make it a reliable choice for demanding environments. Choose our HVAC supply store for the best prices and fast shipping on your industrial plumbing needs.

Straight Pattern/Angle Pattern

The Plus Two Multi-Purpose Valve offers performance– low pressure drops that are equal to or better than any valve on the market today–and convenience: You can replace the stem seal packing under full system pressure. The Plus Two Multi-Purpose Valve is made of ductile iron with stainless steel and bronze fitted construction to provide years of trouble-free service. It is available in sizes ranging from 1 ½” through 14″, with flanged connections (1 ½”, 2″ and 2 ½” units are threaded connections).

Performance Data

Features

Applications

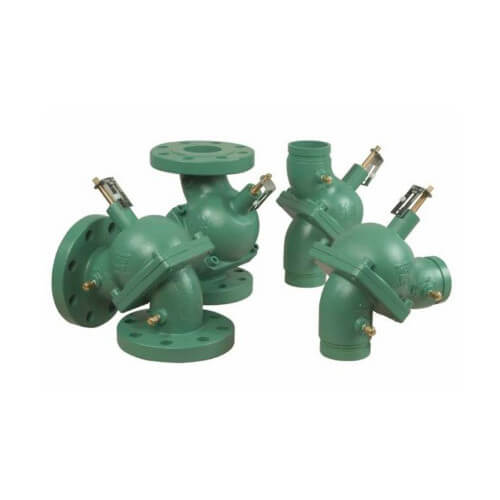

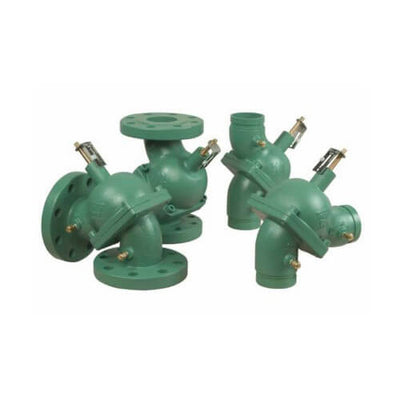

Taco The new Taco "Plus Two" Multi-Purpose Valve combines all the valve functions that are normally required on the discharge side of a centrifugal pump in a hydronic heating or cooling system into one body. It is a Shut-Off Valve, a Non-Slam Check Valve, a Balancing Valve, and a Flow Metering Valve, and now it is field convertible from a straight pattern to a 90 degree right angle pattern. In addition the new "Plus Two" Multi-Purpose Valves have low pressure drops, equal to or better than any valve on the market today, and the stem seal packing can be replaced under full system pressure.

Product Features

• Horizontal or Vertical Installation
• Field Convertible to a Right Angle Valve
• Stem Seal Packing Replaceable Under Pressure
• Bronze Fitted Construction
• Five (5) Valves in One:
  - Shut Off Valve
  - Flow Control Valve (Globe Style)
  - Non Slam Check Valve
  - Flow Metering Valve
  - Straight Pattern Valve can be Converted to a Right Angle Pattern Valve

• Memory Indicator, Pointer & Scale
• Schrader Valve Metering Connections
• "O" Ring Sealed Valve Body
• Replaceable “Soft Seat”
• Low Pressure Drop (Equal to or Better than any Comparable Valve on the Market Today)
